LoRa Module Selection Guide: Core Advantages of the RF3060 and LoRa-CC68 Modules

In the wireless communication module market, low-power and long-range data transmission solutions based on LoRa technology are being widely adopted in smart cities, agricultural monitoring, smart metering, industrial IoT, and other fields. Two representative LoRa modules from NiceRF—the RF3060 (based on ChirpIoT modulation technology) and the LoRa-CC68 (based on the Semtech LLCC68 chip)—have earned a strong reputation and broad applicability across the industry. This article focuses on the technical strengths and application highlights of both modules, helping users make targeted selections based on specific project needs.

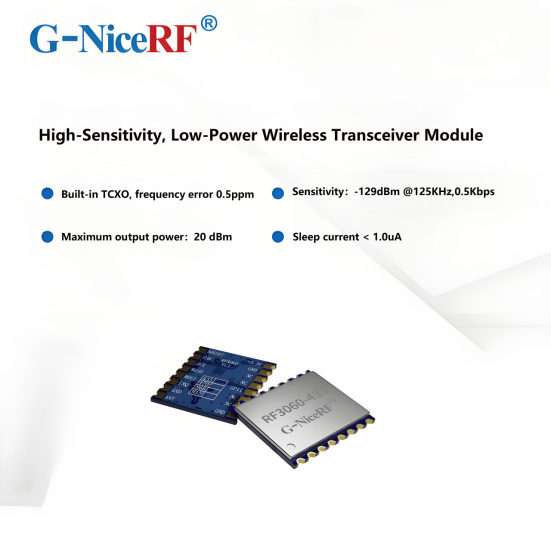

RF3060 Module: A Benchmark for Long Range, High Stability, and Ultra-Low Power Consumption

The RF3060 module offers several core advantages:

Long-Range Communication with Strong Stability
The RF3060 adopts ChirpIoT modulation and demodulation technology, featuring a sensitivity of up to -129 dBm @125 kHz, 500 bps, and a maximum output power of 20 dBm. This delivers an industry-leading link budget, making it ideal for scenarios demanding highly reliable, ultra-long-distance communication—such as environmental monitoring in mountainous areas, remote data collection in farmlands, or remote meter reading in underground parking facilities.
In open environments, the link budget directly determines the achievable range in low-power mode. RF3060’s communication stability ensures a consistently strong connection even in complex and dynamic environments.

Built-in High-Precision TCXO for Superior Frequency Stability
The RF3060 integrates a high-precision TCXO (±0.5 ppm), significantly enhancing frequency stability under conditions of large temperature fluctuations or prolonged operation. This makes it well-suited for use in sectors like industrial automation, smart agriculture, and smart healthcare, where communication reliability is critical.

The presence of the TCXO allows the module to achieve minimal frequency deviation across multiple frequency bands (such as 433/470/868/915 MHz), thereby further enhancing interference resistance and receiver sensitivity, and improving overall communication efficiency of the system.

Ultra-Low Power Consumption—Ideal for Battery-Powered Devices
The RF3060 is highly optimized for low-power applications:

Receiving current is as low as 6 mA (in DCDC mode)

Sleep current is below 1.0 μA

Support for Multiple Spreading Factors and Adaptive Functionality
The RF3060 supports SF5 to SF9 and features automatic spreading factor recognition. This enables the module to intelligently adjust its data rate according to changing network conditions, balancing transmission range and power efficiency to enhance overall communication performance.

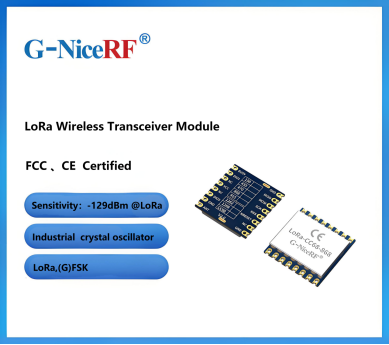

LoRa-CC68 Module: A Fusion of High Output Power, Platform Compatibility, and Certification Support
In contrast, the LoRa-CC68 module offers unique system-level advantages, making it especially suitable for scenarios with stringent requirements for certification, platform compatibility, and industrial-grade design.

Higher Output Power for Stronger Signal Penetration
The LoRa-CC68 module supports up to 22 dBm (160 mW) output power, making it ideal for use in environments that require strong signal penetration—such as smart meters installed inside buildings, industrial meter reading systems, or wireless node deployments in densely built urban villages.
Higher output power translates to stronger signal penetration, which is particularly beneficial for maintaining stable communication in complex urban electromagnetic environments.

Dual Modulation Modes: LoRa + FSK
The LoRa-CC68 module supports both LoRa and (G)FSK modulation, offering greater flexibility for adapting to different communication protocols and data rate requirements. For example, LoRa modulation can be used for low-speed, high-reliability applications, while FSK modulation is better suited for high-speed, short-range, and low-power scenarios—enhancing the versatility and compatibility of the protocol stack.

LoRa data rate: 1.76 – 62.5 Kbps

FSK data rate: 0.6 – 300 Kbps

Industrial-Grade Design with Customization Support
The module features an industrial-grade high-precision crystal oscillator, offering excellent temperature drift characteristics and long-term stability, allowing reliable operation in harsh environments ranging from -40°C to +85°C.
Its frequency coverage includes 433/470/868/915 MHz and can be customized from 150 to 960 MHz to meet regulatory requirements in different countries and regions.

Certified for Global Markets with Reusable Compliance
The LoRa-CC68 module is certified under CE (868 MHz) and FCC (915 MHz) standards and offers a TCXO version for applications requiring greater frequency accuracy. For device manufacturers needing full-product certification, leveraging the module’s existing certification documentation can significantly reduce time and cost, accelerating time-to-market.
