Recommended Communication Modules: High Sensitivity | Low Power Consumption | Compact Size | Fully Meet Various Application Needs

RF3060 is a module based on the low-power, long-range wireless transceiver chip that uses ChirpIoTTM modulation and demodulation technology. It supports half-duplex wireless communication and utilizes a TCXO crystal oscillator, offering high anti-interference capability, high sensitivity, low power consumption, and ultra-long transmission range. It features a maximum sensitivity of -129dBm and a maximum output power of 20dBm, providing an industry-leading link budget, making it the best choice for long-distance transmission and applications with high reliability requirements.
RF3060 strictly uses lead-free technology for production and testing, complying with RoHS and Reach standards.

Performance Parameters Meet Long-Range, Low-Power Requirements Operating Voltage Range: 2.0-3.6V

l   requency Range:433/470/868/915 MHz

l   Sensitivity：-129dBm @125KHz,0.5Kbps

l   Maximum output power：20 dBm

l Low receive current: 6mA@DCDC

l Sleep current < 1.0uA

l Data transfer rate: 0.5-59.9Kbps @LoRa

l Supports bandwidth: 125/250/500KHz

l Supports SF factor: 5–9, automatic recognition

l Supports data rates: 4/5, 4/6, 4/7, 4/8

l Supports CAD function

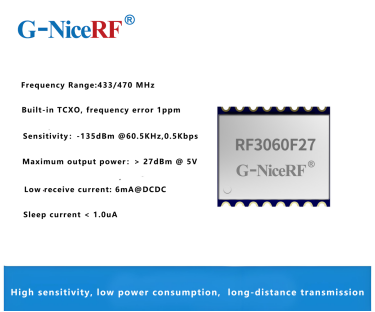

Communication Range: Under the same conditions (20dBm transmit power, 125kHz bandwidth), the module achieves a communication distance of over 4–5 kilometers in open environments. The RF3060F27 maintains the same package size and pin layout as the RF3060, but offers nearly double the range under identical environmental and parameter settings, making it more suitable for IoT scenarios requiring extended transmission distances.

Interference Resistance: The RF3060 series modules feature a built-in dynamic channel detection algorithm, providing excellent interference recognition and avoidance capabilities. Even in densely networked environments with multiple nodes, stable communication is maintained. Combined with CAD (Channel Activity Detection) functionality, the module can quickly sense channel activity, improve channel utilization, and effectively avoid co-channel interference and data collisions.

Sleep Power Consumption: In sleep mode, the RF3060 module demonstrates outstanding energy-saving performance, with standby current as low as 5mA, significantly reducing power consumption. This is especially advantageous for battery-powered devices such as smart smoke detectors and smart agriculture sensors, greatly enhancing their battery life.

Flexible Software and Hardware Configuration: The module supports flexible configuration of various parameters including frequency band, spreading factor, data rate, and bandwidth. Users can optimize combinations based on specific application needs, achieving a balance between transmission distance, power consumption, and data rate.

Low Data Rate Mode: The RF3060 series is a low data rate wireless module based on LoRa modulation technology, supporting data transmission rates from 5 to 59.9 Kbps. It offers flexible configuration according to specific application scenarios and delivers ultra-long-range, low-power, and highly reliable communication performance.

Compact Structure & Multiple Package Options: The RF3060 series is available in three different package sizes: RF3060, RF3060F27, and Mini3060, all featuring compact designs. Among them, the Mini3060 is the smallest and is ideal for space-constrained embedded devices. The RF3060 and RF3060F27 share the same dimensions, but the RF3060F27 offers roughly twice the communication range of the RF3060, providing a more competitive solution for long-distance transmission.

Versatile for Various Applications: With its long-range communication capability, ultra-low power consumption, compact size, and strong anti-interference performance, the RF3060 series is widely applicable in scenarios such as smart metering, environmental monitoring, smart cities, agricultural monitoring, security deployment, and industrial control.

The RF3060 series wireless modules integrate advanced ChirpIoT modulation technology, ultra-low power consumption, long-distance communication capability, and high pin compatibility, making them an ideal choice for low-data-rate, highly reliable communication applications. With the combined advantages of seamless compatibility, performance optimization, and reduced costs, the RF3060 series stands out in the IoT wireless communication field, delivering a high-quality solution that balances performance and cost-effectiveness.
