RF2401F20 : nRF24L01+ 2.4GHz CE-RED & FCC ID & IC ID & TELEC Certified Original Nordic RF Module

2.4 GHz RF module RF2401F20 has obtained many certifications such as CE-RED, FCC ID, IC ID(Canada certification), TELEC(Japan certification) and RoHS.
Our RF2401F20 module uses the original imported nRF24L01+ device from NORDIC, which is a highly integrated 2.4GHz wireless ISM band wireless transceiver chip. The extremely low sensitivity (-102 dBm), coupled with the industry-leading output power of +20dBm, ensures extended range and improved link performance.
RF2401F20 uses lead-free process for production and testing strictly, and meets RoHS and REACH standards.

DOWNLOAD

Features of nRF24L01+ module RF2401F20

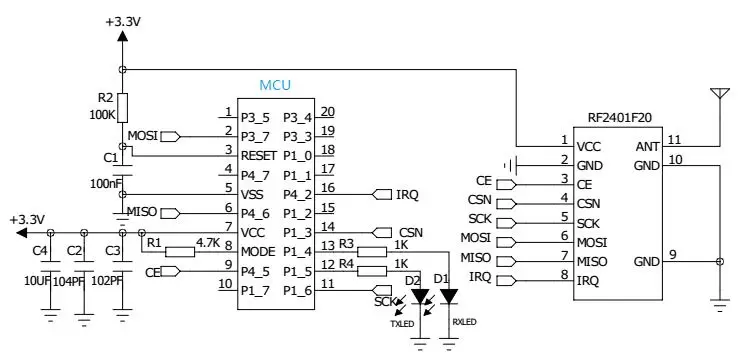

Application circuit of 2.4GHz original Nordic RF module RF2401F20

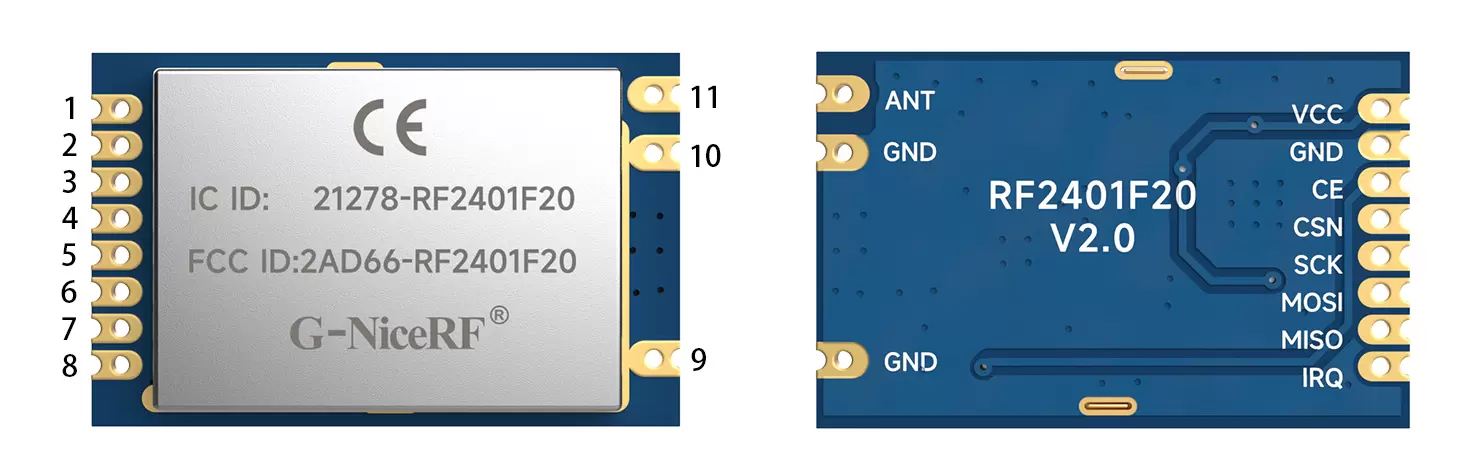

Pin definition of 2.4GHz original Nordic RF module RF2401F20 with multiple certifications

Pin NO.	Pin name	Description
1	VCC	Positive power supply（1.9-3.6V）
2	GND	Connect the negative pole of the power supply
3	CE	Chip select to enable transmission or reception
4	CSN	SPI chip select
5	SCK	Serial clock for SPI interface
6	MOSI	SPI slave data input
7	MISO	SPI slave data output
8	IRQ	Programmable interrupt pin, active low
9	GND	Connect the negative pole of the power supply
10	GND	Connect the negative pole of the power supply
11	ANT	Connect with 50ohm coaxial antenna

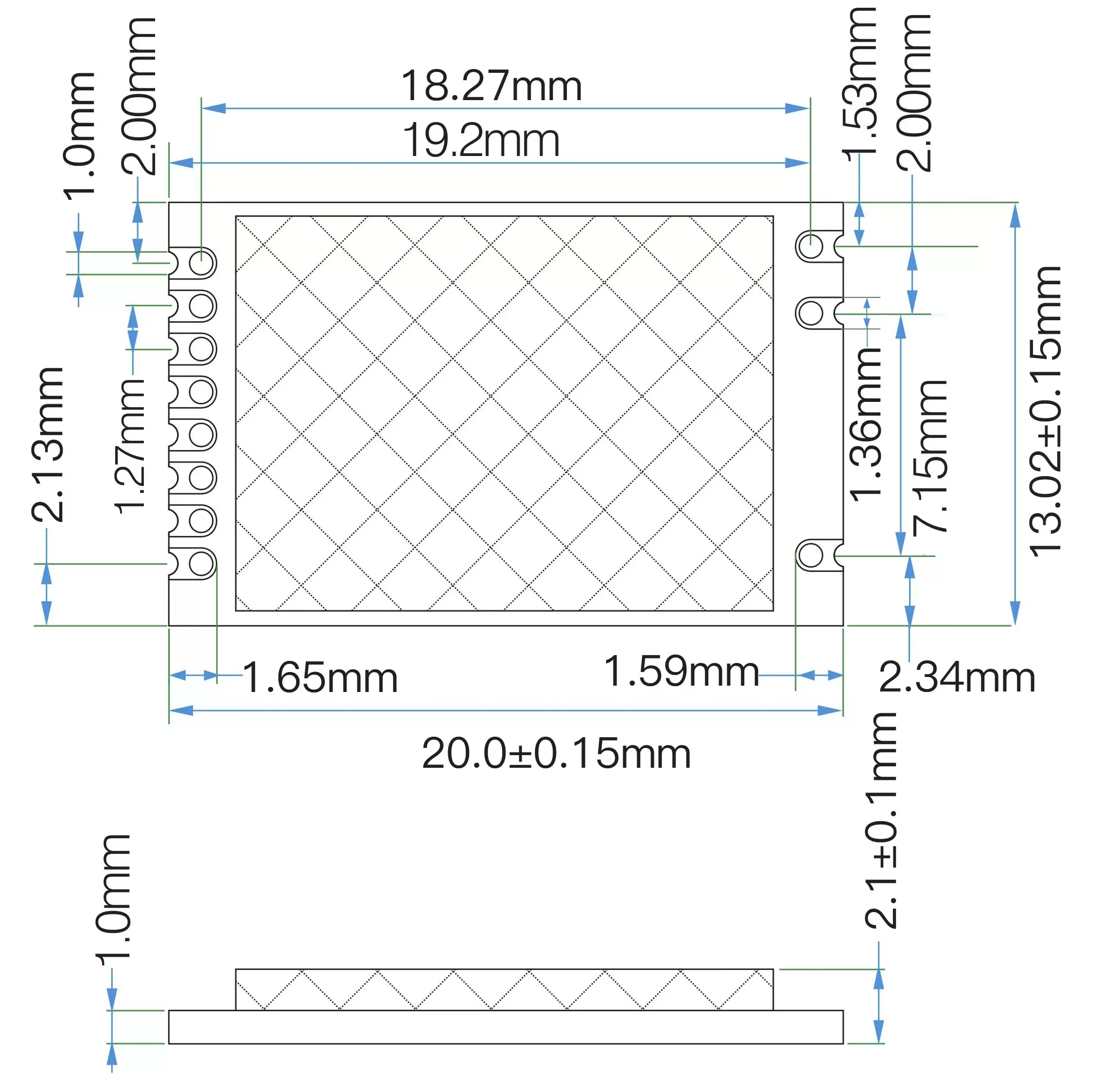

Mechanical dimensions of 2.4GHz original Nordic RF module RF2401F20
