SA618F30-DZ : 1W 8 Dual Antenna Multi-Level Relay 8K Sampling Rate Audio Module Full-Duplex With ESD Protection

  • The SA618F30-DZ is based on our company's SA618F30 module, with a design that separates the transmission and reception antennas. Additionally, the TXEN pin is externally extended, making it more convenient for customers to add an external radio frequency power amplifier. This allows for higher transmission power and enhanced communication distance. The module integrates a high-speed microcontroller, high-performance RF transceiver chip, and RF power amplifier. It also provides a standard serial port for communication with the module, enabling easy and quick setting of relevant parameters and control of the transceiving functions. By simply connecting an audio amplifier, microphone, and speaker to this module, it can function as a compact walkie-talkie. The simplified interface and ultra-small size of the module allow for its wide application and easy integration into various handheld devices, thereby improving the overall performance of the end product.
  • The SA618F30-DZ is strictly manufactured and tested using lead-free processes, complying with RoHS and Reach standards.

Parameter

Test Conditions

Min.

Typ.

Max.

Unit

Operating voltage



3.3

4.2

5.5

V

working temperature



-30

25

70

Current consumption

Sleep current





10

20

uA

RX current

@ No audio output



50

55

mA

@8Ω,1W audio output







TX current

4v,@30dBm



450

550

mA

RF parameter

Operating frequency

UHF

410



490

MHz

Customizable frequency



150



960

MHz

Default frequency value for 16 channels

UHF

( 1MHz interval)

440.125



455.125

MHz



Transmit power

@5V

16



32

dBm

Bandwidth(BW)





500



KHz

Receiving sensitivity





-117



dBm

Audio parameters

Modulation sensitivity





10

100

mV

Receive signal-to-noise ratio(SNR)





90



dB

Frequency response



60



3800

Hz

Audio output(line out)

Load 16 Ω





40

mW

Delay parameters

2 channels

80

100

120

ms

3 channels

120

160

180

ms

4 channels

160

200

240

ms

6 channels

240

300

360

ms

8 channels

320

400

480

ms



Type wireless audio
Output Power 1 W

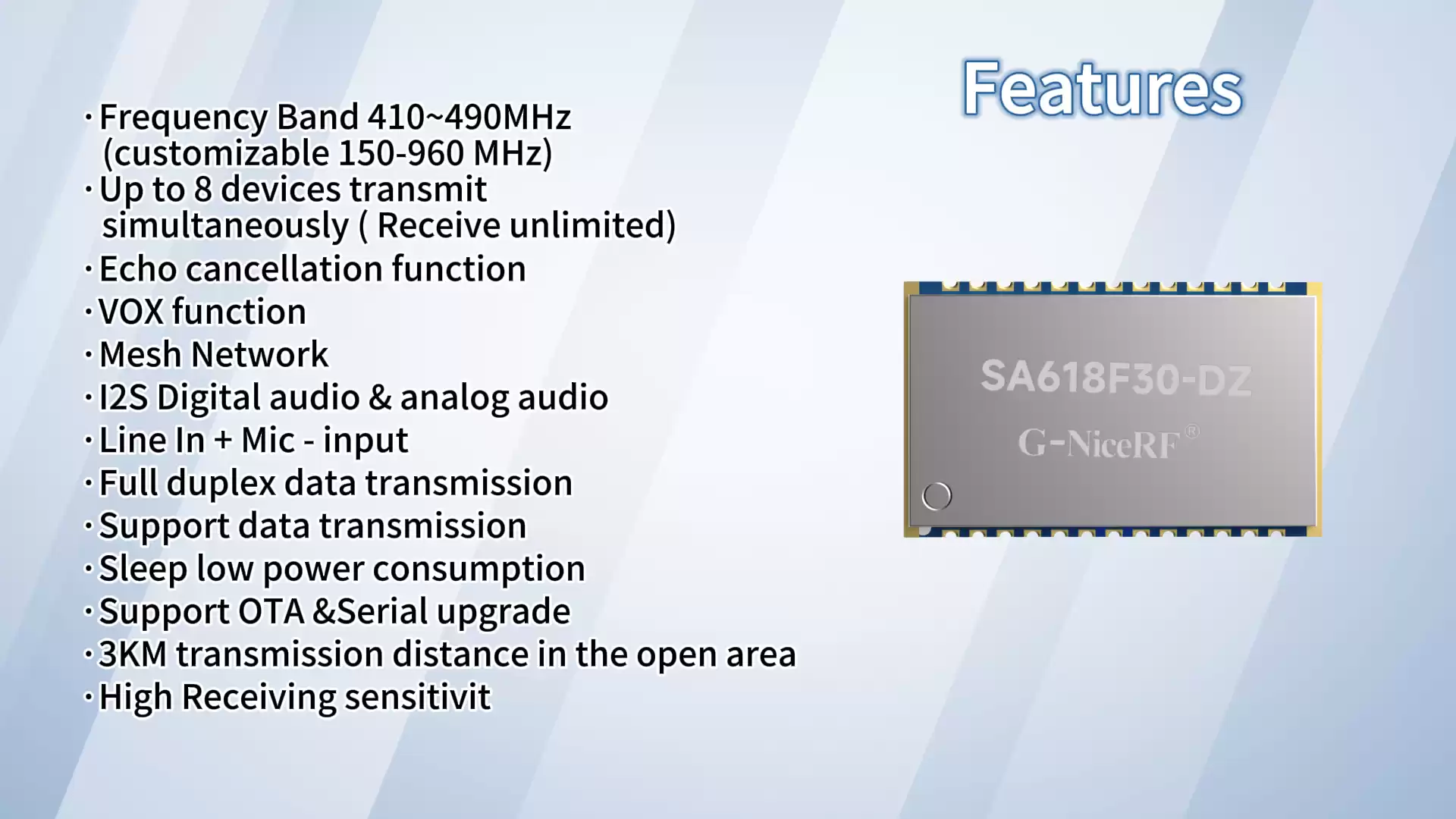

Features of SA618F30-DZ wireless audio module

  • Frequency Band 410~480MHz (customizable 150-960 MHz)
  • Up to 8 devices transmit simultaneously ( Receive unlimited)
  • Echo cancellation function
  • VOX function
  • Mesh Network
  • I2S Digital audio & analog audio
  • Line In + Mic - input
  • Full duplex data transmission
  • Support data transmission
  • Sleep low power consumption
  • Support OTA &Serial upgrade
  • 3KM transmission distance in the open area
  • High Receiving sensitivity:-117 dBm
  • High integration and small size

Applications of SA618F30-DZ wireless audio module

  • High-end Full-duplex Walkie-talkie
  • Conference Telephone System
  • Headset Walkie-talkie
  • Security for Special Scenarios
  • Building and Residential Area Security Systems
  • Special Occupation Communication Walkie-talkie

Block Diagram

  • Analog input analog output application circuit

Analog input analog output application circuit

  • I2S input and output application circuit

I2S input and output application circuit

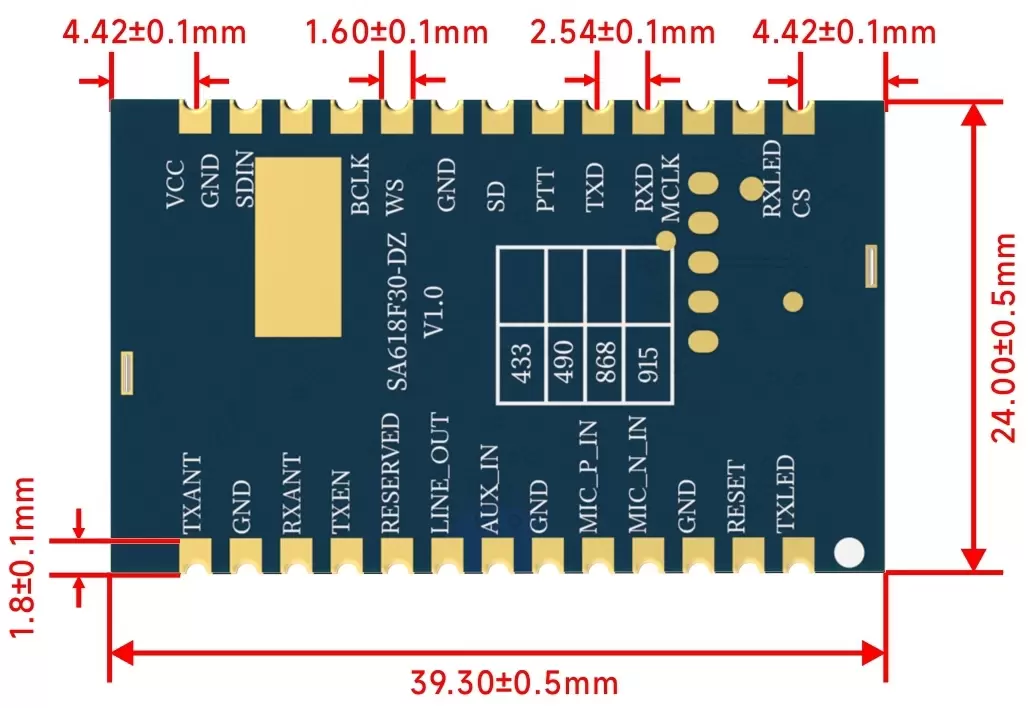

Pin definition



Pin NO.

Pin name

I/O

Description

1

TXLED

O

Transmitting indicator, connected with external led,  turn on by low level output when data or voice is transmitting, (suggest 1K ohm resistor for current limitation)

2

RESET

I

Module reset pin, externally pull down for more than 5ms will reset the module

3,6,10,

12,14,15,19

GND



Connect to power negative

4

MIC_N_IN

I

Negative electrode of external microphone, serial connected with 220 nH inductance, refer to below typical circuit.

5

MIC_P_IN

I

Positive electrode of external microphone, serial connected with 220 nH inductance, refer to below typical circuit.

7

AUX_IN

I

Line in  & Microphone input

8

LINE_OUT

O

Connected with 16 Ω earphones

9

RESERVED



NC

10

TXEN

O

Transmit enable pin, outputs high level (3.3V) when transmitting, low level when receiving

11

RXANT

O

RF signal input for reception, connect to 50-ohm antenna

13

TXANT

O

RF signal output for transmission, connect to 50-ohm antenna

14

VCC



Power supply ( 3.3 – 5.5V )

16

SDIN

I

Connected with External I2S device, ( 0 – 3.3V )

17

BCLK

O

18

WS

O

20

SD

O

21

PTT

I

Press to talk, pull down  to enter transmission mode, pull high or leave open to enter receive mode, pull-up internally,

22

TXD

O

Serial communication

23

RXD

I

Serial communication

24

MCLK

O

Connected with External I2S device (0-3.3V)

25

RXLED

O

Receiving indicator, connected with external led,  turn on by low level output when data or voice received, (suggest 1K ohm resistor for current limitation)

26

CS

I

Floating input,  low level to enter sleep
