DMR828S : 2W DMR Tier II Walkie Talkie Module With AMBE++
Type: DMR Walkie Talkie
Certification: Others
Output Power: 500mW,2W
Size (mm):65.84*38.88
| Parameters | Test condition | Min. | Typ. | Max | Unit | |||
| Voltage range | 3.3 | 4.2 | 4.5 | V | ||||
| Operating Temperature | -20 | 25 | 60 | ℃ | ||||
| Frequency range | @UHF | 400 | 470 | MHz | ||||
| @VHF | 134 | 174 | MHz | |||||
| @350 | 320 | 400 | MHz | |||||
| Start time | 2000 | ms | ||||||
| Uart baud rate | 57600 | bps | ||||||
| Current Consumption | ||||||||
| Sleep current | CS pulled low for 3 seconds | < 55 | uA | |||||
| Rx current | <135 | mA | ||||||
| Tx current (high power) | @VCC=4.2V, 2w analog | <1300 | mA | |||||
| @VCC=4.2V, 2w digital | <1000 | mA | ||||||
| Tx current (low power) | @VCC=4.2V, 0.5w analog | <650 | mA | |||||
| @VCC=4.2V, 0.5w digital | <500 | mA | ||||||
| RF Parameters | ||||||||
| Tolerance of frequency | 1 | 1.5 | ppm | |||||
| Modulation sensitivity | 1.5KHz/2.5KHz frequency offset (N/W) | 6 | 7 | 12 | mv | |||
| Adjacent-channel power | @12.5K offset | -60 | -62 | dBm | ||||
| Mic input voltage | 0.1 | 1.6 | Vpp | |||||
| CTCSS modulation frequency offset | 0.35 | 0.4 | 0.6 | KHz | ||||
| Modulation characteristics | 300Hz | -13 | -11 | -9 | dB | |||
| 500Hz | -9 | -6 | -5 | dB | ||||
| 1000Hz | -3 | 0 | 1 | dB | ||||
| 2000Hz | 3 | 6 | 7 | dB | ||||
| 3000Hz | 5 | 7 | 11 | dB | ||||
| Rx Parameters | ||||||||
| Sensitivity | Analog (12db SNR) | -120 | dBm | |||||
| Receiving BER(DMR modulation) | @ -118dBm | 5 | % | |||||
| Audio output amplitude | 500 | mV | ||||||
| Audio Output impedance | 30 | KOhm | ||||||
| Adjacent channel selectivity | Offset:+12.5KHz | 60 | dB | |||||
| Offset:+12.5KHz | ||||||||
| Type | DMR walkie talkie |
| Output Power | 2W |
| Certification | CE-RED, FCC ID |

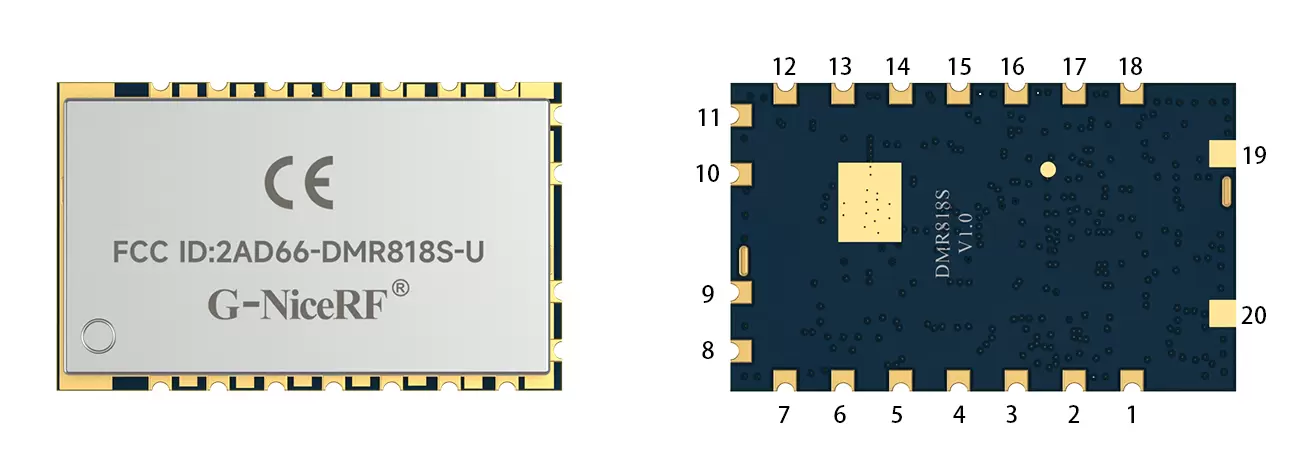

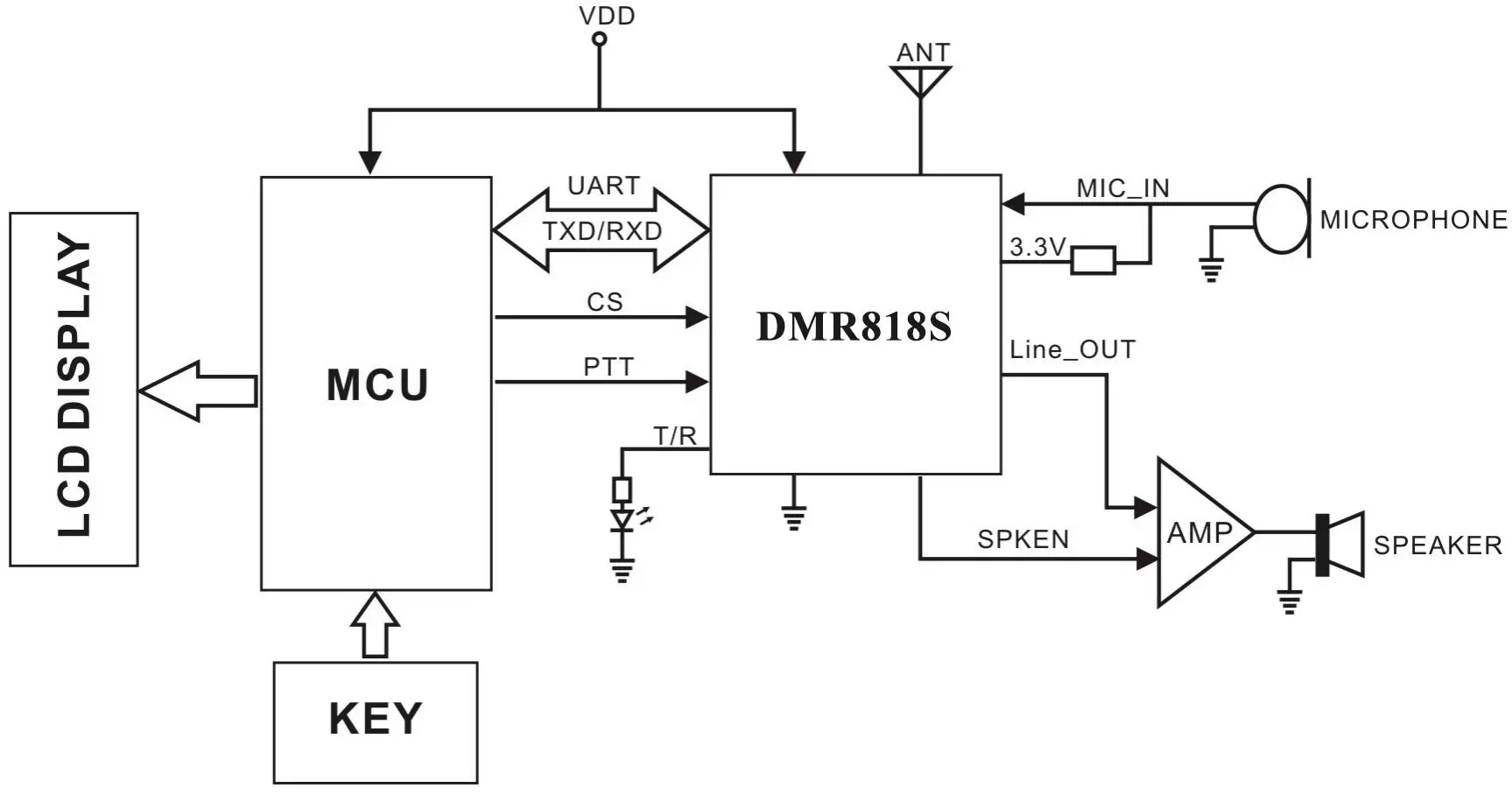

| Pin NO. | Pin name | I/O | Level standard | Description |
| 1 | MIC_IN | I | Microphone or line in | |
| 2 | UART-TX | O | 0-3.3V | UART-TXD |
| 3 | UART-RX | I | 0-3.3V | UART-RXD |
| 4, 12 | NC | |||
| 5 | HST_TXD | O | 0-3.3V | Transmit data pin (for upgrading program) |
| 6 | HST_RXD | I | 0-3.3V | Receive data pin (for upgrading program) |
| 7 | ANT | connect 50 ohm antenna | ||
| 8, 9, 10 | GND | - | Ground | |
| 11 | VCC | - | 0-4.5V | External and Positive supply 3.3~5V |
| 13 | CS | I | 0-4.5V | High level for normal working, leave open or pull low to enter sleeping mode |
| 14 | PTT | I | 0-3.3V | Module Input, Transmitting/receiving control, pull low to force the module to enter TX state; pull high for Rx state |
| 15 | +3.3V | - | 3.3V output, connect to 50mA | |
| 16 | LINE_OUT | O | Audio output | |
| 17 | T/R | O | 0-3.3V | Module Output, status of Transmitting/receiving, High for TX and low for Rx |
| 18 | SPKEN | O | 0-3.3V | Audio amplifier control |
| 19, 20 | GND | - | Ground |
