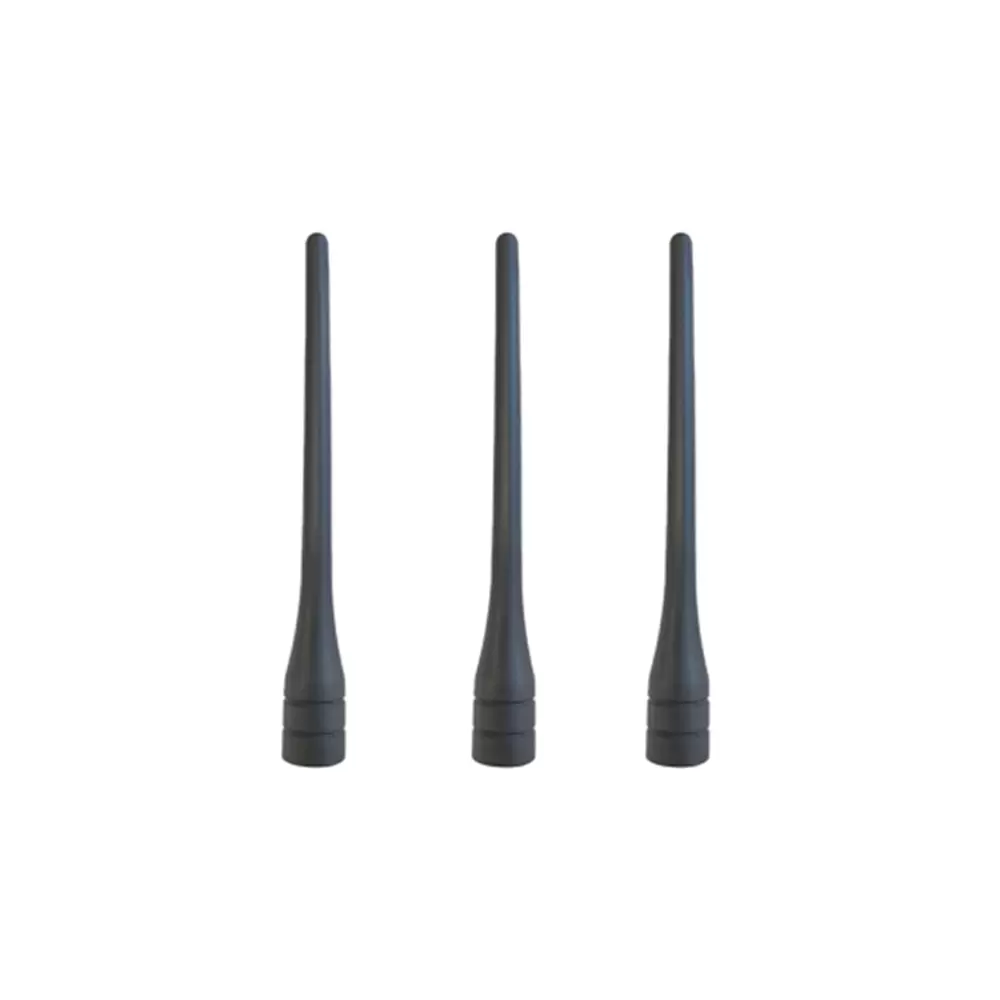

SW210-ZB136:190-225MHz Straight Rod Antenna
Type: Rod
Frequency: Others
Gain: 0.5~2.15dBi
Size(mm): 100~150
Material&Technology: Others
Size (mm):136.5 mm
HOME > PRODUCTS > RF ANTENNAS > SW240-ZB144:225-260MHZ STRAIGHT ROD ANTENNA

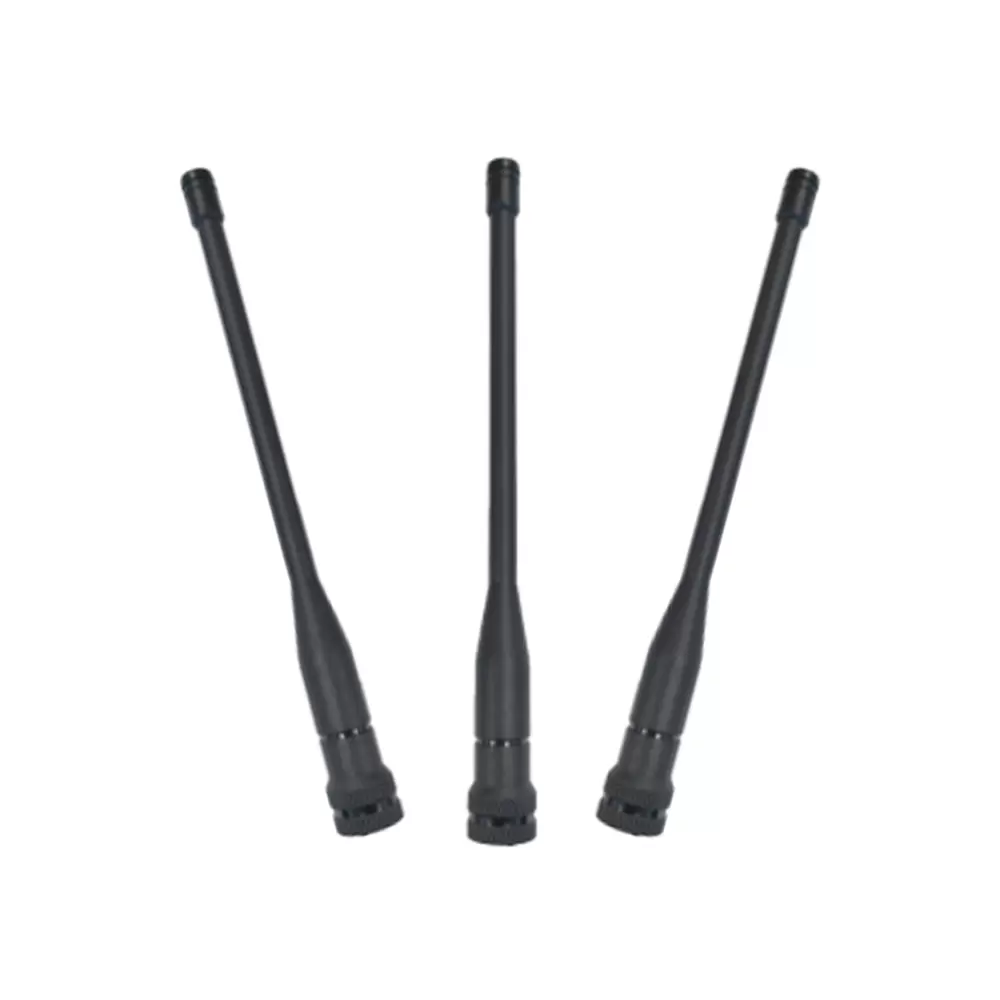

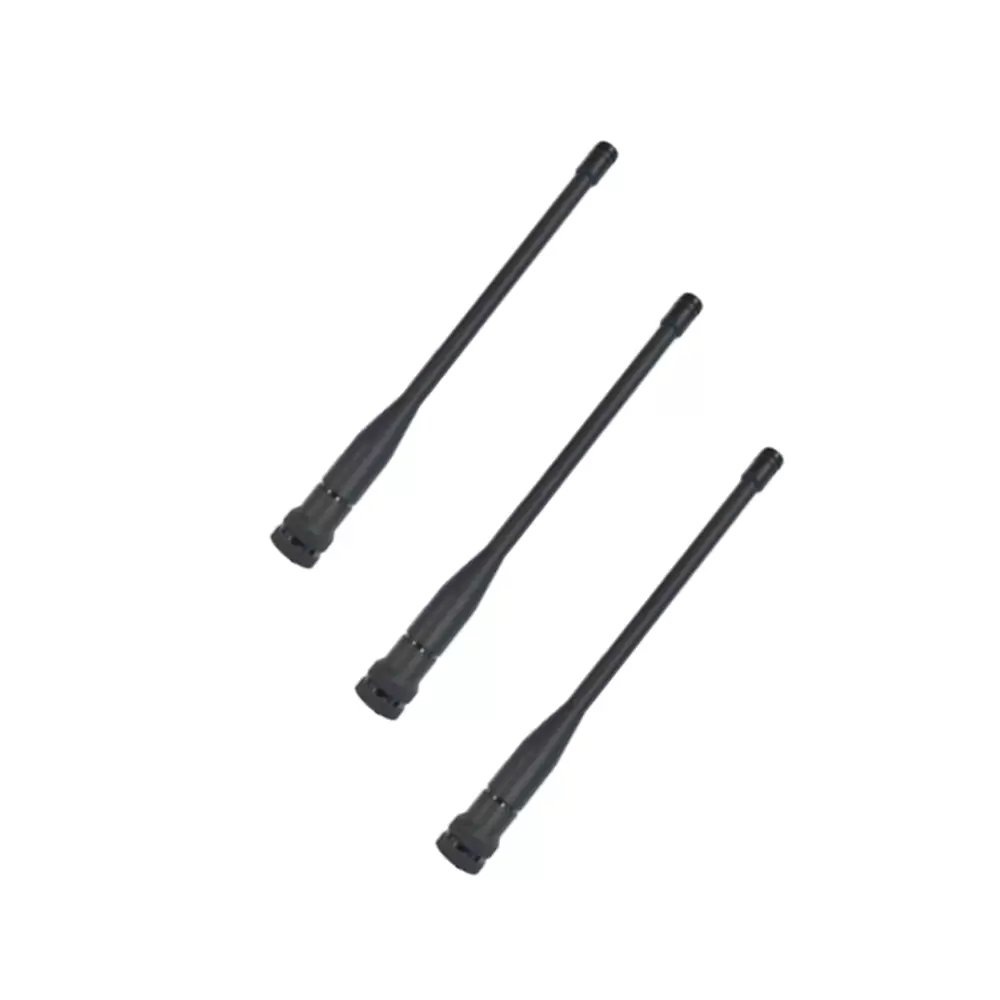

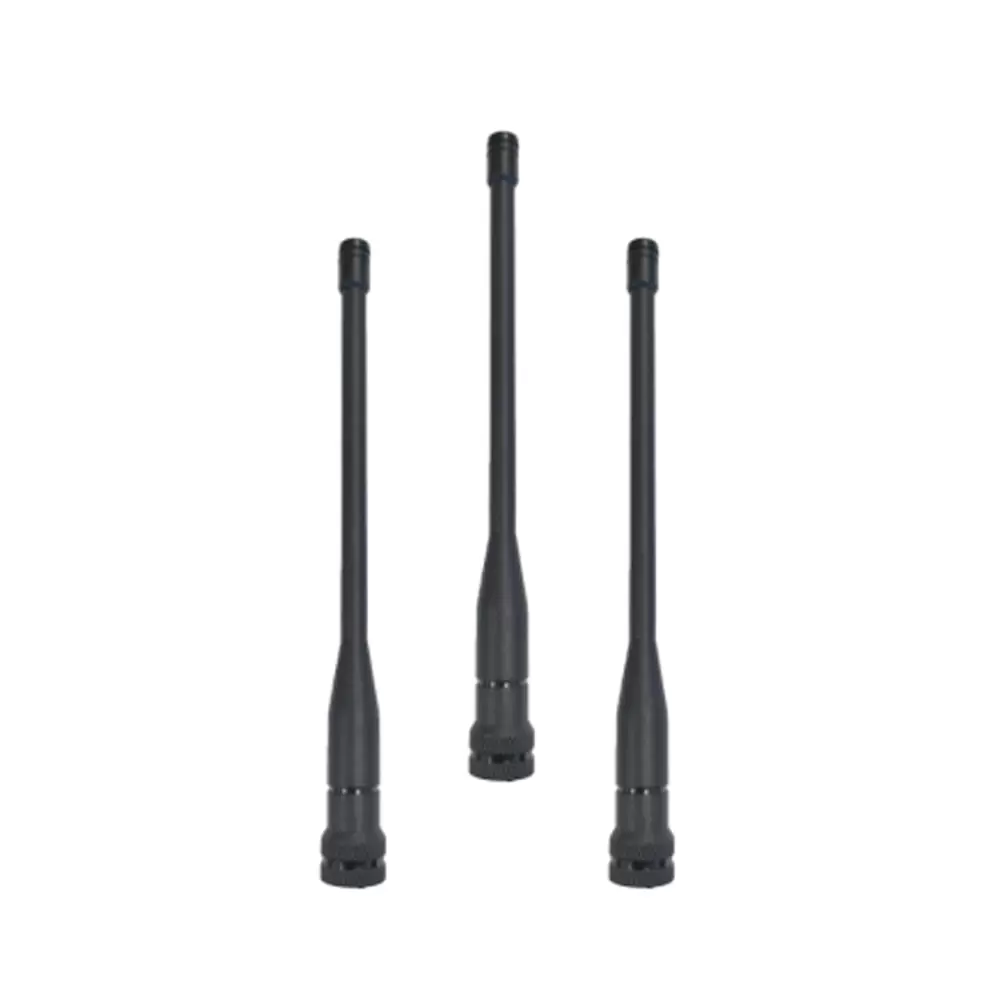

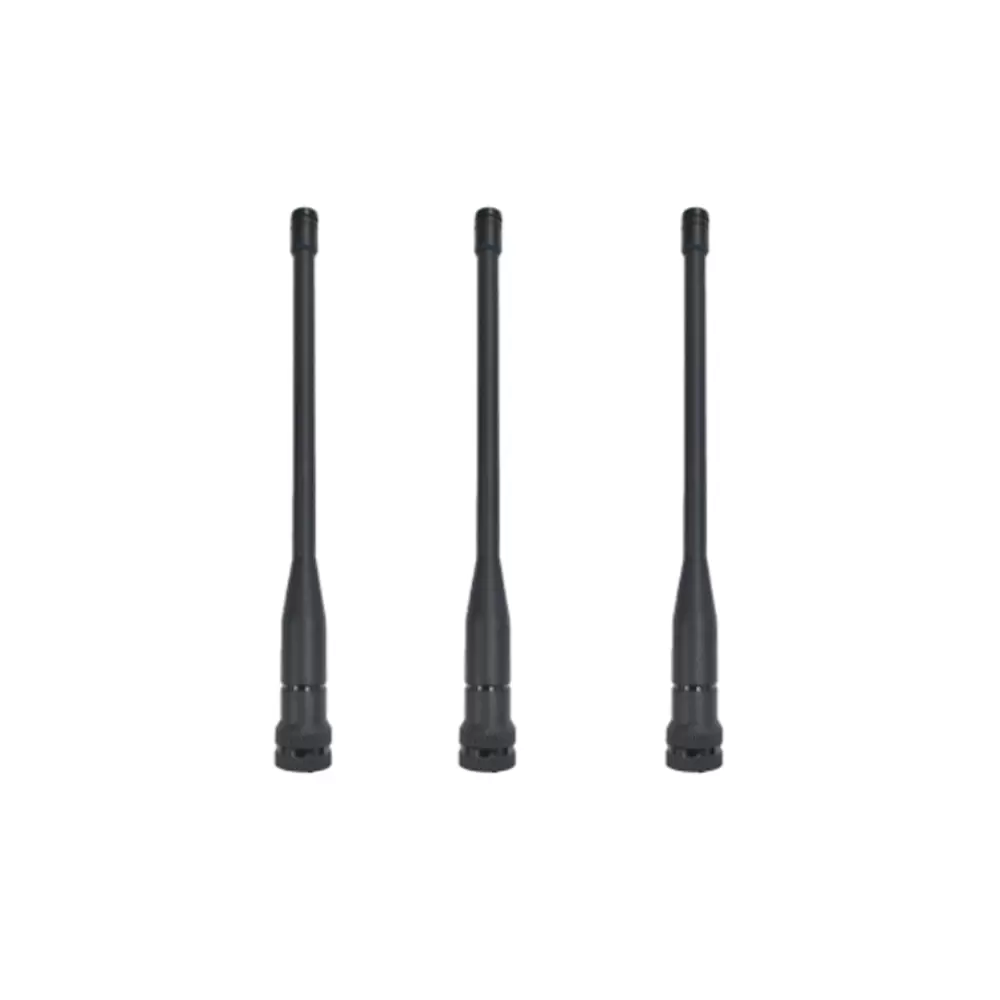

SW240-ZB144:225-260MHz Straight Rod Antenna
The SW240-ZB144 is a VHF omnidirectional straight rod antenna operating in the 225–260 MHz frequency band, with a gain of 2.15 dBi and an SMA connector, suitable for wireless communication and telemetry systems.
Technical Parameter
Frequency Range: 225-260 MHz
VSWR: ≤1.5
Gain: 2.15 dBi
Input impedance: 50 Ω
Interface: SMA-J
Working Temperature: -40~+65°C
Antenna Color: Black
Polarization: Vertical
Radiation Pattern: Omnidirectional
Max power: 5W
Antennas have been tested using a network analyzer in a simulated wireless transmission environment.
