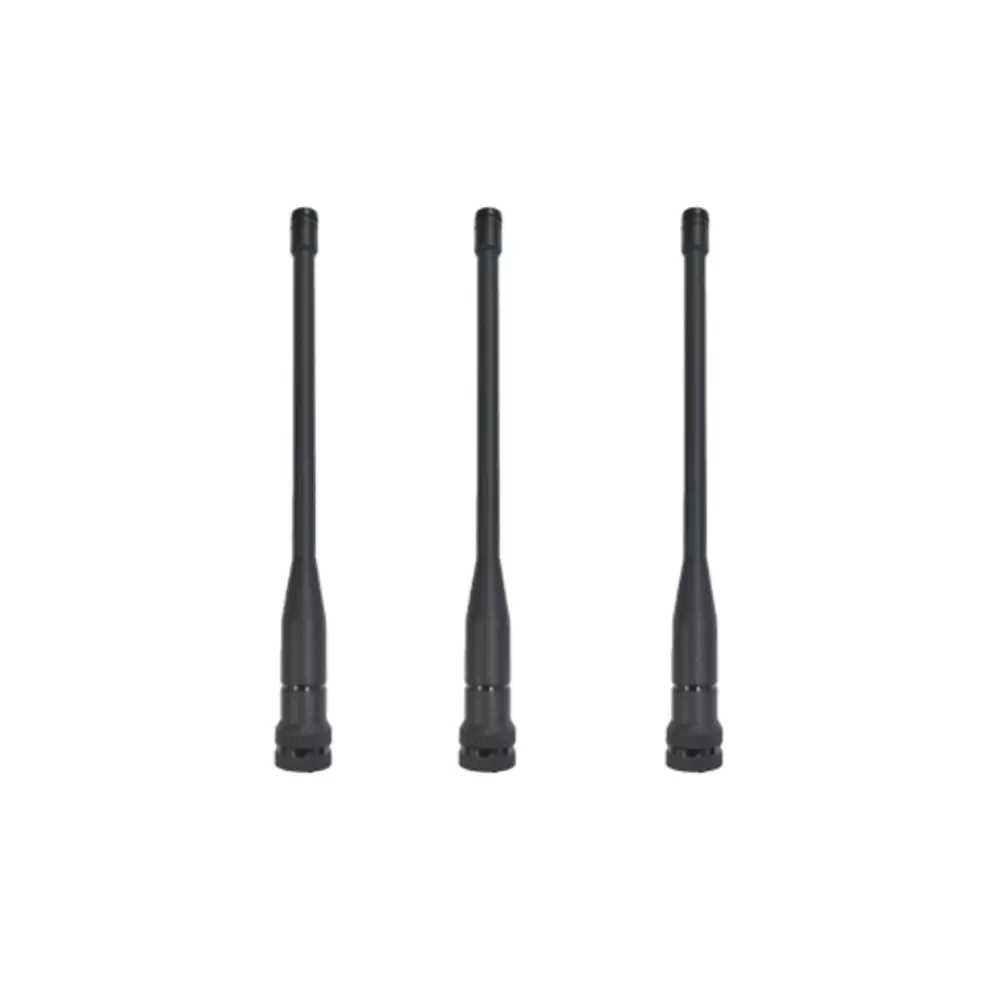

SW240-ZB144:225-260MHz Straight Rod Antenna
Type: Rod
Frequency: Others
Gain: 0.5~2.15dBi
Size(mm): 100~150
Material&Technology: Others
Size (mm):144 mm
HOME > PRODUCTS > RF ANTENNAS > SW210-ZB136:190-225MHZ STRAIGHT ROD ANTENNA

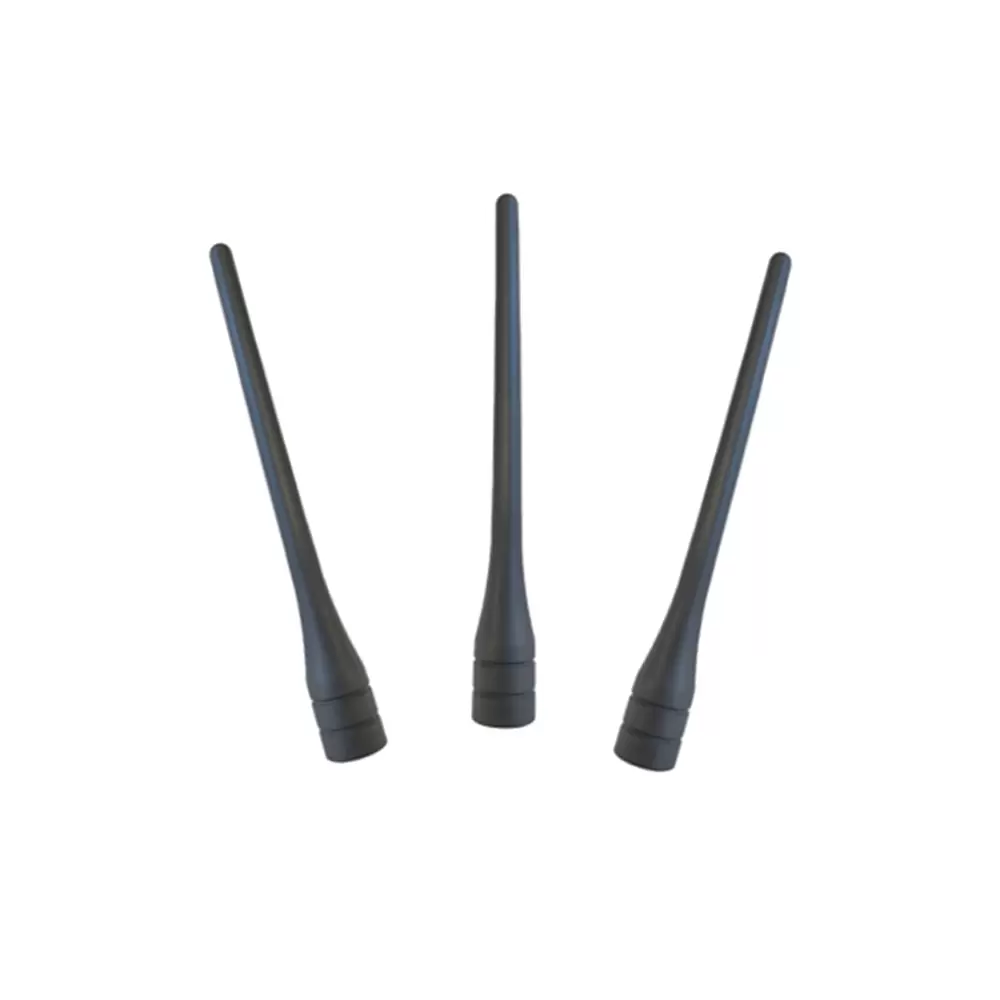

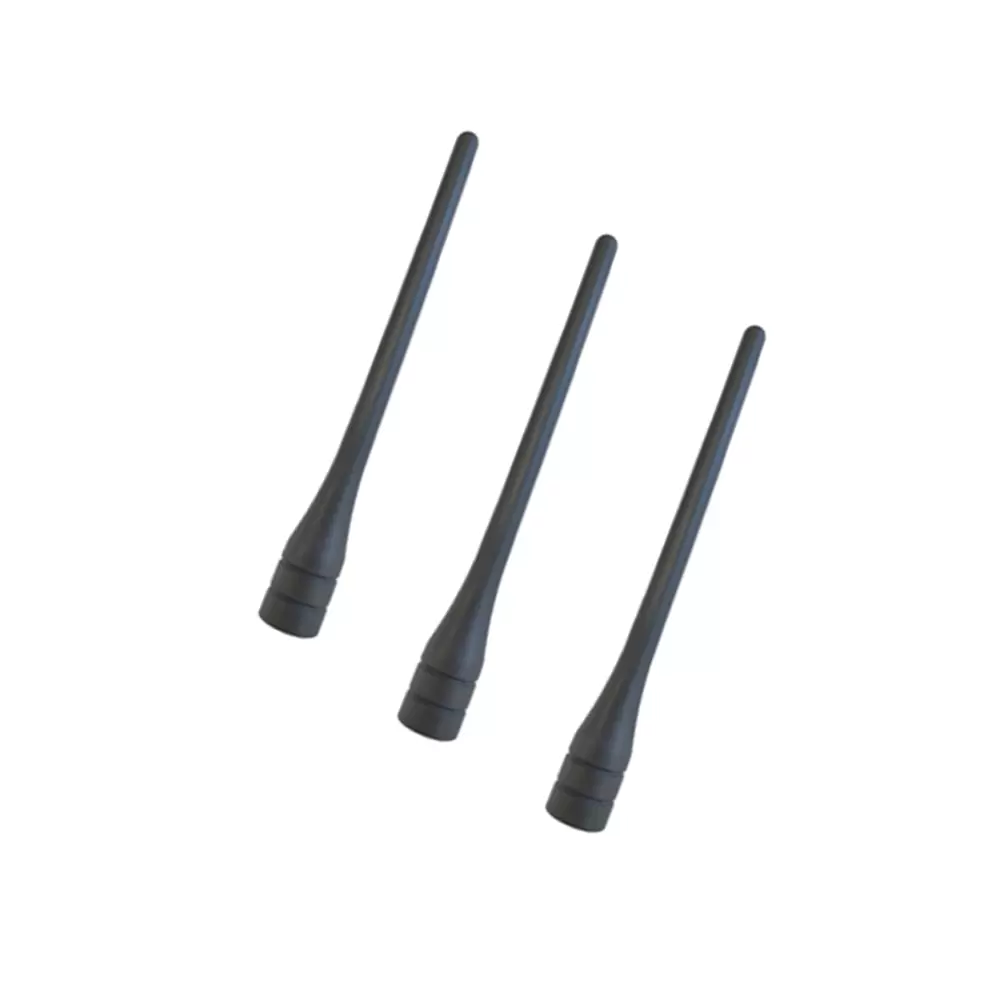

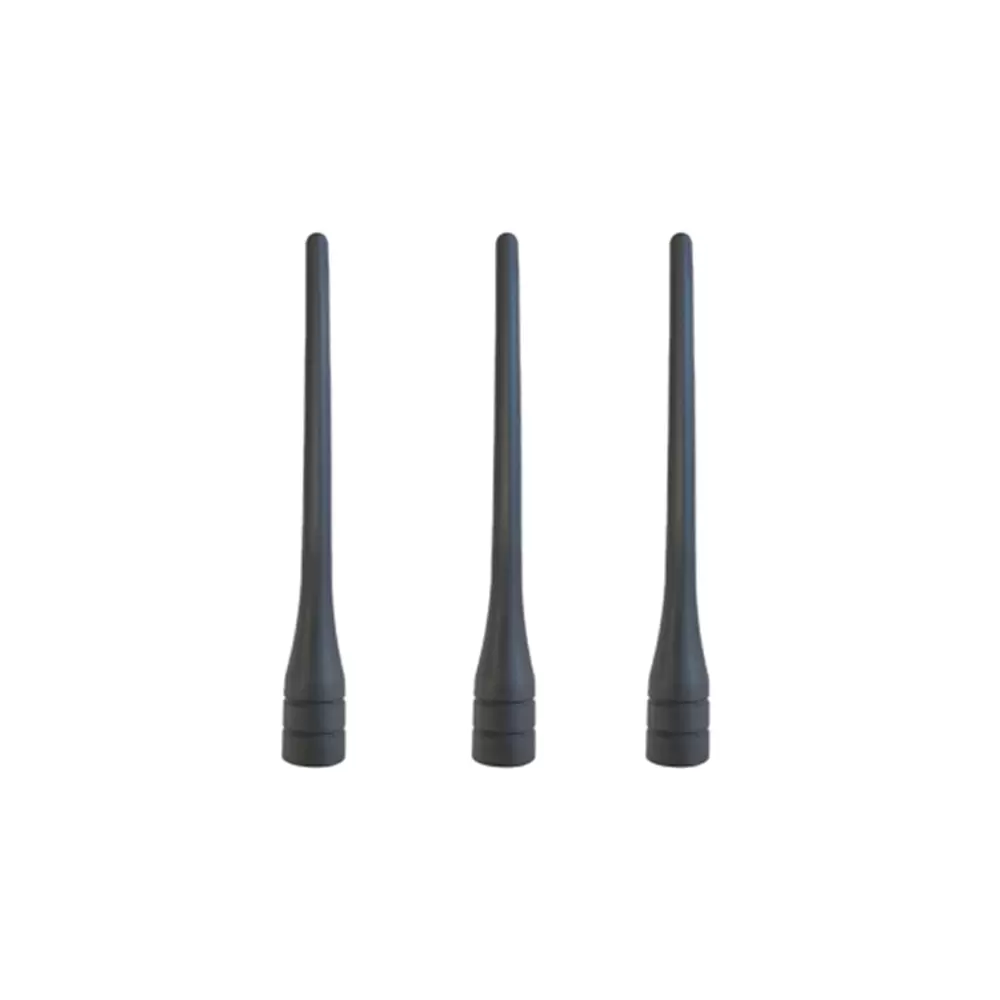

SW210-ZB136:190-225MHz Straight Rod Antenna
The G-NiceRF SW210-ZB136 is an omnidirectional straight rod VHF antenna operating from 190–225 MHz, with 2.15 dBi gain, VSWR ≤1.5, and SMA-J connector—ideal for wireless communication, IoT, and industrial RF applications.
Technical Parameter
Frequency Range: 190-225 MHz
VSWR: ≤1.5
Gain: 2.15 dBi
Input impedance: 50 Ω
Polarization: Vertical
Radiation Pattern: Omnidirectional
Max power: 5W
Interface: SMA-J
Working Temperature: -40~+65°C
Antenna Color: Black
Antennas have been tested using a network analyzer in a simulated wireless transmission environment.
