SW868-TH13Z : 868MHz Copper Spring Antenna
SW868-TH13Z, a copper spring antenna, designed specially for 868MHz wireless communication, it has good VSWR, ingenious structure, easy installation, and stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Spring Antenna SW868-TH13Z
- Frequency Range: 868±5 MHz
- VSWR: ≤ 1.5
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Max power: 5 W
- Polarization: vertical polarization

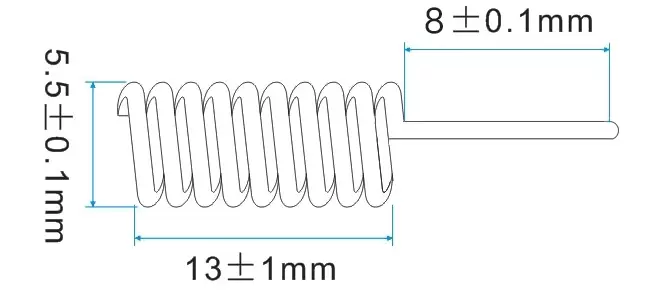

- Height: 13±1mm
- Wire diameter: 0.8mm
- Interface form: welding directly
- Antenna Color: copper
- Weight: 1g
| Frequency | 868MHz |
| Type | Helical |
| Gain | 2.15dBi |
| Size (mm) | < 15 |
| Material & Technology | Copper |

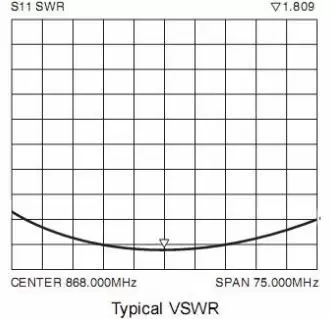

Antennas have been tested under wireless simulated environment by Network Analyzer.
