SW2400-IPEX01 : 2.4GHz IPEX Antenna
SW2400-IPEX01 : 2.4GHz IPEX Antenna
SW2400-IPEX01 : 2.4GHz IPEX Antenna
SW2400-IPEX01 : 2.4GHz IPEX Antenna
SW2400-IPEX01 : 2.4GHz IPEX Antenna
SW2400-IPEX01 : 2.4GHz IPEX Antenna
SW2400-IPEX01 : 2.4GHz IPEX Antenna
SW2400-IPEX01 : 2.4GHz IPEX Antenna
SW2400-IPEX01 : 2.4GHz IPEX Antenna
SW2400-IPEX01 : 2.4GHz IPEX Antenna

SW2400-IPEX01 : 2.4GHz IPEX Antenna

SW2400-IPEX01 antenna, designed specially for 2.4GHz wireless communication, it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.

Technical Parameter of IPEX Antenna SW2400-IPEX01

  • Frequency Range: 2400-2500MHz
  • VSWR: ≤ 1.3
  • Input impedance: 50 Ω
  • Max power: 5W
  • Height: 96±1 mm
  • Interface form: IPEX-1
  • Wire: RG178
  • Weight: 0.8g
Frequency 2.4GHz
Type IPEX
Size (mm) < 100
Material & Technology Copper

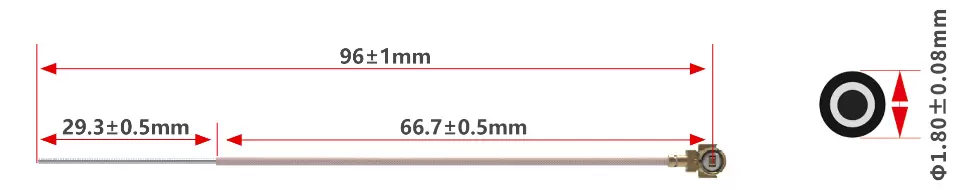

Mechanical sizes of IPEX Antenna SW2400-IPEX01

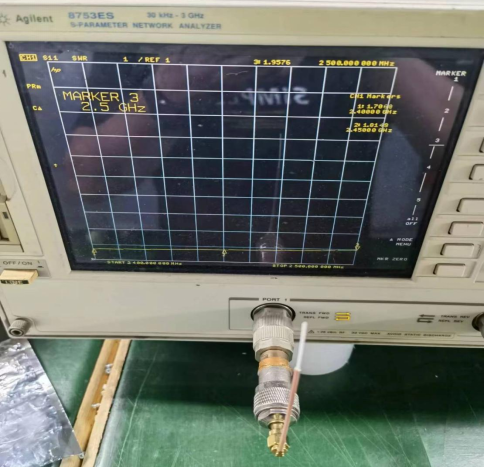

VSWR Charts of IPEX Antenna SW2400-IPEX01

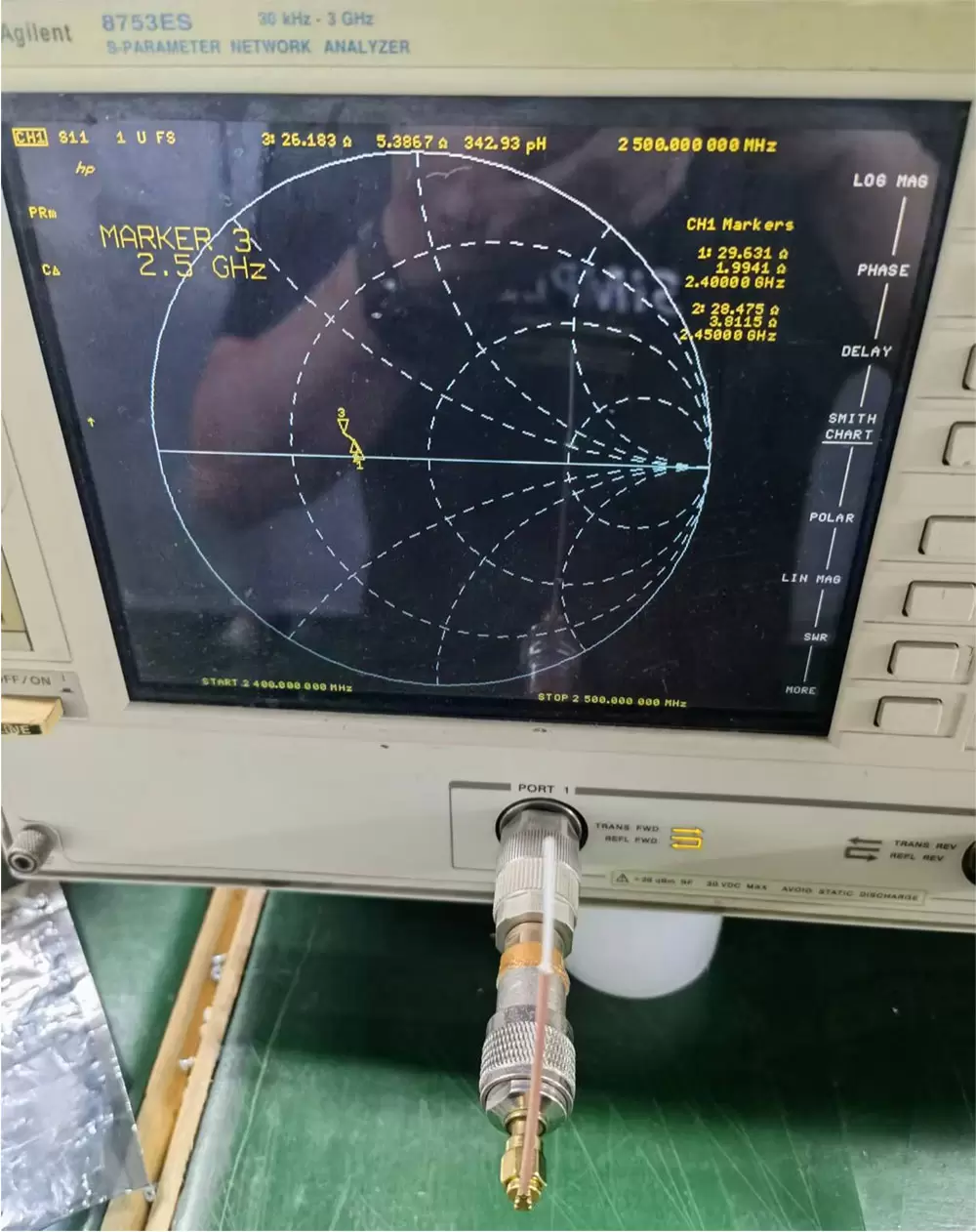

Smith Charts of IPEX Antenna SW2400-IPEX01
