SW2400-IPEX : 2.4GHz IPEX Antenna
Type: IPEX
Frequency: Others
Gain:
Size(mm): <100
Material&Technology: Copper
HOME > PRODUCTS > RF ANTENNAS > SW2400-IPEX : 2.4GHZ IPEX ANTENNA
SW2400-IPEX : 2.4GHz IPEX Antenna
Technical Parameter of IPEX Antenna SW2400-IPEX Frequency Range: 2400-2500MHz VSWR: ≤ 1.3 Input impedance:50 Ω Max power: 5W Height: 96±1 mm Interface form: IPEX-1 RF1.37 wire Weight: 0.4-0.5g
Technical Parameter of IPEX Antenna SW2400-IPEX
- Frequency Range: 2400-2500MHz

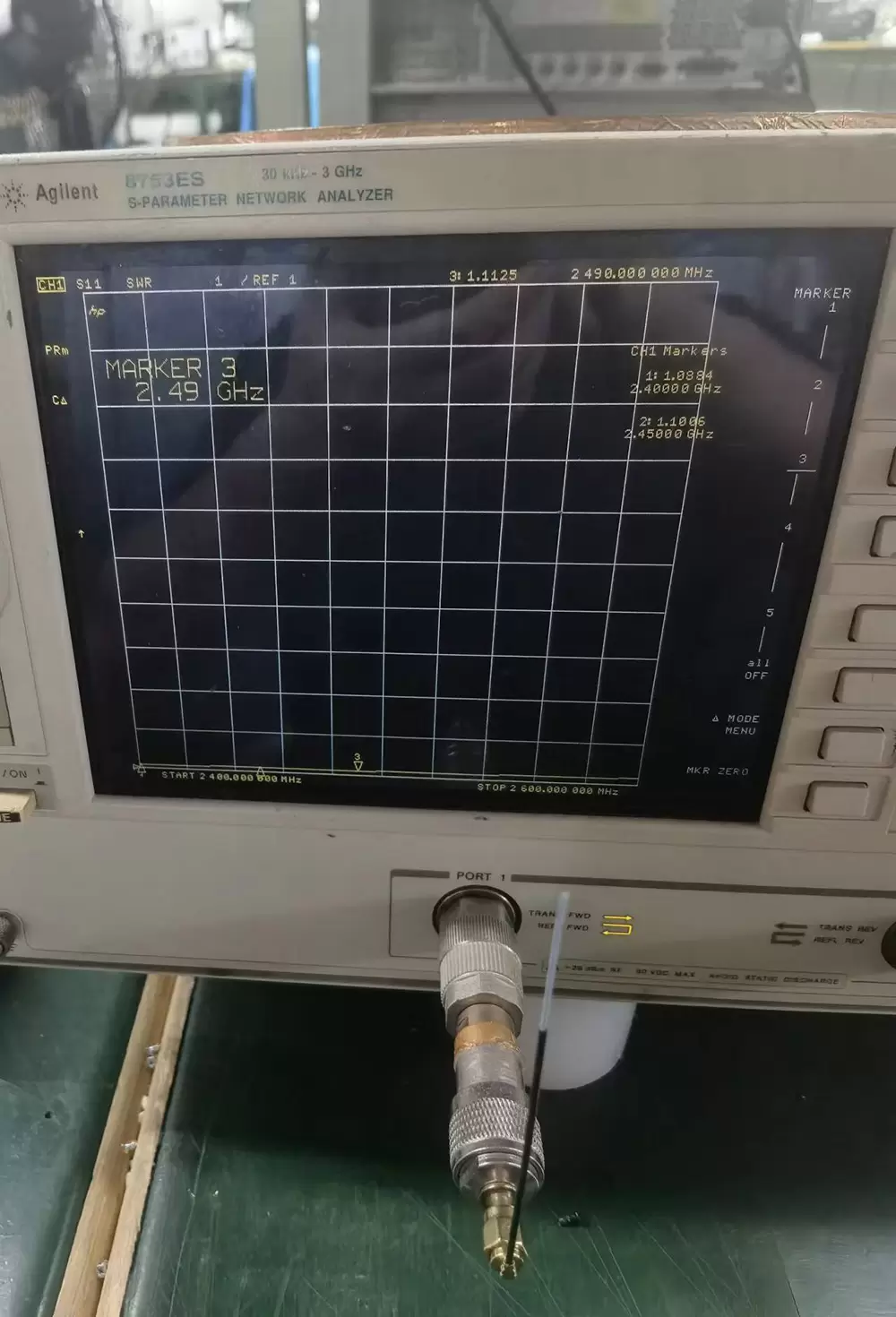

- VSWR: ≤ 1.3

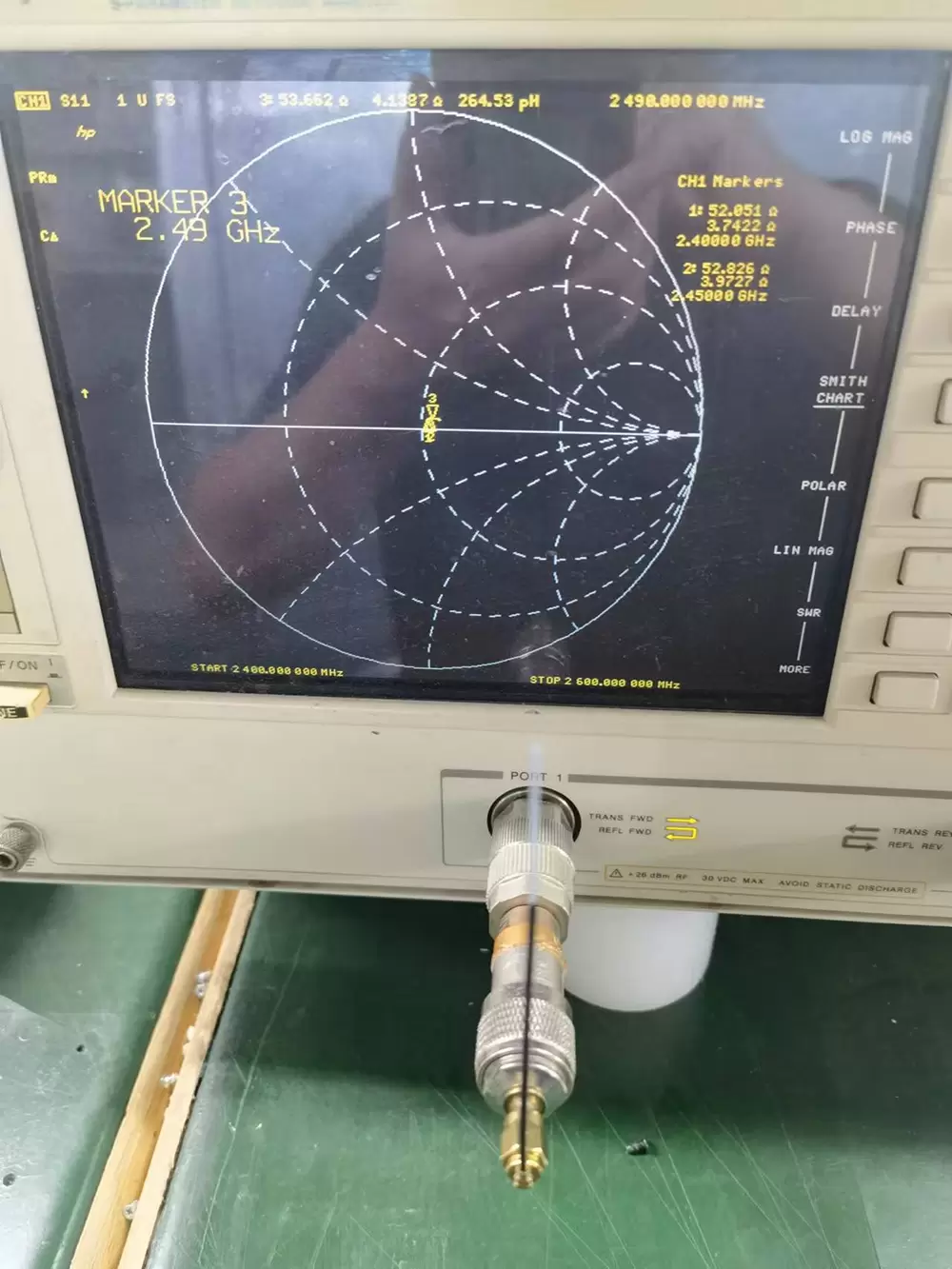

- Input impedance: 50 Ω
- Max power: 5W

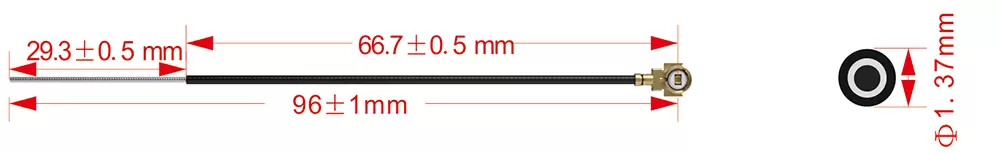

- Height: 96±1 mm
- Interface form: IPEX-1
- RF1.37 wire
- Weight: 0.4-0.5g
| Frequency | 2.4GHz |
| Type | IPEX |
| Size (mm) | < 100 |
| Material & Technology | Copper |
