OD868-TH13 : 868MHz Copper Spring Antenna
OD868-TH13 : 868MHz Copper Spring Antenna
OD868-TH13 : 868MHz Copper Spring Antenna
OD868-TH13 : 868MHz Copper Spring Antenna
OD868-TH13 : 868MHz Copper Spring Antenna
OD868-TH13 : 868MHz Copper Spring Antenna
OD868-TH13 : 868MHz Copper Spring Antenna
OD868-TH13 : 868MHz Copper Spring Antenna
OD868-TH13 : 868MHz Copper Spring Antenna
OD868-TH13 : 868MHz Copper Spring Antenna
OD868-TH13 : 868MHz Copper Spring Antenna
OD868-TH13 : 868MHz Copper Spring Antenna

OD868-TH13 : 868MHz Copper Spring Antenna

OD868-TH13, a copper spring antenna, designed specially for 868MHz wireless communication, it has good VSWR, ingenious structure, easy installation, and stable performance, with good anti-vibration and anti-aging ability.

Technical Parameter

  • Frequency Range: 868±5 MHz
  • VSWR: ≤ 1.5
  • Gain: 2.15 dBi
  • Input impedance: 50 Ω
  • Max power: 5 W
  • Polarization: vertical polarization
  • Height: 13±1mm
  • Wire diameter: 0.8mm
  • Interface form: welding directly
  • Antenna Color: copper
  • Weight: 1g
Frequency 868MHz
Type Helical
Gain 2.15dBi
Size (mm) < 15
Material & Technology Copper

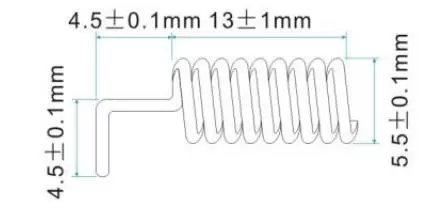

Size(unit:mm)

Antennas have been tested under wireless simulated environment by Network Analyzer.
