SW2400-ZT48 : 2.4GHz Gold Plated Straight Rod Antenna
SW2400-ZT48, gold plated straight rod antenna, designed especially for 2.4GHz wireless communication. It has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency range: 2400±100 MHz
- VSWR: ≤ 1.5
- Gain: 2.5 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization

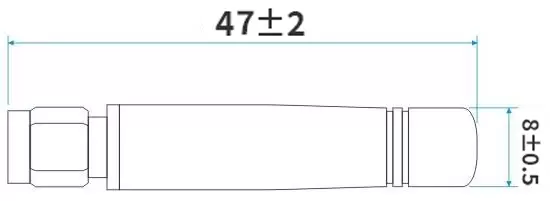

- Height: 47±2 mm
- Interface: SMA-J
- Lead wire: none
- Antenna color: black
- Weight: 6g
| Frequency | 2.4GHz |
| Type | Rod |
| Gain | 2.5dBi |
| Size (mm) | < 50 |

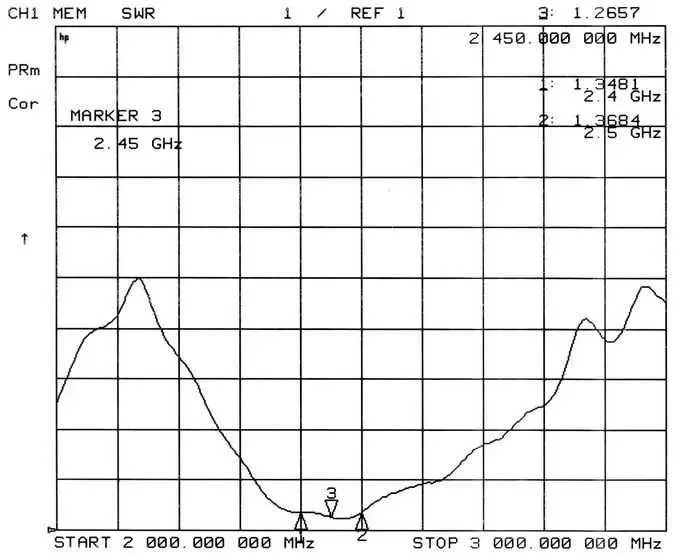

Antennas have been tested under wireless simulated environment by Network Analyzer.
