Walkie-Talkie Modules: Root-Cause Analysis of “Signal Chaos” and Engineering-Level Mitigation Methods

Introduction

In some application scenarios, the audio path of a walkie-talkie module can be affected by power-supply noise, introducing audible interference. Here we provide design principles and component-selection suggestions to help eliminate noise effectively. Following these guidelines can help operators resolve interference issues quickly and thoroughly. Based on common design cases, this article summarizes reference practices related to power integrity and component selection to reduce noise impact on the overall system.

Why Is My Walkie-Talkie Module Buzzing?

Buzzing usually originates from TDD noise in the power architecture of radio systems. The amplifier alternates between transmitting and receiving, which leads to this specific audible problem.

During operation, the power amplifier sends electrical pulses. For most devices, these pulses typically fall in the 16 Hz to 20 Hz range. These pulses propagate through the main board and become the sound users hear. G-NiceRF engineers have observed this behavior in walkie-talkie radio modules across multiple application tests.

Voltage droop is often the primary cause of this particular electronic defect. Walkie-talkie circuits that use PWM modulation may be the source of the noise. Checking the grounding connection of the SA818 RF module is a necessary troubleshooting step. In this case, the modulation acts as the noise carrier. If the wireless audio module lacks proper shielding in the schematic, interference will be amplified.

The SA828 module should be supplied with sufficient power to ensure continuous operation. You should also evaluate how the modulation method used in the walkie-talkie affects audio.

Fundamentals of Walkie-Talkie Module Design

Here we introduce the core design principles for achieving clear radio signals.

DMR Standard

Engineers must follow the established ETSI DMR Tier II standard to ensure compliance. This standard involves data transmission using efficient two-slot TDMA technology, increasing the capacity of DMR walkie-talkie modules. DMR modules transmit data in 30 ms time slots to maintain high efficiency. With this digital method, better efficiency can be achieved. The DMR818 operates with this logic under various conditions. Our DMR858 also follows this rule to deliver better field performance. Compared with traditional analog architectures, power consumption in Industrial IoT applications is optimized.

Digital Logic

Good management of digital timing is critical to performance and clarity. Digital walkie-talkie modules use fast switching internally. Fast switching generates 217 Hz noise pulses, which can introduce interference into the audio path. Shielded routing is necessary to prevent this noise from spreading. The module’s firmware/logic effectively controls this timing behavior. Strict testing of long-range wireless modules ensures protocol compliance and signal stability. Logic traces can carry noise and should be kept short to minimize coupling.

Current Pulses

Current peaks appear during transmission. An embedded walkie-talkie module can draw a 1.5 A peak current during this period. That peak current can also cause a significant voltage drop across a duty cycle. Wider traces are necessary to handle the current load reliably. Walkie-talkie transceiver modules are highly sensitive to the power supply while operating in various modes. Adding capacitors helps smooth the pulses effectively—reducing ripple and preventing voltage droop.

UART Interface

Modules using UART connect through a standard serial port for data transmission. SA828 Arduino connections use two wires for reliable data transfer. The baud rate is typically set to 9600 for stable communication. SA818 Arduino setups work the same way for user programming. Configuration is performed via module programming commands. You can also change the module frequency through this interface by sending AT commands and receiving timely responses. I remember spending hours debugging a connection and eventually realizing the baud rate didn’t match. In LoRa module deployments, firmware configuration is just as important as hardware wiring.

TX/RX Modes

Switching between TX and RX is a standard radio function. A full-duplex walkie-talkie can do both simultaneously when properly isolated. Good isolation is required for feedback-free full-duplex operation. UHF walkie-talkie modules operate around the 400 MHz band, while VHF walkie-talkie modules operate around 136 MHz for longer range. Making sure a matched antenna is available is a key step for success. Switching is fast—most units are under 50 ms.

Design Summary Table

Walkie-Talkie Module Design Parameters and Technical Specifications

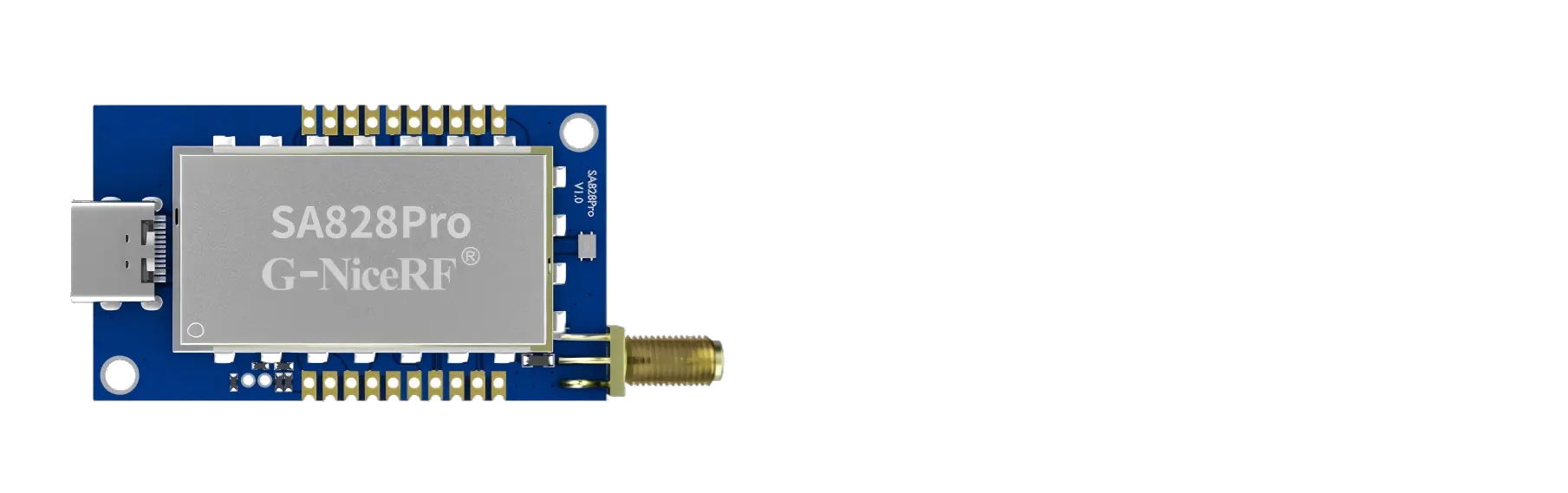

SA828Pro Walkie-Talkie Module: A Highly Integrated, Versatile Module

SA828 is one of the modules that implements walkie-talkie functionality in an analog system. It integrates a microcontroller, RF transceiver, and PA/LNA integration to simplify OEM development. By minimizing external component requirements, it significantly shortens the development cycle for Industrial IoT communication devices.

Core capability
Developers only need to add their own power supply, audio amplifier, and speaker to create a fully functional 16-channel mini walkie-talkie. Configuration can be done via PC software and serial commands, allowing all key parameters to be set—greatly reducing development time.

1 W power output
Compared with standard long-range wireless modules in the same class, the 1 W output provides excellent link-budget performance. SA828 fits most general projects that need strong value at a reasonable cost.

Ultra-compact size
Its extremely compact footprint of 41.37 mm × 28.22 mm makes it easy to integrate into handheld devices. The form factor is designed for integrating a wireless audio module into compact industrial enclosures and supports usability across many fields.

Tri-band support
The module supports both UHF and VHF bands for flexible applications. A critical success step is ensuring a matched antenna. It performs well in the 400–480 MHz and 134–174 MHz bands.

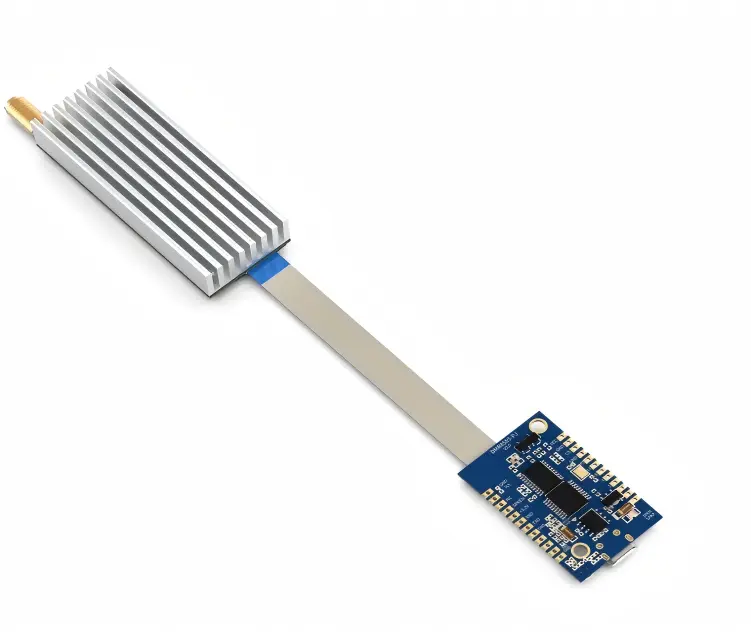

DMR858S Walkie-Talkie Module: A High-Power Choice for Professional Digital Communications

DMR858S is a 5 W DMR Tier II professional walkie-talkie module, offering higher power and longer range within the DMR series. It has been deployed with customers in very large industrial environments and has demonstrated reliability.

5 W high power
This series delivers longer distance with 5 W output for professional use. Field tests confirm stable transmission of 6–8 km in open areas. Enhanced sensitivity improves reliable connectivity for Industrial IoT networks in complex terrain.

Digital/analog integration
It supports DMR Tier II digital mode and remains compatible with analog walkie-talkie operation. This enables smooth migration from analog to digital and supports hybrid deployment with gradual upgrades.

Two time slots
DMR uses TDMA technology, allowing two independent time slots within a single 12.5 kHz channel. Each channel supports two independent logical channels, directly improving spectrum efficiency—doubling channel capacity compared with older analog systems.

Moto AMBE++ vocoder
The module includes the Motorola AMBE++ vocoder for digital voice encoding/decoding. Background noise is reduced, and call quality remains relatively clear even near the edge of coverage. Advanced digital correction minimizes noise interference.

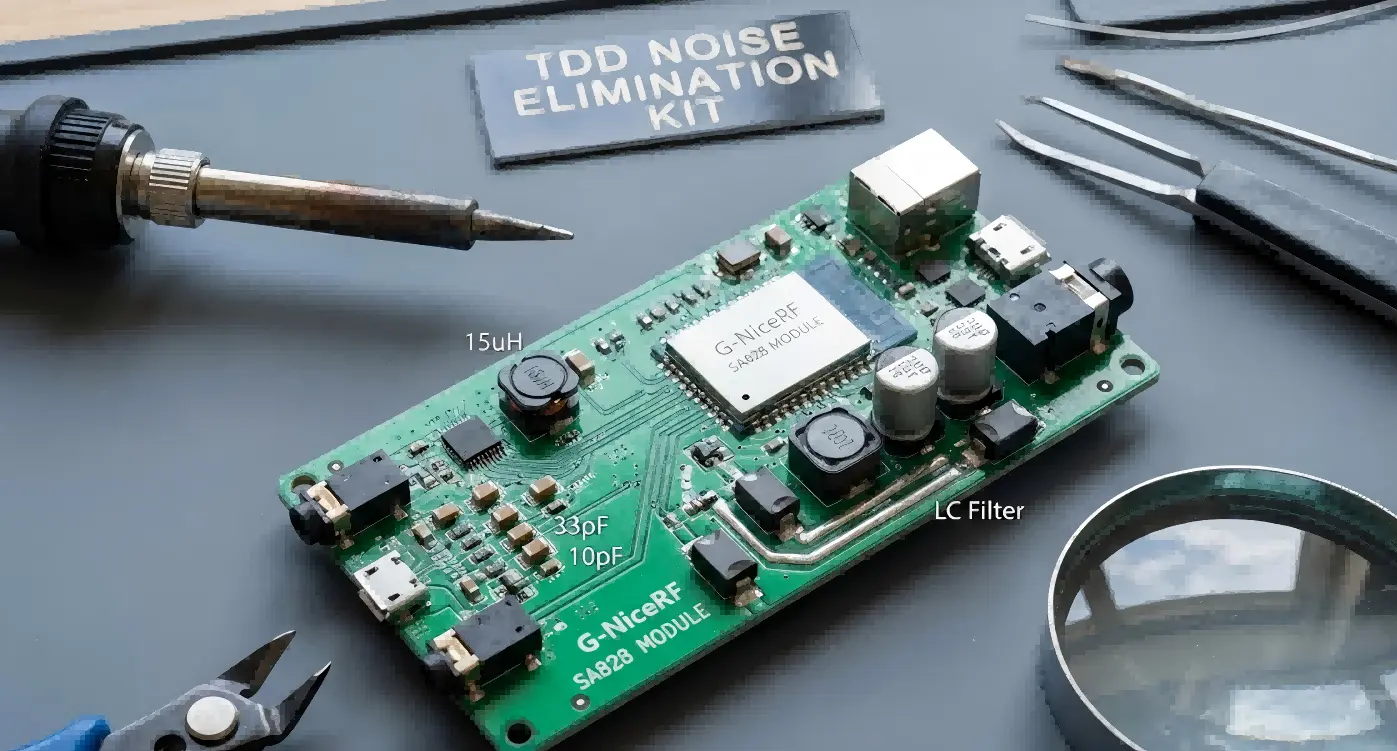

How to Eliminate TDD Noise in Walkie-Talkie Modules?

TDD noise can be reduced by adding specific electronic components to the PCB. These components filter the power supply more effectively and clean up the signal.

Power Inductor

It is recommended to add a power inductor at the input to suppress noise. A 15 µH inductor is a good choice for blocking high frequencies, and it can also help block 217 Hz noise on the line. Walkie-talkie module boards often need this part to stay stable and quiet. Some newly manufactured modules may lack it. You can easily purchase module filters for this purpose online. The inductor “catches” spikes and blocks them like a wall.

33 pF Capacitor

Place the capacitor close to the audio line to filter noise from the path. A 33 pF capacitor effectively filters RF noise from the signal path and prevents 400 MHz signals from coupling into the audio. This helps SA818 perform better in noisy environments. Soldering it close to the pin is an effective method. After this simple modification, SA818 typically performs better. It is a low-cost, highly effective fix.

LC Filter

Building an LC filter for the power supply benefits signal integrity. It combines a 100 µF capacitor and an inductor on the PCB, creating an upgrade path for better performance. Custom prototyping for LoRa modules also requires sufficient capacitance to maintain stability. With a properly installed low-pass filter, noise cannot pass through. A clean 3.3 V rail helps ensure device reliability and longevity.

10 pF Capacitor

Small capacitors can be used to filter high-frequency noise on data lines. A 10 pF capacitor can work at around 800 MHz to block noise ingress. SA828 provides a cost-effective PA/LNA integrated solution for high-volume manufacturing. Before starting, check the SA828 datasheet for pin assignments and details. NiceRF SA828 is well-suited to these applications. Placing capacitors on I/O lines helps prevent RF coupling issues, keeping signals clean and avoiding data errors during transmission. DigiKey notes: “Low-ESR capacitors help reduce ripple and noise in high-frequency circuits.”

Decoupling Ferrite Beads

Placing ferrite beads on power lines helps absorb noise energy. They absorb high-frequency energy to clean the audio signal. SA828 modules need protection from noise to operate well. SA858 is a high-power module and also needs beads to maintain stability. SA868 likewise benefits from ferrite beads for reliable field performance. Choosing 100-ohm beads is a good default for many designs. They effectively convert noise into heat like a resistor.

PCB Layout Materials for Durable Walkie-Talkie Modules

Choosing the right PCB materials is critical for long-term reliability. Good materials reduce interference and improve signal quality for end users.

4-Layer PCB

A 4-layer board is recommended for better RF design results. It provides a dedicated ground layer for improved shielding and performance. Commercial walkie-talkie modules use this to maintain field stability. GMRS modules often work better with this layout, and FRS modules can also benefit. At these frequencies, suppressing noise is crucial for clarity. With four layers, signals remain separated and shielding improves significantly. One of my colleagues solved a stubborn noise problem just by switching to a 4-layer board.

FR4 Substrate

Using FR4 as the PCB base material is an industry standard. FR4 provides a rugged, cost-effective substrate for mass-produced Industrial IoT hardware. Walkie-talkie frequency and modulation remain stable on this material. Reviewing the modulation scheme is important for the final design. G-NiceRF uses high-quality FR4 for boards sold to customers. NiceRF boards are reliable and handle heat well during operation. Components are easy to solder, and the board does not warp under stress.

Copper Pour

Filling empty areas with copper is a good technique to reduce noise. It connects to ground and improves shielding across the entire PCB. Module PTT walkie-talkies use this to ensure stable field performance. Copper shielding helps block stray signals from entering sensitive circuits. Copper can also help cool chips, reducing interference. Did you know copper pour can also act as a heat sink?

Ground Plane

A continuous ground plane is a fundamental RF-board design practice. It provides a return path for current. Some walkie-talkie Bluetooth module designs rely on this for stable links. Examples such as Poptel P6010 use it to achieve better audio during calls. Doogee S90 walkie-talkie modules also align with this design approach. It lowers impedance, routes noise into ground, avoids ground loops, and keeps audio clear for users.

Via Stitching

In PCB design, drilling vias to connect ground layers is called stitching. Boards similar to SA818 module walkie-talkies use it for better shielding. DRA818V benefits from this technique for better performance in noisy environments. RDA1846s designs also apply it effectively. Placing vias every 5 mm can form a “cage” for RF signals—keeping RF contained while protecting other parts from interference. Autodesk notes: “Stitching involves placing vias to improve grounding, reduce EMI, and enhance thermal management.”

Real-World Application Scenarios for High-Performance Walkie-Talkie Modules

These modules are used in many places to connect people and devices.

• Smart agriculture: Smart agriculture systems use LoRa modules to transmit telemetry data over 5 km.

• Security patrol: High-sensitivity long-range wireless modules ensure continuous perimeter coverage.

• Real-time audio alerts: Devices can generate real-time audio alerts for emergency responders and deliver them immediately through walkie-talkie modules.

• Remote sensing: Sensors using this technology can operate at long distances. Walkie-talkie modules can transmit data from sensors located far from base stations.

• Industrial IoT: Multi-channel Industrial IoT networks track machine status effectively in factory environments.

Component Selection Tips to Prevent “Signal Chaos”

Using low-cost parts can lead to signal confusion. Maintaining good signal quality requires high-quality components.

LDO Regulator

Walkie-talkie modules targeting 10 to 28 miles of range need an LDO. A high-PSRR LDO is required for a clean supply. It suppresses power noise—one of the toughest problems designers face. Budget wireless audio modules often lack sufficient PSRR. You can verify this in module specifications. 70 dB PSRR performs well in cleaning supply voltage. We tested five different LDOs before finding one that removed TDD noise.

Microphone Bias

Microphone bias voltage is filtered using a 3-stage RC filter to improve clarity. Doogee S90 modules use this connection to input audio signals. Voicelayer module PTT applications use it as well. With proper filtering, audio reproduction in wireless audio modules improves significantly. Using a 47 µF capacitor can stop buzzing and make speech clearer. Selecting the correct capacitor value is important for optimizing PA/LNA integrated circuits.

Low-ESR Capacitors

Low-ESR capacitors are chosen because they offer low resistance to current flow and can respond quickly to spikes in the power supply. They are used in 2-set and 3-set walkie-talkie module kits for reliability. It is recommended to use 100 µF capacitors for on-board energy storage. They maintain stable voltage and prevent droop during transmission. As Texas Instruments notes: “LDO PSRR is key to filtering switching noise.”

Ferrite Beads

Adding beads on power lines effectively attenuates high-frequency noise. Some G-NiceRF module designs include this feature. SA828 remains stable when using a 120-ohm impedance bead on the line. It prevents power-line noise from leaking into the RF signal. When installed correctly, noise in that area typically stops.

Audio Amplifier

A Class-AB amplifier is a good choice for audio output quality. Walkie-talkie module PDF documentation confirms lower noise levels. SA818 Arduino projects can use it for audio applications. It works for 1-channel through 16-channel walkie-talkie modules. Keeping routing short helps prevent feedback. With this amplifier, each word can be delivered loudly and clearly.

FAQ

What causes 217 Hz noise in the audio path?

The noise results from TDD pulses on the power line. Walkie-talkie module systems using poor-quality power adapters and chargers can leak this noise. These bursts can create a trembling buzz in the audio. During transmission, it occurs on the power line every 4.6 ms. It has a major impact on microphone and audio quality. Better filtering is needed to prevent this noise from being audible.

How does a 33 pF capacitor filter RF signals?

The capacitor acts as a short to ground for high frequencies. Walkie-talkie module reviews often mention this effect. It works for 400 MHz, while audio passes to the speaker. The component blocks RF on the board effectively. Placing it close to the relevant pin helps clean the signal and improves clarity for users.

Why do digital radios use a 4-layer PCB?

Mini walkie-talkie modules need shielding from external interference sources. Multiple layers keep traces away from external interference and crosstalk. Basic consumer radios may use simpler architectures, while industrial wireless audio module designs require more complex stacking. More layers help prevent crosstalk between signals. A solid ground layer improves range and stability.

Can antenna coupling affect the microphone-bias circuit?

Without proper shielding, RF can easily couple into wires. Walkie-talkie modules near the antenna can be affected by this coupling. Low-power long-range wireless modules are less susceptible, while high-power embedded walkie-talkie modules can be more harmful to circuits. The price of walkie-talkie modules often reflects shielding quality. Shielding the microphone effectively blocks noise for users.

How can I stop interference from TDD burst transmissions?

Using large capacitors can help prevent interference from affecting audio. Many modules sold already include one. Walkie-talkie modules for Arduino also need it for stable operation. Professional LoRa module integration likewise requires this capacitor for better performance. If you filter the power input, Sunrise walkie-talkie modules can operate properly.

Conclusion

With appropriate design and debugging, noise impact on communication quality can be reduced. Using a better PCB and adding the right filters can deliver clearer signals. “Signal chaos” and buzzing issues in walkie-talkie modules are typically closely related to power integrity, TDD timing, and PCB layout. Through proper power filtering, grounding planning, and module selection, noise impact on audio and communication stability can be reduced at an engineering level. In real projects, system integrators should validate and trade off design options based on application scenarios, regulatory requirements, and power budgets. For additional needs, please contact G-NiceRF for technical support.
