Stability and Transmission Capability of Wireless Communication: Air Data Rate is Key

In wireless communication solutions, the air data rate is a key parameter that measures the speed at which data is transmitted over the air. It not only affects transmission efficiency but also directly influences various performance aspects such as communication range, anti-interference capability, and power consumption. Therefore, it is an important factor in the design of wireless communication systems.

The Key Role of Air Data Rate in Wireless Communication

Communication Range
The higher the air data rate, the higher the modulation rate and frequency components of the signal, which are more prone to attenuation during transmission, resulting in a shorter communication range. Conversely, a lower air data rate used in conjunction with lower frequency bands provides stronger signal penetration and wider coverage, making it suitable for long-distance communication.

Anti-Interference Capability
Low data rates often employ spread spectrum technologies (such as LoRa and FSK), which offer stronger anti-interference capabilities and maintain stable communication in complex electromagnetic environments. Although high data rates improve data throughput, they are more sensitive to channel quality and more easily affected by noise, electromagnetic interference, and multipath effects. Therefore, more sophisticated anti-interference algorithms are required to ensure communication reliability.

Power Consumption Performance
A high air data rate results in shorter transmission times, allowing quicker transitions to sleep mode, which is suitable for low-power systems sensitive to latency.
A low air data rate, although resulting in longer transmission durations, uses simpler modulation methods and can operate with lower transmit power, making it suitable for long-term battery-powered applications.

Transmission Efficiency
High data rates are suitable for latency-sensitive, high-data-volume applications such as voice, image transmission, high-definition video, and remote control. Low data rates are more appropriate for transmitting small-sized, highly stable control signals and status monitoring data, typically found in applications like meter reading and positioning tags.

Modulation Scheme
Low-rate communication often uses spread spectrum modulation technologies such as FSK and LoRa, which offer high sensitivity and strong anti-interference capabilities.
Medium to high data rate communication commonly employs modulation schemes like GFSK and DSSS to improve spectral efficiency.
The choice of air data rate often determines the modulation method, which in turn affects the complexity, cost, and chip requirements of the transceiver module.

Response Speed
The higher the air data rate, the faster data is transmitted over the air, which increases the volume of data transferred and enhances transmission efficiency.

Communication Quality
High-speed transmission requires greater signal integrity. In weak signal or high-interference environments, bit error rates are more likely to increase, reducing communication quality.
Low data rates, under the same power conditions, offer higher reception sensitivity and lower bit error rates, resulting in better stability.

System Design
High air data rate systems require faster main control MCUs, higher-speed serial or I2S interfaces, and higher-quality RF front-ends.
In contrast, low air data rate modules have lower hardware requirements, simpler interfaces, and lower deployment costs, making them suitable for widespread distributed deployments.

Common Over-the-Air Data Rate Ranges

How to Choose the Appropriate Air Data Rate
In practical applications, the air data rate should be selected based on a combination of factors such as communication range, power consumption requirements, data volume, real-time performance, and environmental interference.

Long-distance and harsh environment monitoring: It is recommended to use low data rates of 0.3–2.4 kbps with LoRa modulation for better penetration and reliability.

Industrial data transmission and control: 9.6–38.4 kbps is recommended to balance transmission speed and range.

Voice/audio wireless communication: 128–250 kbps is more suitable to ensure real-time performance and clarity.

Multi-device collaboration and complex channel environments: The data rate should be chosen based on the system’s scheduling capabilities, favoring rates that support concurrency.

Applications of Air Data Rate
In the design of wireless communication systems, air data rate is one of the key parameters. According to varying needs such as the number of users, data volume, and coverage area, selecting a suitable air data rate helps achieve optimal system performance.
In scenarios requiring high real-time performance—such as air traffic control and emergency communication—high air data rates enable fast and stable data transmission, improving communication efficiency and safety.

Air data rate directly affects the transmission speed of wireless signals and overall system performance. Proper configuration and optimization of air data rate contribute to improved communication reliability and user experience.

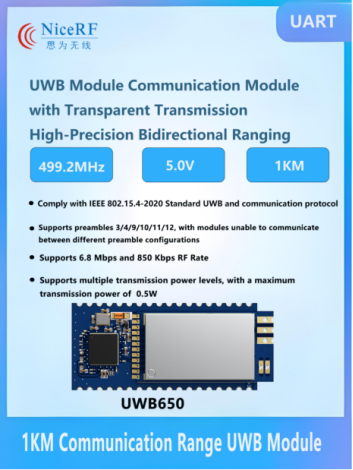

The UWB650 module from Siwei Wireless supports two air data rates: 8 Mbps and 850 Kbps, meeting data transmission requirements across different scenarios. The high data rate (8 Mbps) is suitable for short-range, high-volume real-time transmission, such as high-precision positioning and real-time control signals. In contrast, the medium data rate (850 Kbps) offers more stable communication in complex environments, with stronger anti-interference capability and lower power consumption. This enables the UWB650 module to perform functions like double-sided two-way ranging (DS-TWR) and three-point planar positioning in high-precision applications, ensuring both high-speed data transmission and improved system stability and communication range.
