LoRaWan1301 : Embedded Small Size LoRaWan Gateway Module SX1301
- LoRaWan1301 is a front-end SX1301 LoRaWan gateway module launched by NiceRF. Its small size and SPI interface are the main characteristics. The module adopts SX1301, SX1255 / SX1257 chip scheme and is designed based on Semtech official standard. Built in TCXO crystal oscillator supports various frequency bands of 433 / 470 / 868 / 915MHz, and other specific frequencies can also be customized.
- LoRaWan Gateway module LoRaWan1301 are strictly produced and tested by lead-free process, which comply with RoHS and REACH standards.
| Parameter | Min | Typ. | Max | Unit | Condition | |
| Working Condition | ||||||
| Working voltage range | 2.9 | 5.0 | 5.5 | V | ||
| Temperature voltage | -40 | 85 | ℃ | |||
| Current Consumption | ||||||
| Receiving current | <340 | mA | @9 channels all open | |||
| Transmitting current | <480 | mA | @24dBm | |||
| Sleep current | <35 | mA | ||||
| Parameter | ||||||
| Frequency range | 429 | 433 | 440 | MHz | @433MHz | |
| 470 | 480 | 490 | MHz | @470MHz | ||
| 860.75 | 868.3 | 874.5 | MHz | @868MHz | ||
| 902 | 915 | 928 | MHz | @915MHz | ||
| Output power | 0 | 24 | dBm | |||
| Receiving sensitivity | -133 | dBm | @SF=10,,BW=125kHz | |||
| Interface | SPI |
| Chip | SX1301 |
| Frequency | 433MHz,470MHz,868MHz,915MHz |
| Output Power | 250mW |
Features of SX1301 LoRaWan Gateway Module LoRaWan1301
- LoRa long range module technology
- Half-duplex
- Simultaneously receive LoRa packets
- Dual digital Tx & Rx radio front-end
- Dynamic data-rate adaptation (ADR)
- Multi LoRa Spreading Factor
- Maximum 10 channels
- 8 x Multi SF LoRa channels (SF7 to SF12 with125kHz Bandwidth)
- 1x LoRa channel (Bandwidth 125/250/500kHz)
- 1 x FSK channel
Application of SX1301 LoRaWan Gateway Module LoRaWan1301
- Smart city
- Smart Metering ( Water, Electric, Gas meter )
- Agricultural Monitoring
- Irrigation control
- Internet of Things (IoT)
- M2M
- Wireless Sensors
- Wireless Alarm and Security Systems

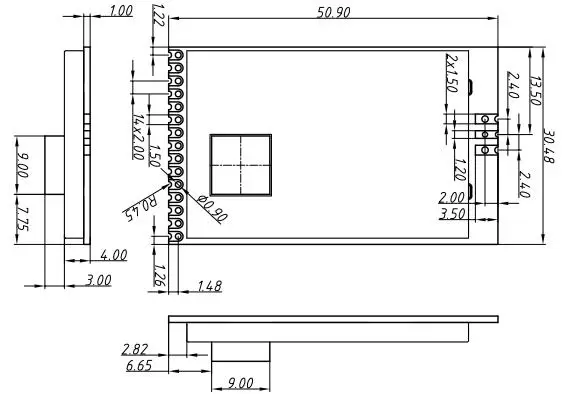

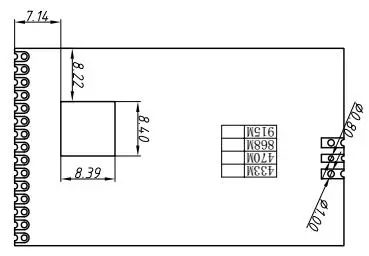

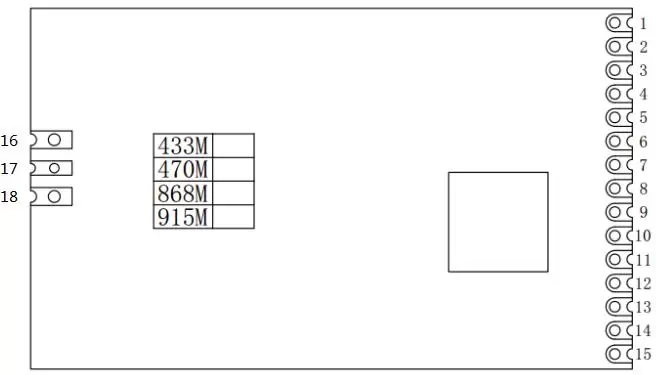

| Pin | Definition | Type | Description |
| 1 | +5V | Power (VCC) | Power Supply |
| 2 | GPIO4 | Input/Output |
GPIO of SX1301 |
| 3 | GPIO3 | Input/Output | |
| 4 | GPIO2 | Input/Output | |
| 5 | GPIO1 | Input/Output | |
| 6 | GPIO0 | Input/Output | |
| 7 | SCK | Input | SCK of SX1301 (max 10 MHz clock) |
| 8 | MISO | Output | MISO of SX1301 |
| 9 | MOSI | Input | MOSI of SX1301 |
| 10 | GPS_IN | Input | GPS_IN of SX1301 |
| 11 | CSN | Input | CSN of SX1301 |
| 12 | GND | Power (GND) | Ground |
| 13 | RESET | Input | Reset of SX1301 |
| 14 | GND | Power (GND) | Ground |
| 15 | NC | Reserved | |
| 16 | GND | GND of antenna | |
| 17 | Antenna | Antenna | |
| 18 | GND | GND of antenna |
