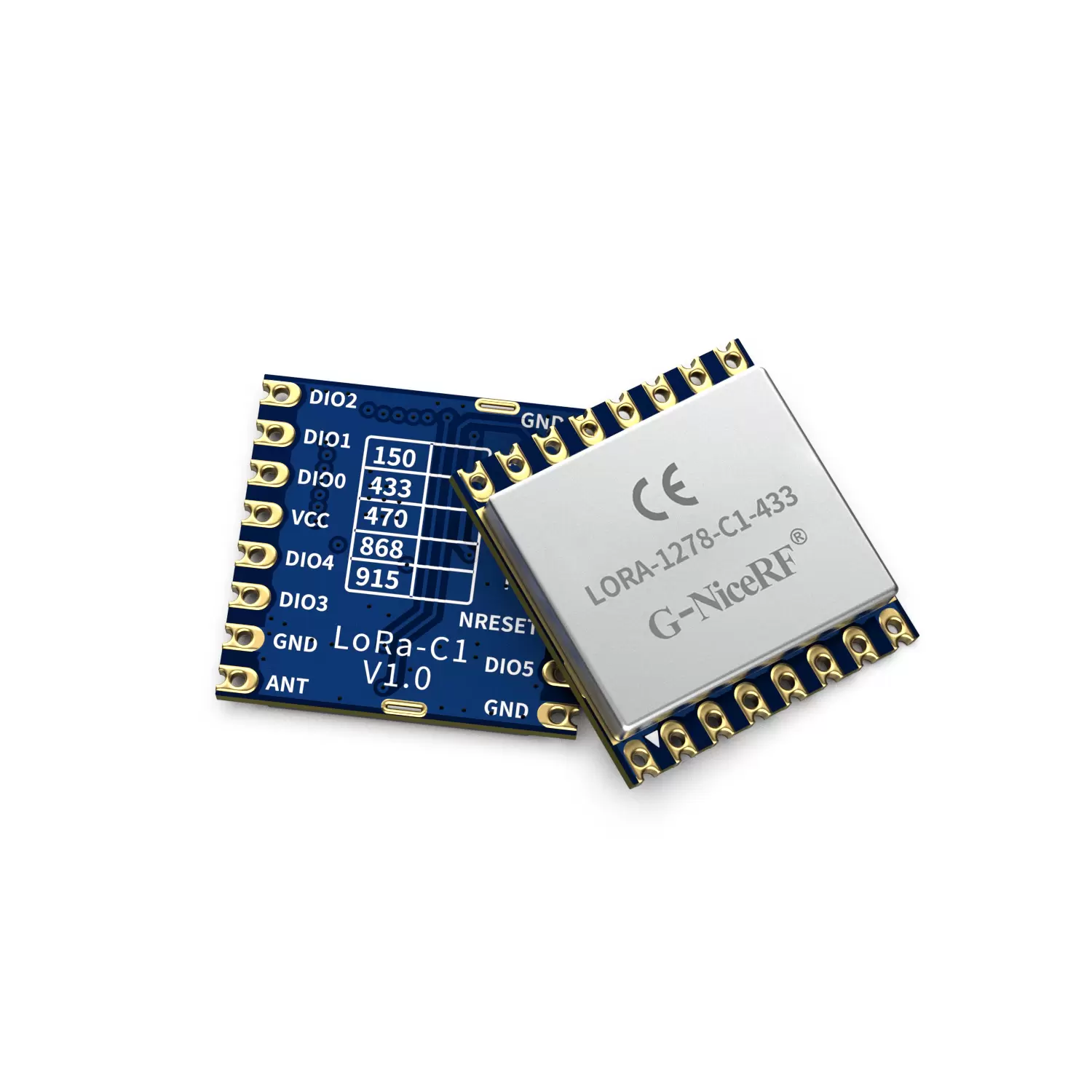

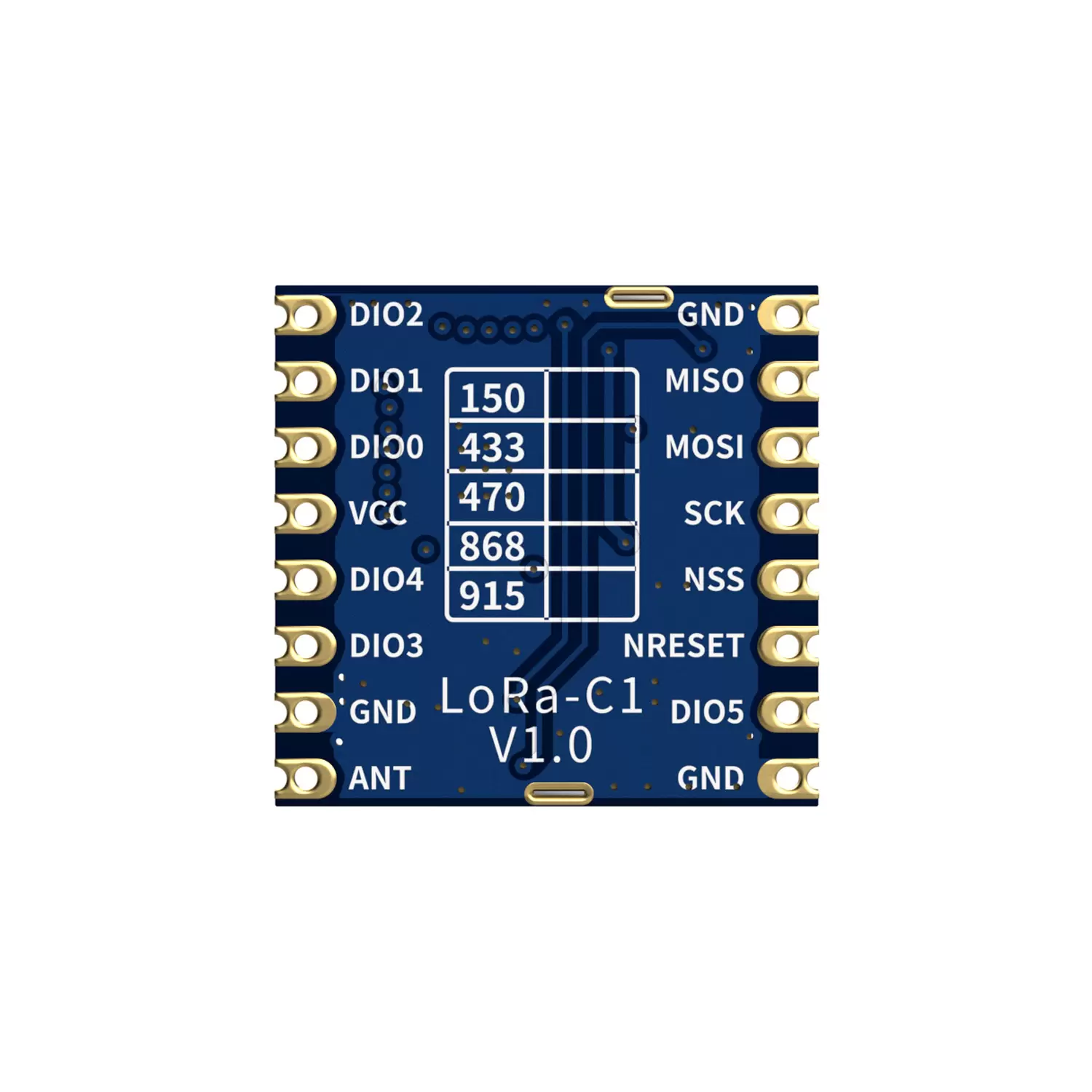

LoRa1278-C1 : 433/490MHz SX1278 LoRa Module With SPI Front End Module And ESD Protection
LoRa1278-C1 : 433/490MHz SX1278 LoRa Module With SPI Front End Module And ESD Protection
LoRa1278-C1 : 433/490MHz SX1278 LoRa Module With SPI Front End Module And ESD Protection
LoRa1278-C1 : 433/490MHz SX1278 LoRa Module With SPI Front End Module And ESD Protection
LoRa1278-C1 : 433/490MHz SX1278 LoRa Module With SPI Front End Module And ESD Protection
LoRa1278-C1 : 433/490MHz SX1278 LoRa Module With SPI Front End Module And ESD Protection
LoRa1278-C1 : 433/490MHz SX1278 LoRa Module With SPI Front End Module And ESD Protection
LoRa1278-C1 : 433/490MHz SX1278 LoRa Module With SPI Front End Module And ESD Protection
LoRa1278-C1 : 433/490MHz SX1278 LoRa Module With SPI Front End Module And ESD Protection
LoRa1278-C1 : 433/490MHz SX1278 LoRa Module With SPI Front End Module And ESD Protection
LoRa1278-C1 : 433/490MHz SX1278 LoRa Module With SPI Front End Module And ESD Protection
LoRa1278-C1 : 433/490MHz SX1278 LoRa Module With SPI Front End Module And ESD Protection

LoRa1278-C1 : 433/490MHz SX1278 LoRa Module With SPI Front End Module And ESD Protection

  • The LoRa module LoRa1278-C1 integrates Semtech RF transceiver chip SX1278, which adopts LoRa Spread Spectrum modulation frequency hopping technique. Its communication distance and receiving sensitivity are much better than the current FSK and GFSK modulation. Multi-signal won't affect each other even in crowd frequency environment. It comes with strong anti-interference performance. The antenna switch is integrated and controlled by the chip. Because of the compact size and output power of 100mw, it can be widely used in wireless meter reading, remote industrial control and other industries.
  • LoRa1278-C1 strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.
Parameter Min Typ.  Max. Unit Condition
Operation Condition
Working voltage  1.8 3.3 3.7 V
Temperature range -40   85 °C
Current Consumption
RX current   10.8   mA
TX current   120   mA @20dBm
Sleep current   1   uA
RF Parameter
Frequency range 403 433 463 MHz @433MHz
470 490 510 MHz @490MHz
Data Rate 1.2   300 Kbps FSK
0.018   37.5 Kbps LoRa
Output Power  -1   20 dBm
Receiving sensitivity   -123   dBm @FSK data=1.2kbps, Fdev=10kHz
  -139   dBm @LoRa BW=125KHz_SF = 12_CR=4/5
Interface SPI
Chip SX1278
Frequency 433MHz,470MHz
Modulation LoRa
Output Power 100mW

Features of SX1278 LoRa Module LoRa1278-C1

  • Frequency Range:433/490 MHz  (Customizable 137-525 MHz)
  • Sensitivity up to :-139dBm @Lora
  • Maximum output power:20 dBm
  • Low RX current:10.3 mA
  • Sleep current< 1.5uA
  • Data transfer rate:@FSK,1.2-300 Kbps
  • @Lora, 0.018-37.5 Kbps
  • Excellent blocking immunity
  • Lora、FSK、GFSK Modulation mode
  • Built-in ESD Protection
  • 127 dB Dynamic Range RSSI
  • Packet engine up to 256 bytes with FiFo and CRC
  • Built-in temperature sensor and low battery indicator
  • Operating Temperature Range:-40 ~ +85 °C

Applications of SX1278 LoRa Module LoRa1278-C1

  • Remote meter reading
  • Industrial control
  • Home automation remote sensing
  • Toys control
  • Sensor network
  • Tire pressure monitoring
  • Wireless PC peripherals
  • Health monitoring

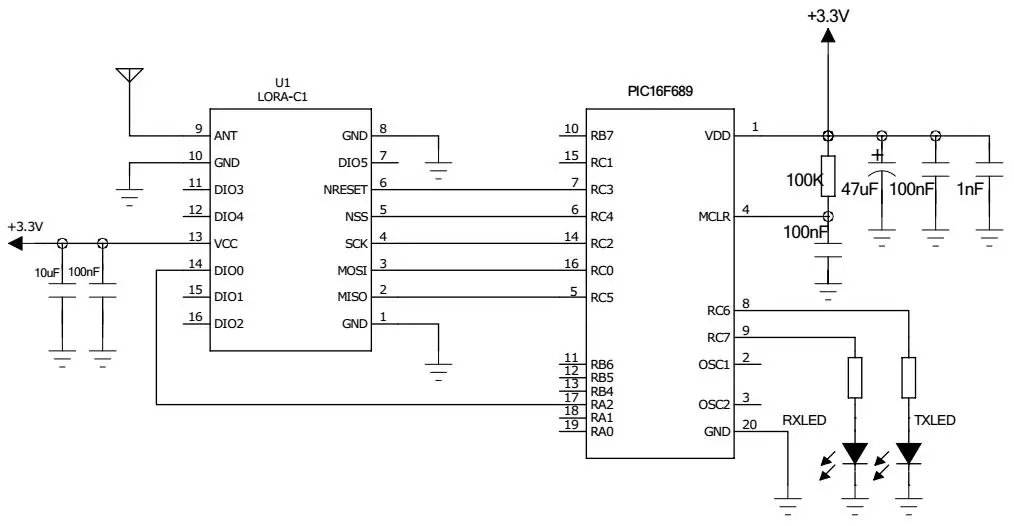

Typical application circuit of SX1278 LoRa Module LoRa1278-C1

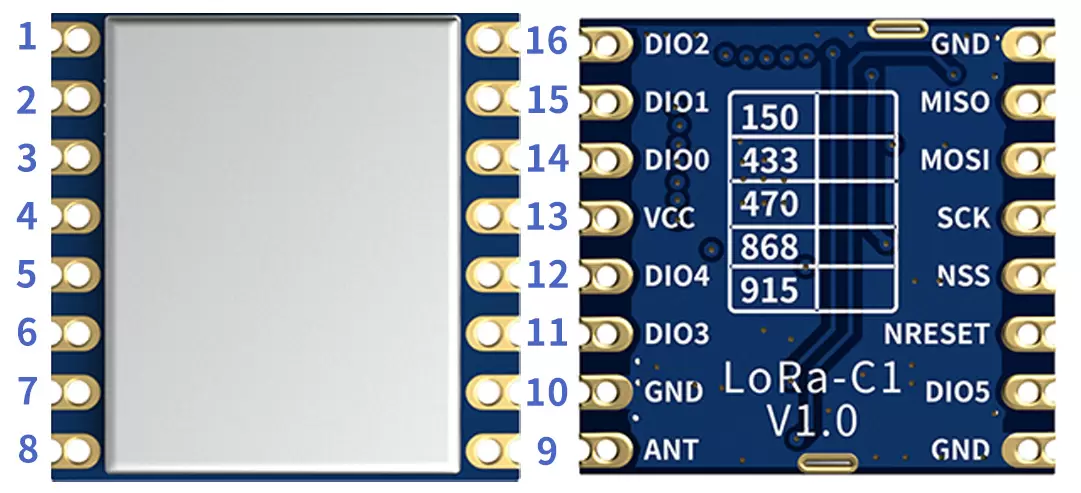

Pins of SX1278 LoRa Module LoRa1278-C1



Pin NO. Pin name Description
1 GND power ground
2 MISO SPI Output for SPI data
3 MOSI SPI Input for SPI data
4 SCK Serial clock for SPI interface
5 NSS SPI enable
6 NRESET Reset input
7 DIO5 Digital I/O, customizable
8 GND power ground
9 ANT Connect with 50 ohm coaxial antenna
10 GND power ground
11 DIO3 Digital I/O, customizable
12 DIO4 Digital I/O, customizable
13 VCC Connected power supply(default 3.3V)
14 DIO0 Digital I/O, customizable
15 DIO1 Digital I/O, customizable
16 DIO2 Digital I/O, customizable

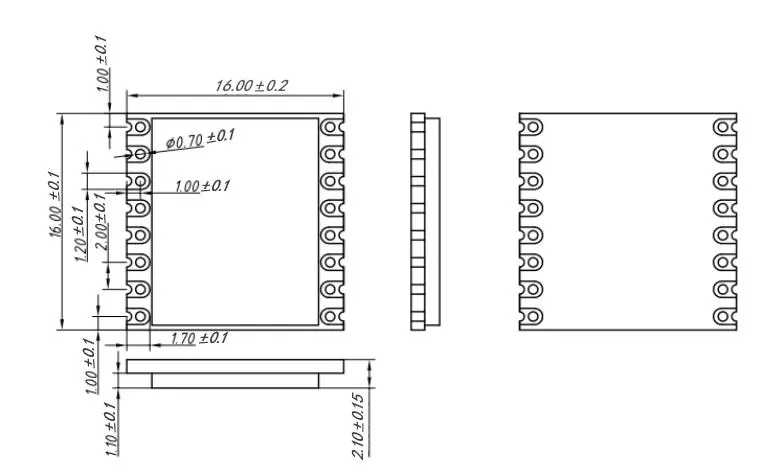

Mechanical Dimensions of SX1278 LoRa Module LoRa1278-C1
