LoRa1278F30 : SX1278 1W LoRa Wireless Module With ESD Protection

LoRa1278F30 is a 1W high power LoRa wireless module, which integrates Semtech RF transceiver chip SX1278. It adopts LoRa Spread Spectrum modulation frequency hopping technique. The features of long distance and high sensitivity (-139 dBm) make this module perform better than FSK and GFSK module. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance.

ParameterMin.Typ. Max.UnitCondition
Working Condition
Working voltage range356.5V
Temperature voltage-40 85
Current Consumption
RX current < 13 mA@5V
TX current550600650mA@30dBm
Sleep current < 10 uA
RF Parameter
Frequency range400433460MHz@433MHz
470489.92510MHz@470MHz
Data rate1.2 300KbpsFSK
0.018 37.5KbpsLoRa
Output power253030.5dBm@433~470 MHz
Receiving sensitivity -122 dBm@FSK data=1.2 Kbps  Fdev=50 KHz
 -139 dBm@LoRa BW=125 KHz  SF = 12  CR=4/5
Interface SPI
Chip SX1278
Frequency 433MHz,470MHz
Modulation LoRa
Output Power 1W

Features of SX1278 Wireless Module LoRa1278F30

  • Frequency Range: 433-460MHz/470-510MHz
  • Sensitivity up to -139 dBm
  • Maximum output power: 30dBm
  • 13mA@receiver mode
  • Sleep current <10uA
  • Data transfer rate:@FSK,1.2-300kbps @LoRa,018-37.5kbps
  • LoRa ,MSK,GFSK Modulation mode
  • 127 dB Dynamic Range RSSI
  • Packet engine up to 256 bytes with FiFoand CRC
  • Hopping frequency
  • Operating Temperature Range:-40 ~ + 85 °C
  • Built-in temperature sensor and low battery indicator
  • 3.0-6.5 V Power supply
  • Excellent blocking immunity

Applications of SX1278 Wireless Module LoRa1278F30

  • Remote control
  • Remote meter reading
  • Home security alarm and remote keyless entry
  • Industrial control
  • Home automation remote sensing
  • Individual data records
  • Toys control
  • Sensor network
  • Tire pressure monitoring
  • Health monitoring
  • Wireless PC peripherals
  • Tag reading and writing

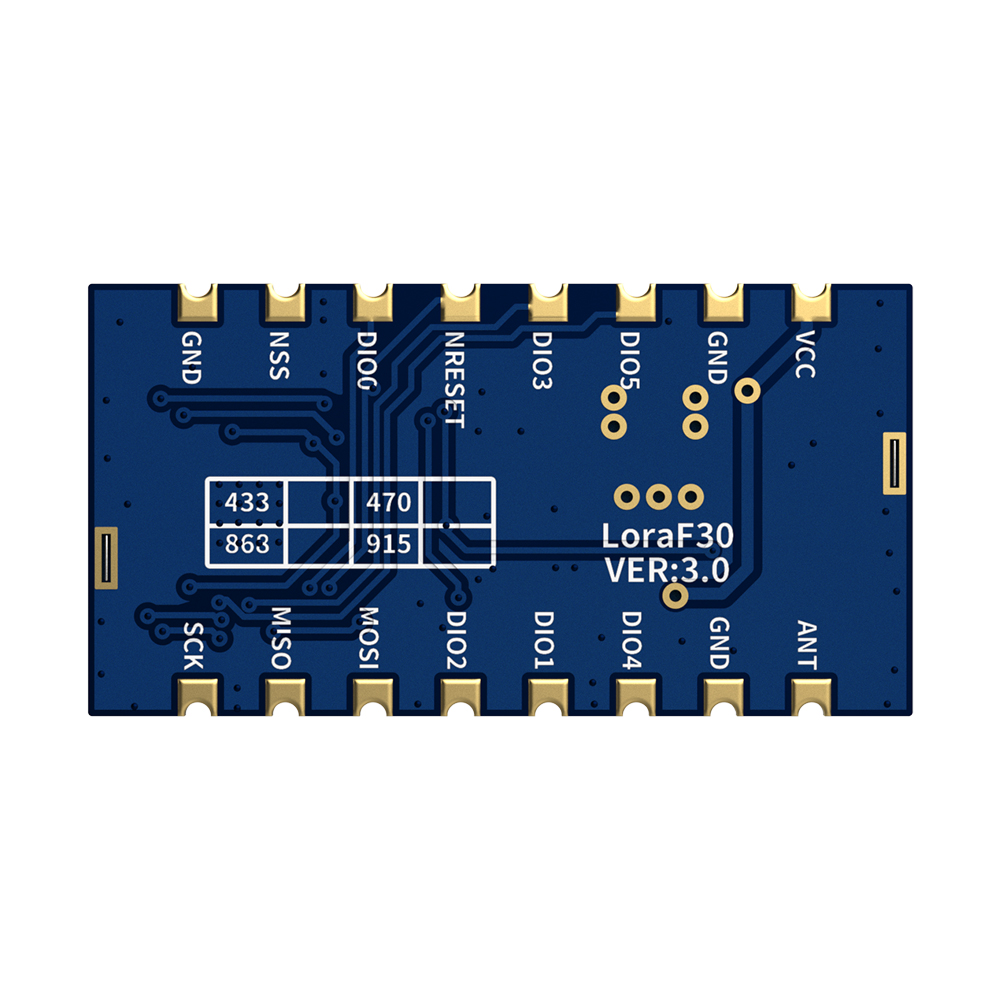

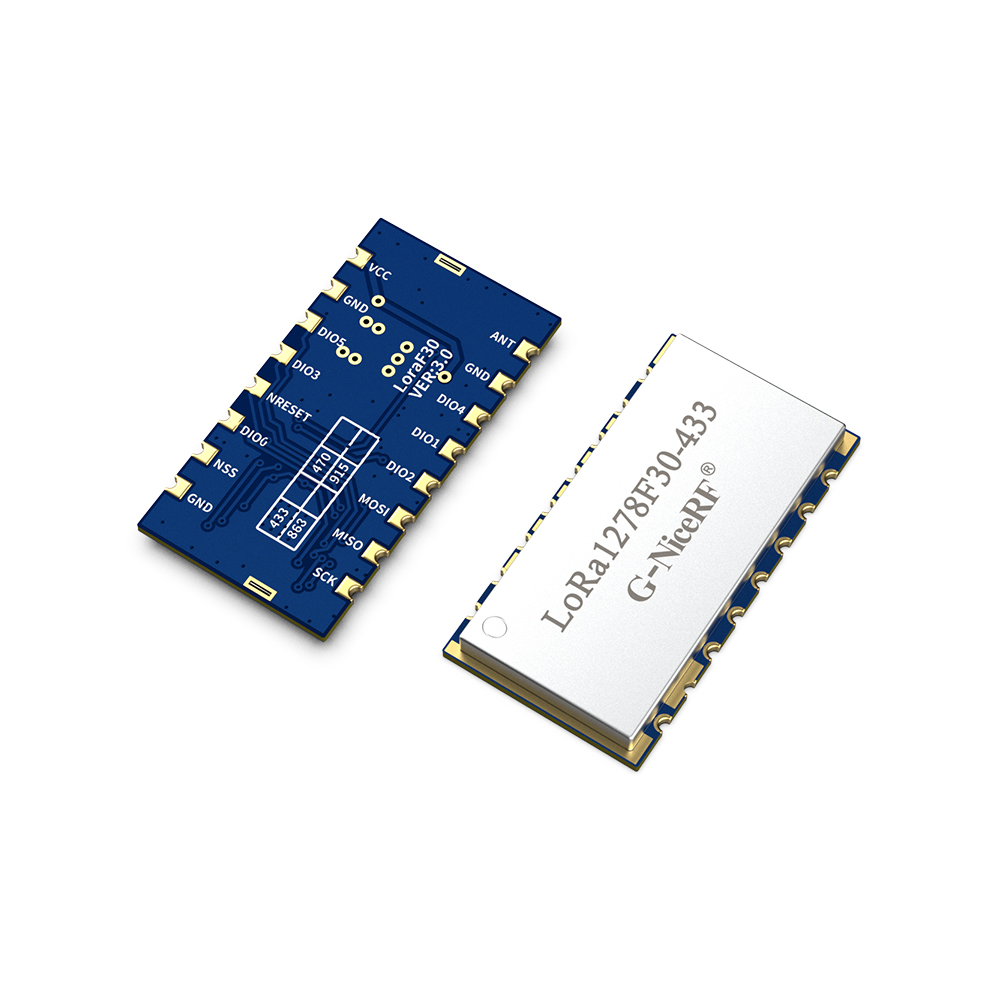

Pin NO.Pin nameDescription
1VCCConnected power supply
2GNDpower ground
3DIO5Digital I/O
4DOI3Digital I/O
5NRESETReset input
6DIO0Digital I/O
7NSSSPI enable
8GNDpower ground
9SCKSerial clock for SPI interface
10MISOSPI Output for SPI data
11MOSISPI Input for SPI data
12DIO2Digital I/O
13DIO1Digital I/O
14DIO4Digital I/O
15ANT GNDAntenna ground
16ANTConnect with 50 ohm coaxial antenna

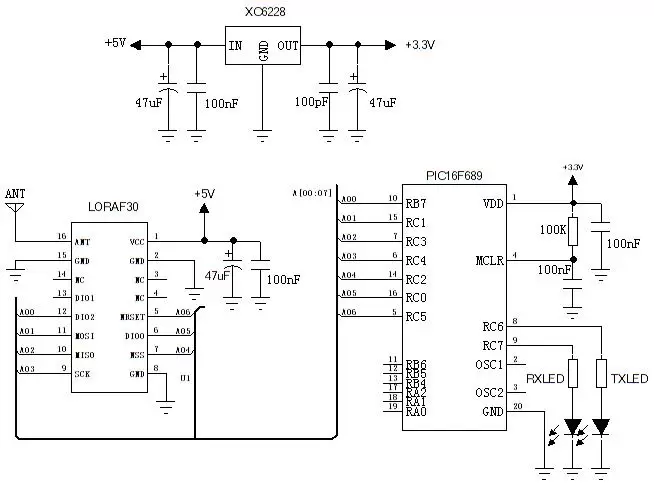

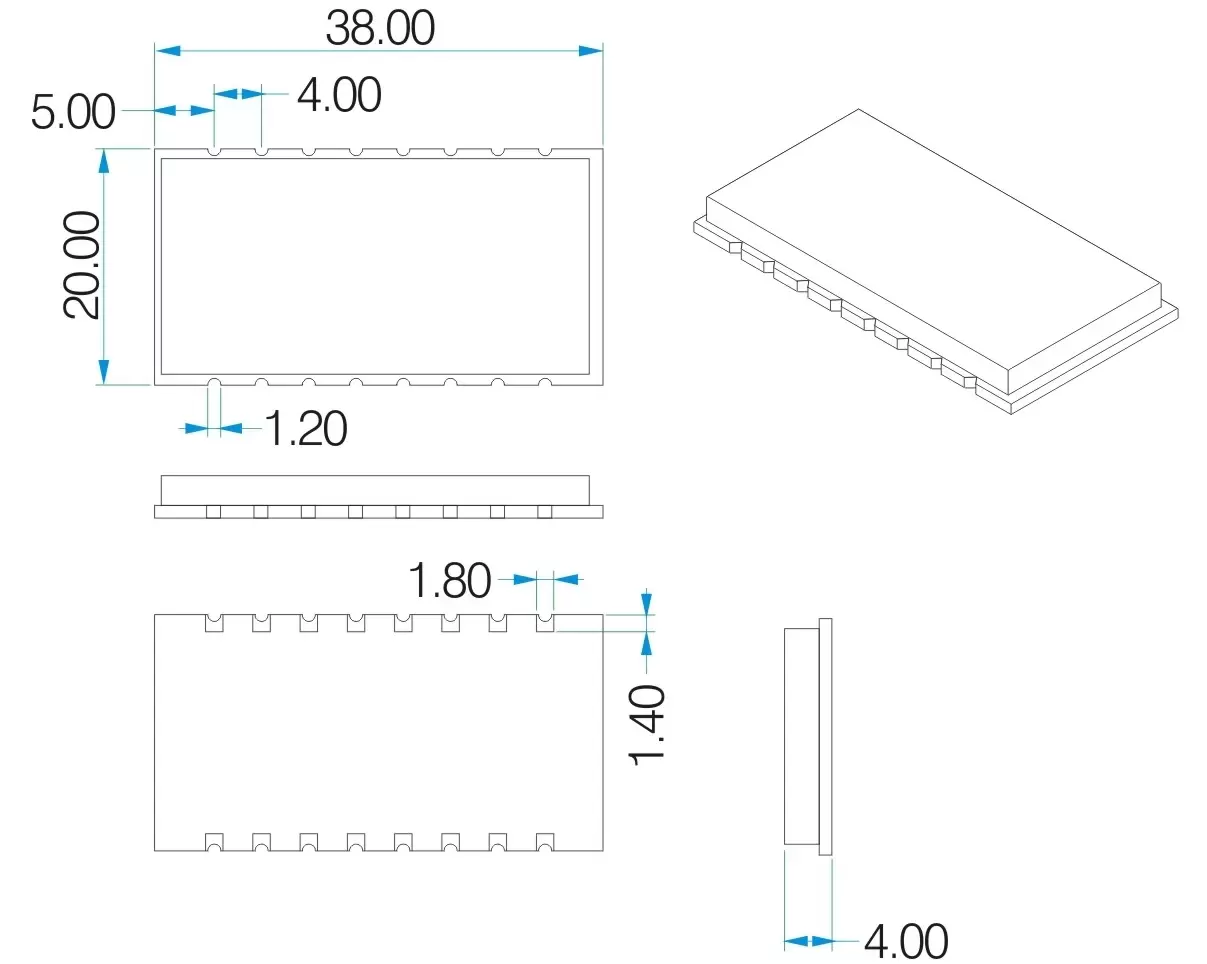

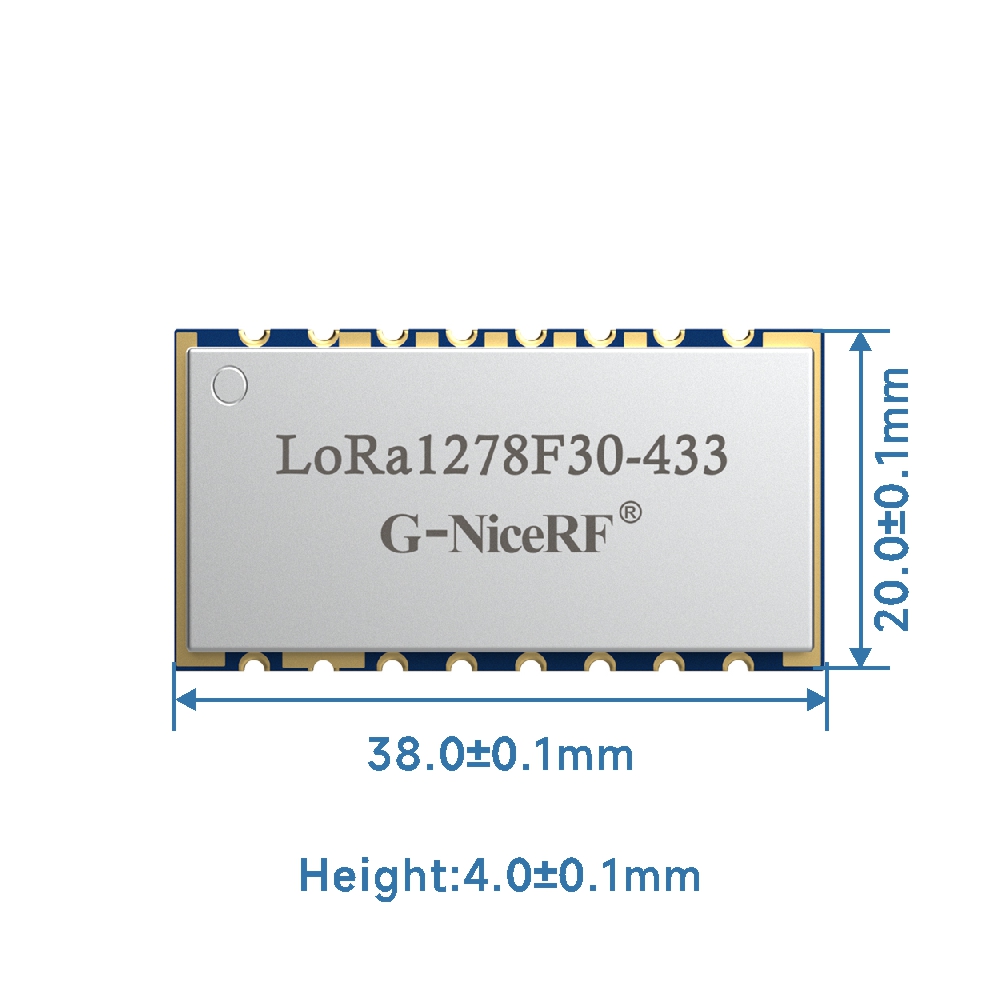

Mechanical Dimensions of SX1278 Wireless Module LoRa1278F30
