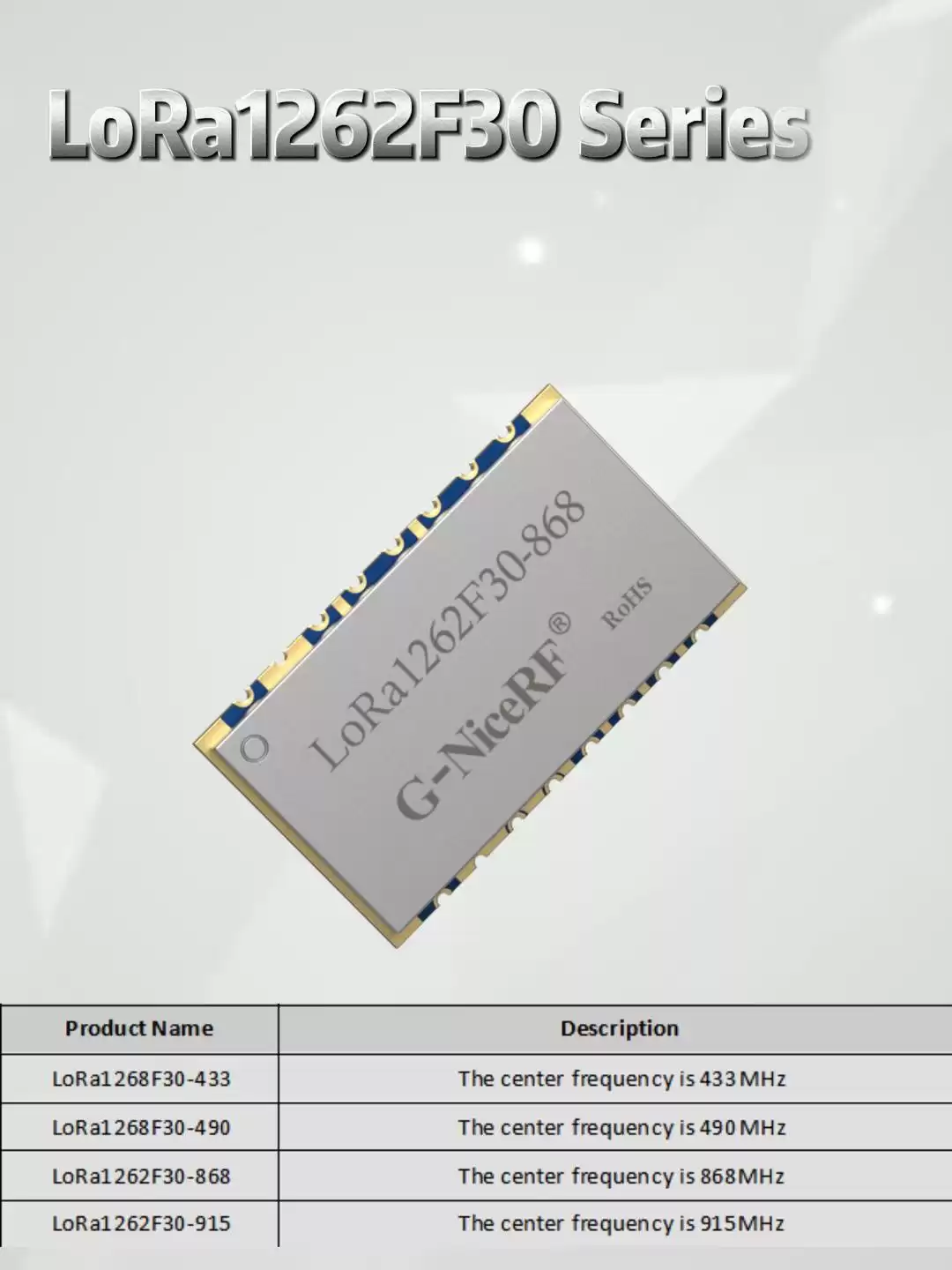

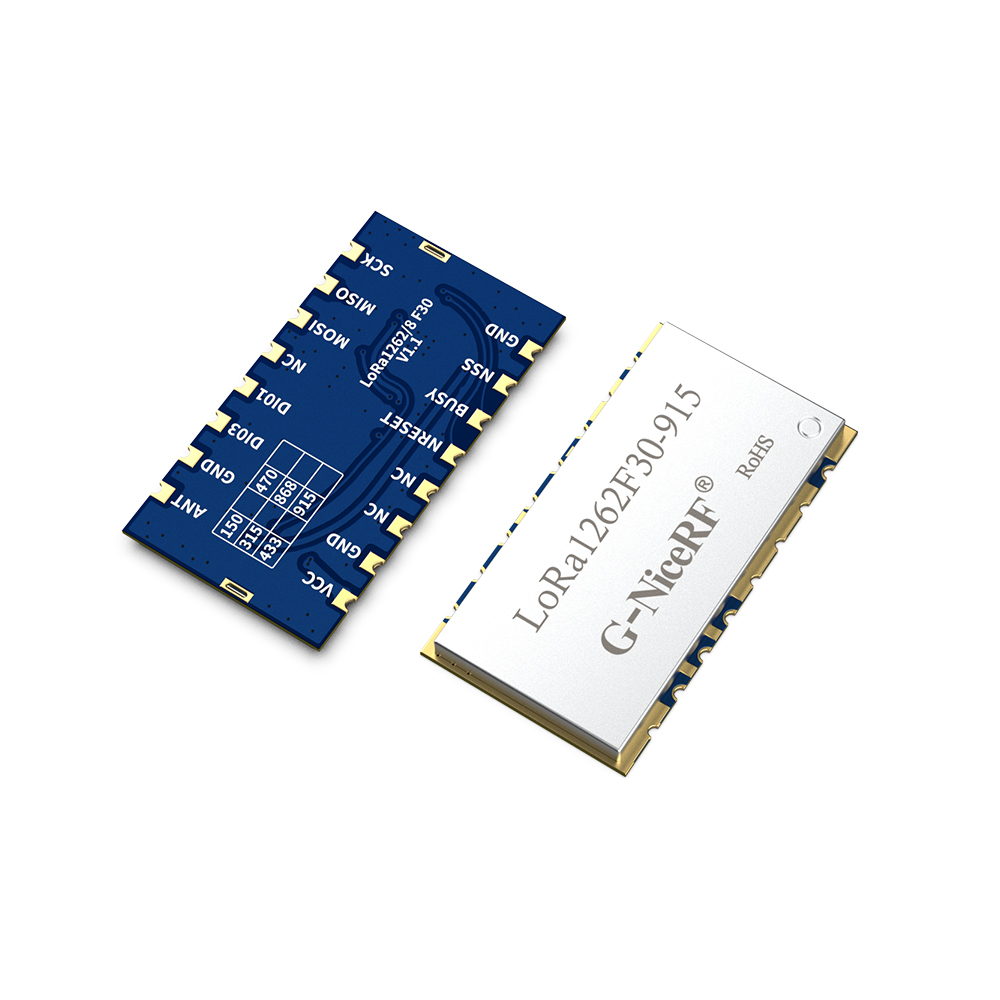

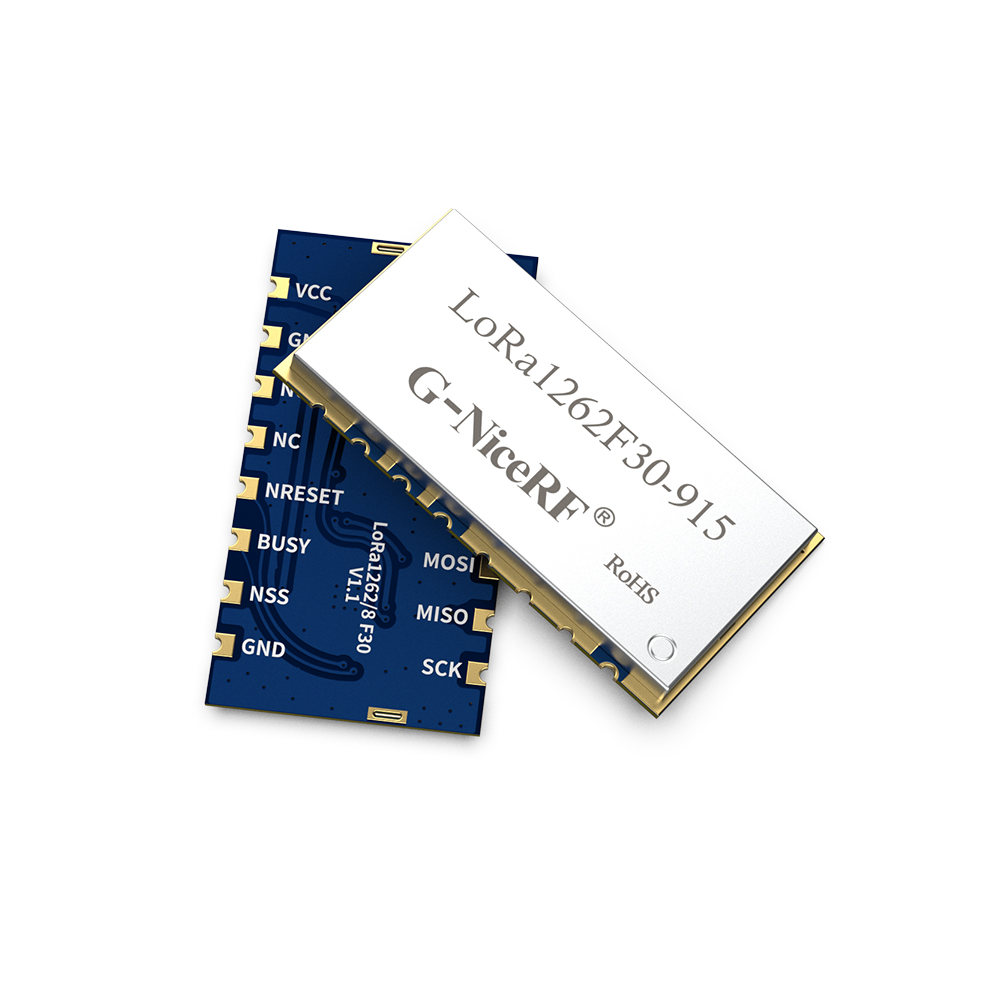

LoRa1262F30 : SX1262 2W TCXO LoRa Module With ESD Protection
- LoRa1262F30 is a LoRa module with ultra-low receiving power consumption and high power, integrates Semtech RF transceiver chip SX1262 which adopts LoRa Spread Spectrum modulation frequency hopping technique. Its communication distance and receiving sensitivity are much better than the current FSK and GFSK modulation. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance.
- LoRa1262F30 strictly uses lead-free process for production and testing, and meets RoHS and REACH standards.
Parameter | Min. | Typ. | Max. | Unit | Condition |
Operation Condition | |||||
Working voltage | 3 | 5 | 6.5 | V | |
Temperature range | -40 | 25 | 85 | ℃ | |
Current Consumption | |||||
RX current | < 5 | mA | @433MHz，470MHz @5V | ||
< 7 | mA | @868MHz，915MHz @5V | |||
TX current | 500 | 600 | mA | @5V 30dBm,433MHz,470MHz | |
600 | 700 | mA | @5V 30dBm,868MHz,915MHz | ||
750 | 850 | mA | @6V 33dBm@433MHz,470MHz | ||
Sleep current | < 2 | uA | @433MHz，470MHz | ||
< 5 | uA | @868MHz，915MHz | |||
RF Parameter | |||||
Frequency range | 400 | 433 | 460 | MHz | @433 MHz |
470 | 490 | 510 | MHz | @470 MHz | |
848 | 868 | 888 | MHz | @868 MHz | |
900 | 915 | 940 | MHz | @915 MHz | |
Data rate | 1.2 | 300 | Kbps | @FSK | |
0.018 | 62.5 | Kbps | @LoRa | ||
Output power | 31 | 33 | dBm | @433MHz,470MHz @5v | |
29 | 31 | dBm | @868MHz,915MHz @5v | ||
Software adjustable power range | 12 | 32 | dBm | @433MHz,470MHz @5v | |
1 | 30 | dBm | @868MHz,915MHz @5v | ||
Receiving sensitivity | -122 | dBm | @FSK data=1.2 Kbps Fdev=50 KHz | ||
-139 | dBm | @Lora BW=62.5 KHz SF = 12 CR=4/5 | |||
| Interface | SPI |
| Chip | SX1262 |
| Frequency | 868MHz,915MHz |
| Modulation | LoRa |
| Output Power | 2W |
Features of SX1262 LoRa Module LoRa1262F30
- Frequency Range：868/915 MHz
- Rx Current < 5mA(7mA @TCXO)
- Sensitivity：-148dBm @LoRa
- Maximum output power：33dBm(2W)@6V
- Modulation mode：LoRa、(G)FSK
- Data transfer rate：0.6-300 Kbps @FSK 0.018-62.5 Kbps@LoRa,
- 256bytes FiFo
Applications of SX1262 LoRa Module LoRa1262F30
- Industrial meter reading
- Parking lot sensor management
- Industrial automation
- Agricultural sensor
- Smart city
- Warehouse management
- Street lights
- Logistics management
- Environmental sensor
- Health products
- Security products
- Remote control

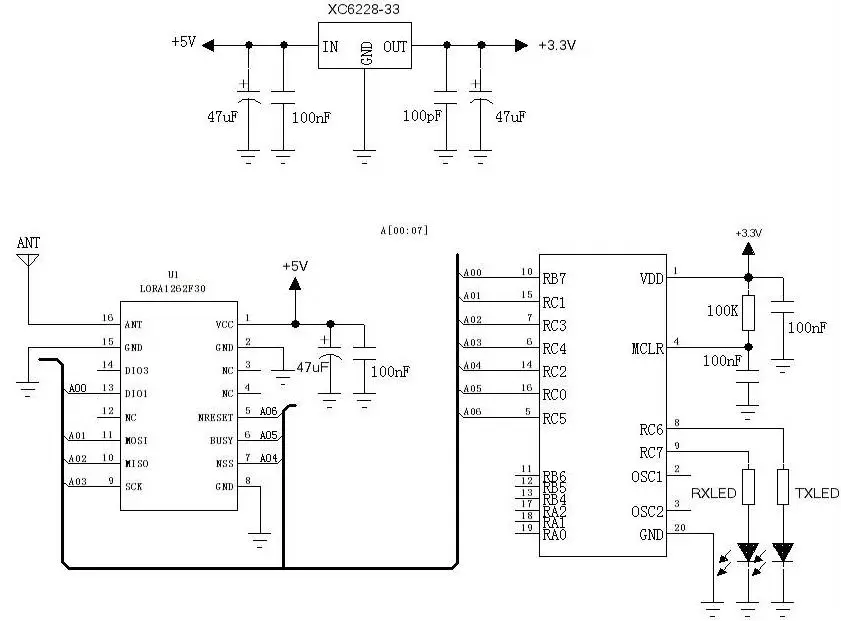

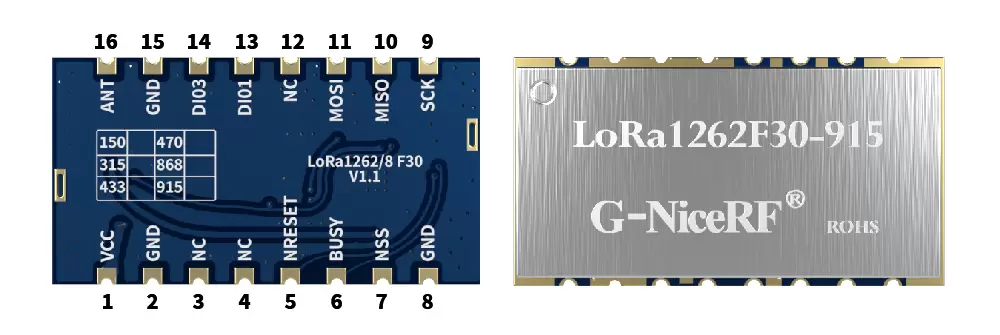

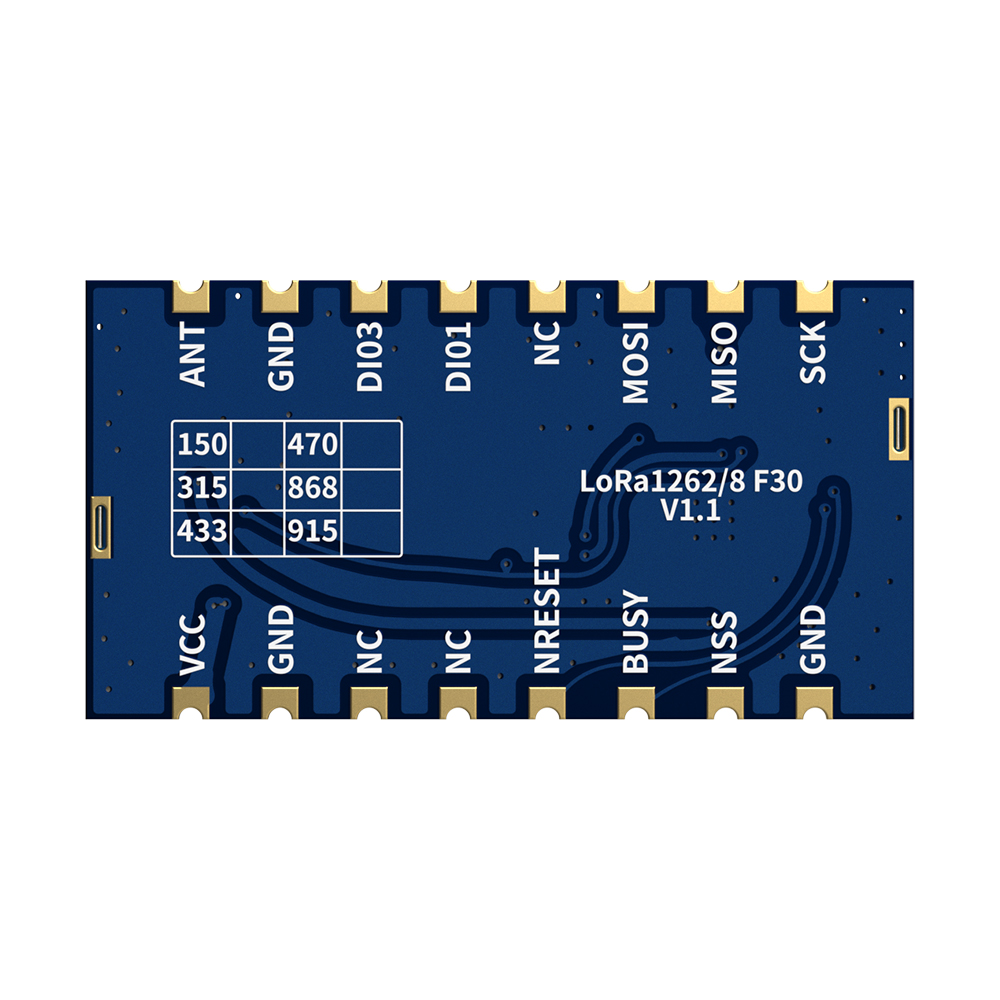

| Pin NO. | Pin name | Description |
| 1 | VCC | Power supply |
| 2 | GND | power ground |
| 3.4.12 | NC | Empty |
| 5 | NRESET | power ground |
| 6 | BUSY | Used for status indication, see chip data for details. |
| 7 | NSS | SPI enable |
| 8 | GND | power ground |
| 9 | SCK | Serial clock for SPI interface |
| 10 | MISO | SPI Output for SPI data |
| 11 | MOSI | SPI Input for SPI data |
| 13 | DIO1 | Digital I/O, customizable |
| 14 | DIO3 | Digital I/O, customizable |
| 15 | GND | power ground |
| 16 | ANT | Connect with 50 ohm coaxial antenna |
