MiniF27：500mw LoRa Wireless transceiver module
MiniF27 wireless module is designed using Semtech's LoRa chip, featuring a high-precision crystal oscillator, ultra-low receiving and sleep currents, and a sensitivity of -148dBm. It can wake up the microcontroller periodically while maintaining low power consumption. The module's antenna switch is internally controlled by the chip, reducing the resource demand on the external MCU. Despite its ultra-compact size (same as the LoRa1262), the MiniF27 delivers an output power of up to 27dBm (500mW). Its high integration, small size, and high power make the MiniF27 highly advantageous in IoT and battery-powered applications.
MiniF27 strictly uses lead-free technology for production and testing, and meets RoHS and Reach standards.
Parameter | Min | Typ | Max | Unit | Condition |
Operation Condition | |||||
Working voltage | 1.8 | 3.3 | 3.6 | V | Module + 3.3V pin |
3.3 | 4.0 | 5.0 | V | Module + VCC_PA pin | |
Temperature range | -40 | 85 | ℃ | ||
Current Consumption | |||||
RX current | 6 | mA | @DCDC Mode | ||
TX current | 500 | mA | @5v,29dBm | ||
Sleep current | 1 | uA | |||
RF Parameter | |||||
Frequency range | 410 | 433 | 450 | MHz | @433MHz |
470 | 490 | 510 | MHz | @470MHz | |
Modulation Rate | 0.018 | 62.5 | kbps | @SX1262 | |
1.76 | 62.5 | kbps | @LLCC68 | ||
0.6 | 300 | kbps | @FSK | ||
Output power | 0 | 27 | dBm | ||
Receiving sensitivity | -148 | dBm | @SX1262, BW=10.4KHz SF =12 | ||
-129 | dBm | @LLCC68, BW=125KHz SF =9 | |||
Features
- Frequency Range:433/470 MHz （customizable150-960 MHz)
- Sensitivity：-148dBm @LoRa SX1262
- 256 bytes FiFo
- Maximum output power：29 dBm（800mW）
- LoRa, (G)FSK modulation
Data transfer rate: 0.6-300 Kbps @FSK
Applications
Industrial meter reading
Parking lot sensor management
Industrial automation
Agricultural sensor
Smart city
Remote control
Street lights
Logistics management
Environmental sensor
Health products
Security products
Warehouse management

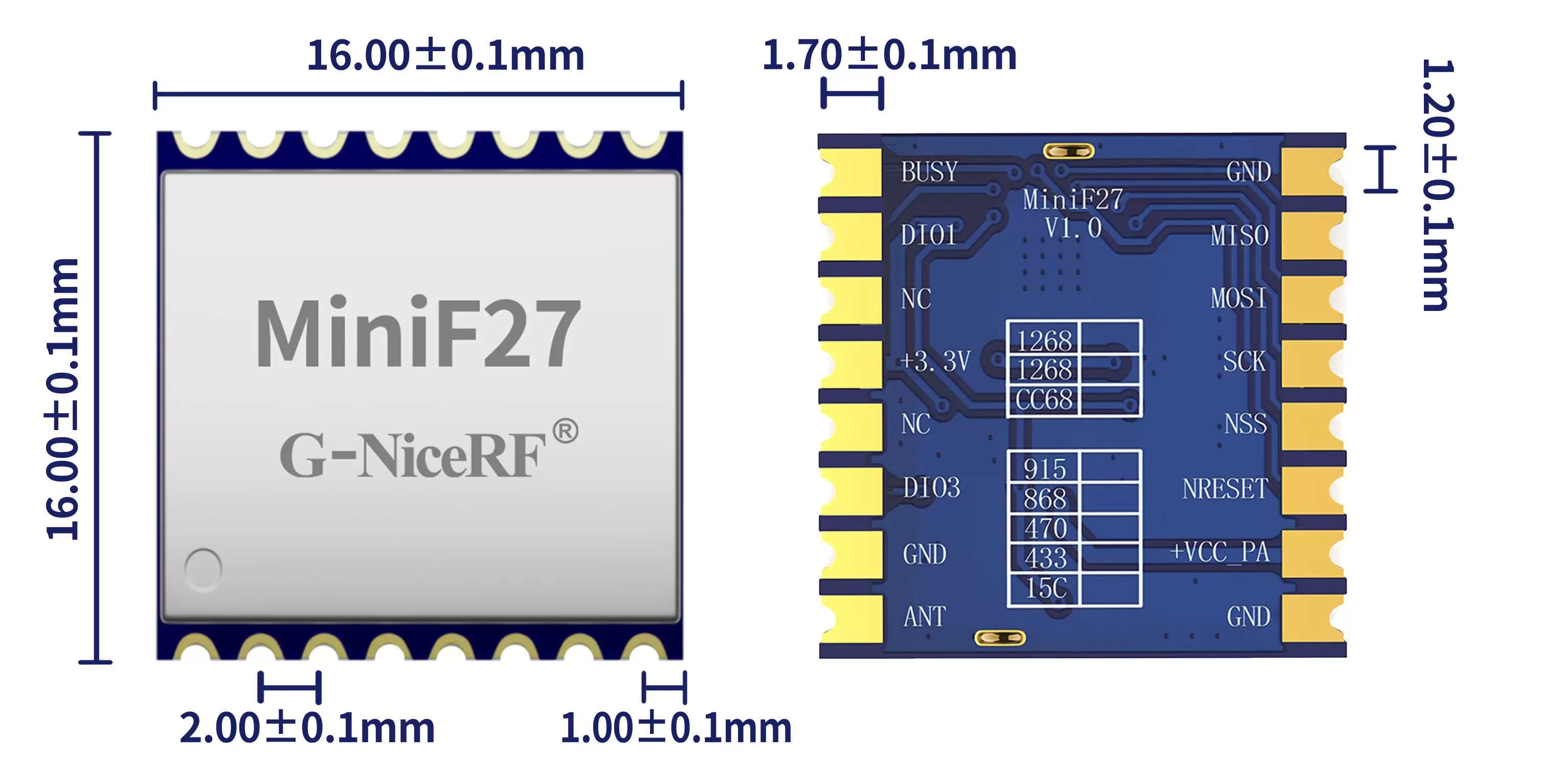

Pin NO | Pin name | IO Level | Description |
1,8,10 | GND | power ground | |
2 | MISO | 0-3.3V | SPI Output for SPI data |
3 | MOSI | 0-3.3V | SPI Input for SPI data |
4 | SCK | 0-3.3V | SPI Clock Input |
5 | NSS | 0-3.3V | SPI Chip Select Input |
6 | NRESET | 0-3.3V | Reset input |
7 | +VCC_PA | power supply pin connected to the internal amplifier. The higher the voltage, the higher the power. Voltage range: 3.3-5V | |
9 | ANT | Connect to a 50Ω coaxial antenna | |
11 | DIO3 | 0-3.3V | It can be customized as an interrupt signal indicator. For details, refer to the chip documentation. |
12,14 | NC | ||
13 | +3.3V | Chip power supply pin, voltage range: 1.8-3.6V | |
15 | DIO1 | 0-3.3V | Can be customized as interrupt signal indication, see chip data for details |
16 | BUSY | 0-3.3V | Used for status indication, see datasheet for details. |
