Modulation: DSSS
Interfacce: SPI
Output Power: 100mW
Frequency: 433MHz,470MHz,868MHz,915MHz

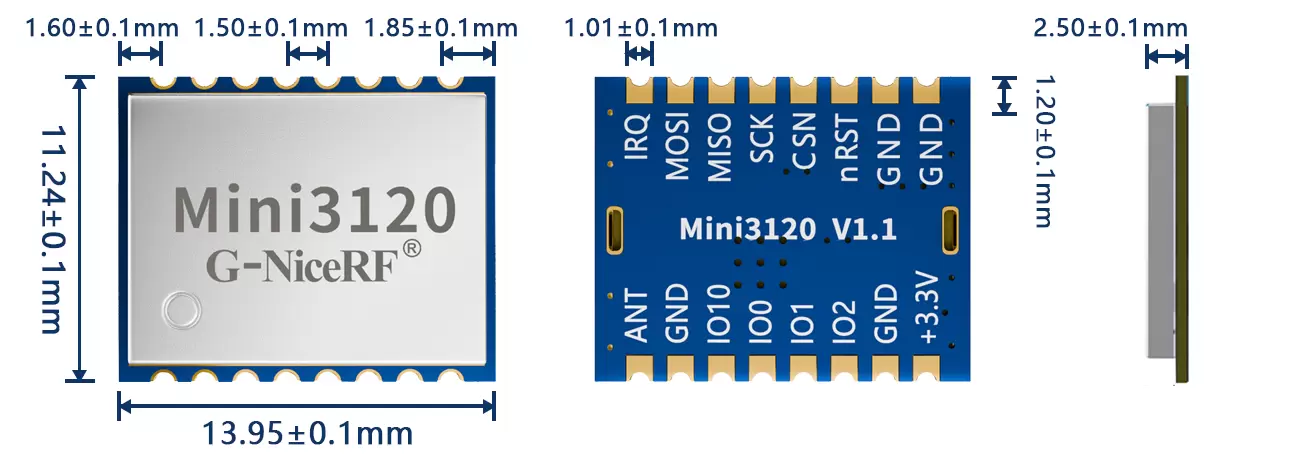

Size (mm):16.19*14.48

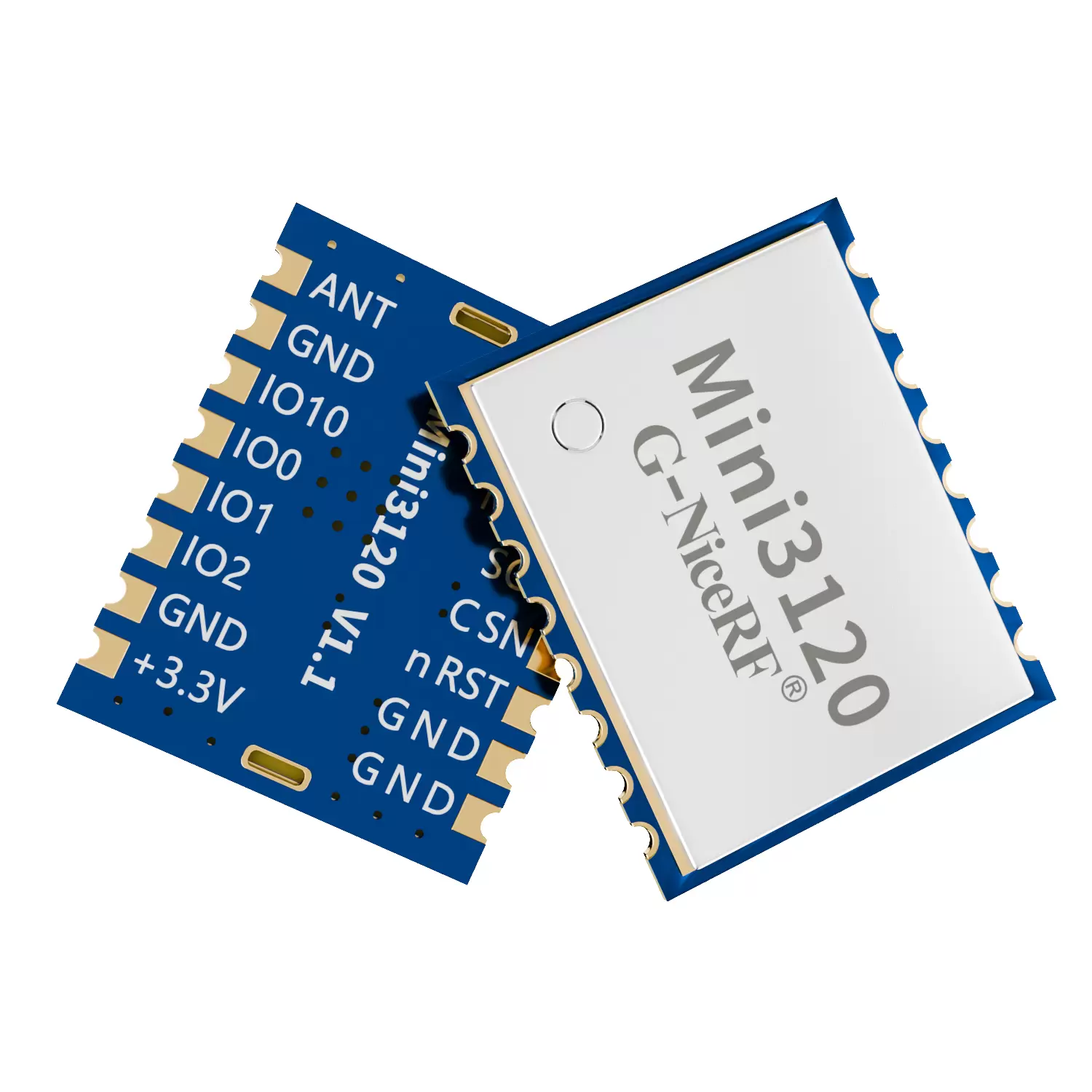

Mini3120 is a high-performance, low-power wireless transceiver chip that supports half-duplex wireless communication. It operates in the 433/470/868/915 MHz frequency bands and can be customized to support frequencies from 190 to 1110 MHz. This chip features strong anti-interference capability, high sensitivity, high transmission power, low power consumption, and long communication range. It offers a maximum receiving sensitivity of -124 dBm and a maximum output power of 20 dBm Additionally, it supports various data packet formats and multiple encoding/decoding schemes, allowing for flexible integration into a wide range of application scenarios.
Parameter | Min | Typ | Max | Unit | Condition |
Operation Condition | |||||
Working voltage | 2 | 3.3 | 3.8 | V | |
Temperature range | -40 | 85 | ℃ | ||
Current Consumption | |||||
RX current | 6.1 | mA | @DCDC Mode | ||
<10 | mA | @LDO Mode | |||
TX current | <120 | mA | @20dBm | ||
Sleep current | <1 | uA | |||
RF Parameter | |||||
Frequency range | 408 | 433 | 450 | MHz | @433MHz |
470 | 490 | 510 | MHz | @470MHz | |
850 | 868 | 890 | MHz | @868MHz | |
900 | 915 | 930 | MHz | @915MHz | |
Modulation Rate | 2 | 500 | Kbps | 2(G)FSK | |
Output power | -20 | 20 | dBm | ||
Receiving sensitivity | -124 | dBm | @DR=2.4Kpbs,Fdev=1.2kHz | ||
Operating Voltage Range: 2.0-3.8V
Frequency Range:433/470/868/915 MHz
Sensitivity:-124dBm@2.4Kbps
Maximum output power:20 dBm
Low receive current: 6.1mA@DCDC
Sleep current < 1.0uA
Data transfer rate: 2-500Kbps@2(G)FSK,MSK
Supports RSSI and LQI
Supports Automatic Frequency Control (AFC)
Supports Duty Cycle reception and transmission
Supports automatic ACK
Supports transparent transmission and packet mode
Supports data whitening, FEC, CRC,Manchester encoding, and other features
Smart Water Management
Smart Agriculture
Smart Healthcare
Smart Community
Smart Firefighting
Smart Factory

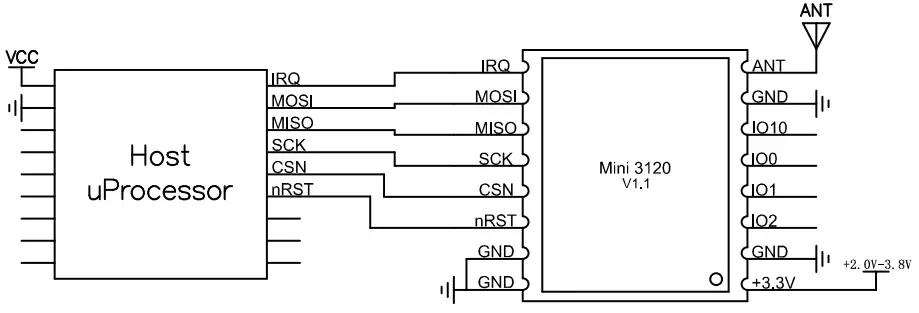

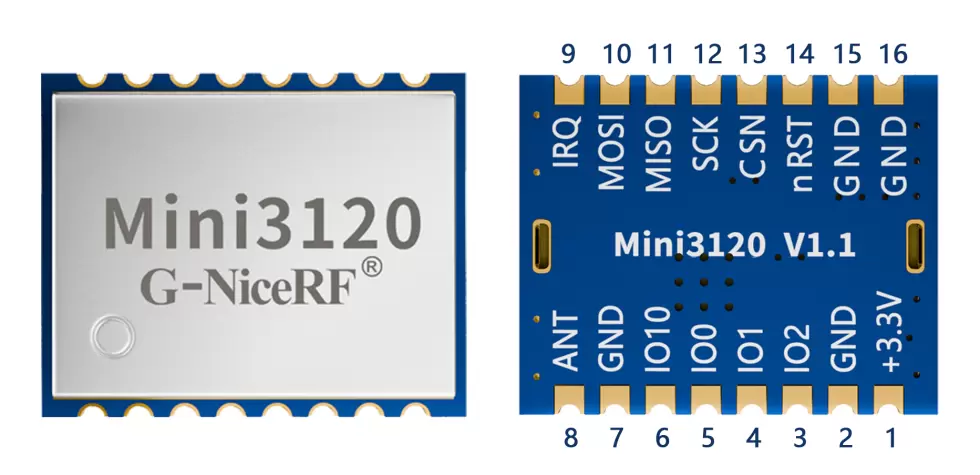

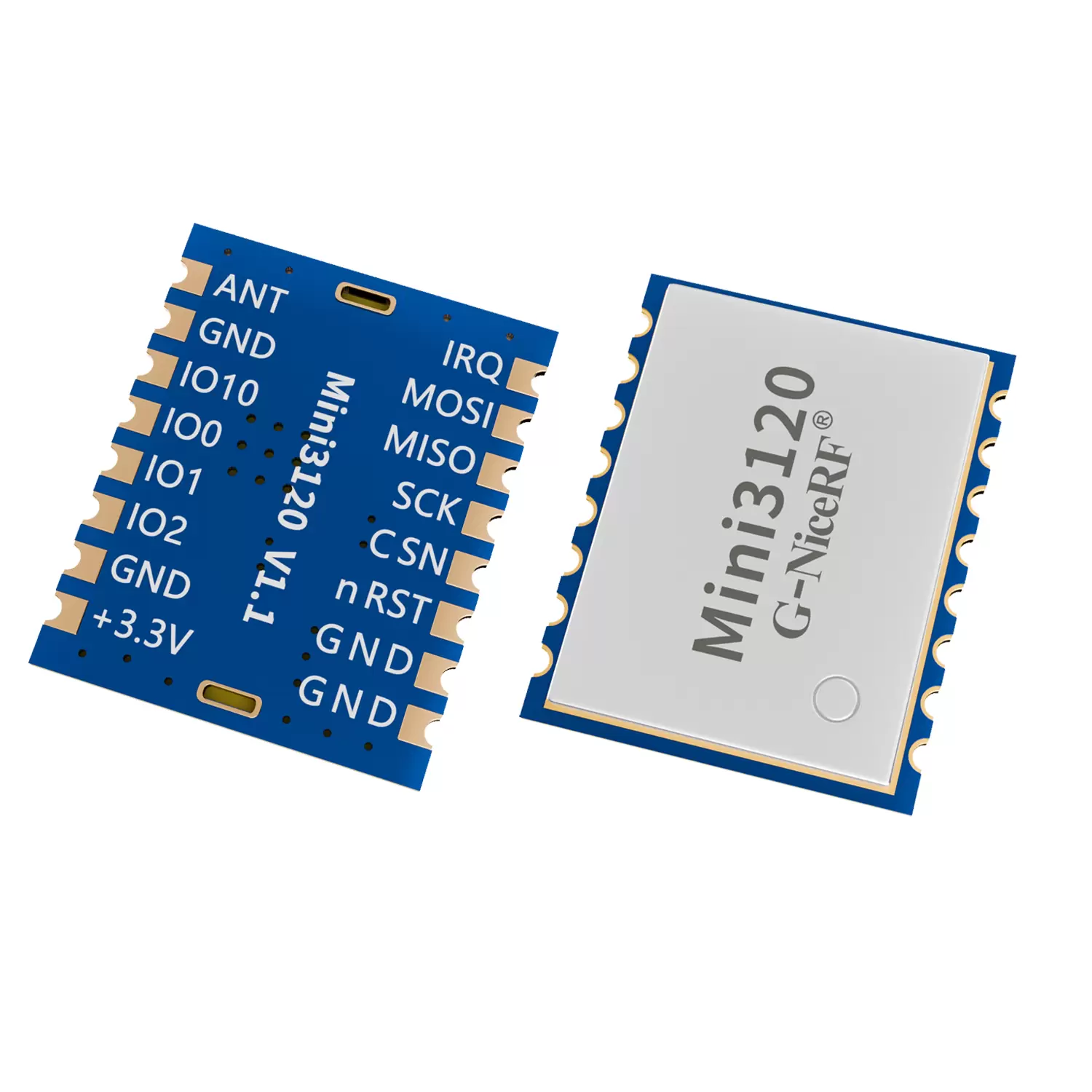

Pin NO | Pin name | IO | Description |
1 | +3.3v | External Power Supply Positive Terminal | |
2,7,15,16 | GND | External Power Supply Negative Terminal | |
3 | IO2 | 0-VCC | Connect to the chip's GPIO02 pin; refer to the chip datasheet for specific functions |
4 | IO1 | 0-VCC | Connect to the chip's GPIO01 pin; refer to the chip datasheet for specific functions |
5 | IO0 | 0-VCC | Connect to the chip's GPIO00 pin; refer to the chip datasheet for specific functions |
6 | IO10 | 0-VCC | Connect to the chip's GPIO10 pin; refer to the chip datasheet for specific functions |
8 | ANT | Connect to an external 50Ω antenna | |
9 | IRQ | 0-VCC | Interrupt Signal |
10 | MOSI | 0-VCC | SPI Data Input Signal |
11 | MISO | 0-VCC | SPI Data Output Signal |
12 | SCK | 0-VCC | SPI Serial Clock |
13 | CSN | 0-VCC | SPI Chip Select Signal |
14 | nRST | 0-VCC | Reset Pin |
