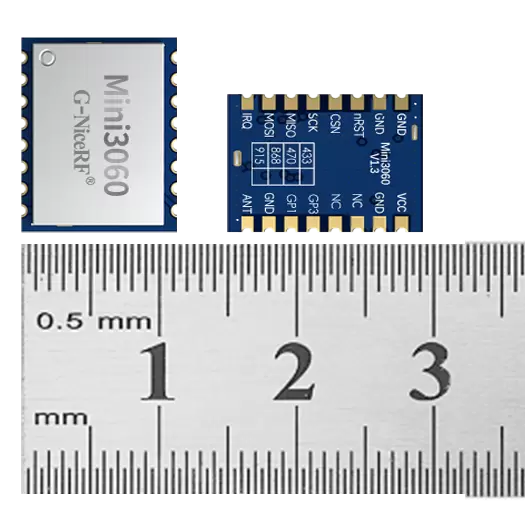

Mini3060: 100mW Wireless transceiver module Ultra-compact size
Mini3060 is a module based on the low-power, long-range wireless transceiver chip that uses DSSS modulation and demodulation technology. It supports half-duplex wireless communication and utilizes a TCXO crystal oscillator, offering high anti-interference capability, high sensitivity, low power consumption, and ultra-long transmission range. It features a maximum sensitivity of -129dBm and a maximum output power of 20dBm, providing an industry-leading link budget, making it the best choice for long-distance transmission and applications with high reliability requirements.
Mini3060 strictly uses lead-free technology for production and testing, complying with RoHS and Reach standards.
Parameter | Min | Typ | Max | Unit | Condition |
Operation Condition | |||||
Working voltage | 2 | 3.3 | 3.6 | V | |
Temperature range | -40 | 85 | ℃ | ||
Current Consumption | |||||
RX current | 4.5 | mA | @DCDC Mode | ||
7.4 | mA | @LDO Mode | |||
TX current | <110 | mA | @20dBm | ||
Sleep current | <1 | uA | |||
RF Parameter | |||||
Frequency range | 408 | 433 | 450 | MHz | @433MHz |
470 | 490 | 510 | MHz | @470MHz | |
850 | 868 | 890 | MHz | @868MHz | |
900 | 915 | 930 | MHz | @915MHz | |
Modulation Rate | 0.5 | 59.9 | Kbps | LoRa | |
Output power | -30 | 20 | dBm | ||
Receiving sensitivity | -129 | dBm | @LoRa BW=125KHz_SF = 9_CR=4/5 | ||
Features of Mini3060 Wireless Module
Operating Voltage Range: 2.0-3.6V
Frequency Range:433/470/868/915 MHz
Sensitivity：-129dBm @125KHz,0.5Kbps
Maximum output power：20 dBm
Low receive current: 4.5mA@DCDC
Sleep current < 1.0uA
Data transfer rate: 0.5-59.9Kbps @LoRa
Supports bandwidth: 125/250/500KHz
Supports SF factor: 5–9, automatic recognition
Supports data rates: 4/5, 4/6, 4/7, 4/8
Supports CAD function
Applications of Mini3060 Wireless Module
Smart Water Management
Smart Agriculture
Smart Healthcare
Smart Community
Smart Firefighting
Smart Factory

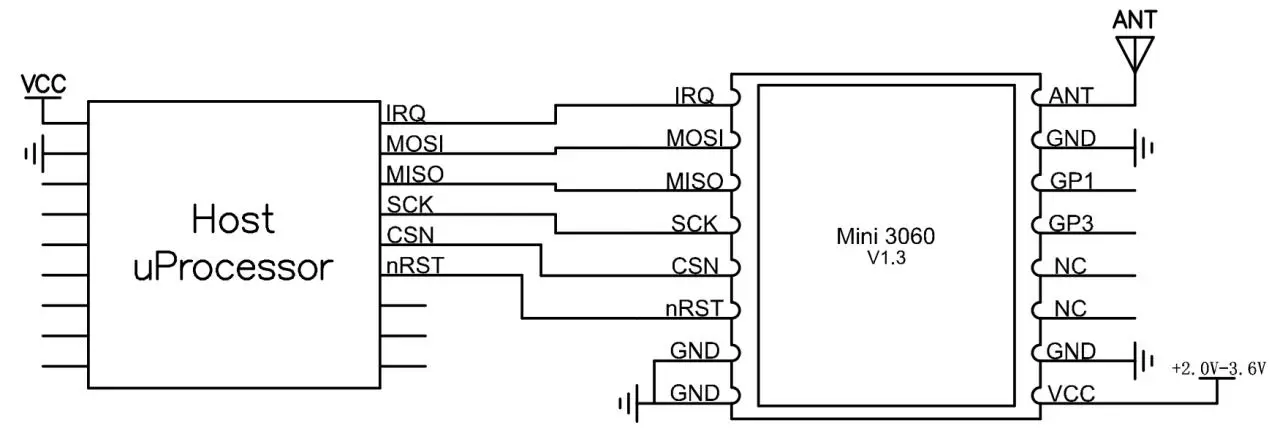

Pin NO | Pin name | IO | Description |
1 | VCC | External Power Supply Positive Terminal | |
2,7,15,16 | GND | External Power Supply Negative Terminal | |
3,4, | NC | ||
5 | GP3 | 0-3.3V | Connect to the chip's GPI003 pin; refer to the chip datasheet for specific functions |
6 | GP1 | 0-3.3V | Connect to the chip's GPI001 pin; refer to the chip datasheet for specific functions |
8 | ANT | Connect to an external 50Ω antenna | |
9 | IRQ | 0-3.3V | Interrupt Signal |
10 | MOSI | 0-3.3V | SPI Data Input Signal |
11 | MISO | 0-3.3V | SPI Data Output Signal |
12 | SCK | 0-3.3V | SPI Serial Clock |
13 | CSN | 0-3.3V | SPI Chip Select Signal |
14 | nRST | 0-3.3V | Reset Pin |
