DEMO Board For Uart RF Module SV Series

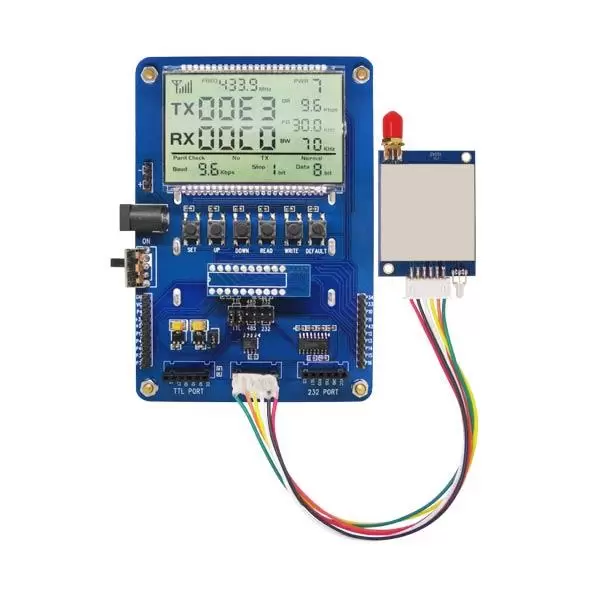

SV series DEMO Board is used to test uart rf module of SV610 /SV611/SV651/SV652 series, for testing system and distance, etc. Without different PC software, Using the DEMO board can also query and change SV series data radio module's RF transceiver frequency, transmit power level, RF rate, UART interface communication rate, parity, data bits and stop bit parameters. With TTL/ RS232/ RS485 port, it can match different level port.
Working mode of Uart RF Module SV series
1) Normal transmission mode:
Regularly send packets (in the setting mode, temporarily no send packets);
2) Normal reception mode:
Power on, module in the reception state, receiving data packets and forward the correct data packets;
3) Often transmission mode:
Module in often-transmission state;
4) Often reception mode:
Module in often reception state (no forward data);
5) Sleep mode:
Module in standby state.
Button Functions of Uart RF Module SV series
1) SET button
In setting mode, press it , jump off setting mode after finish the final parameter,
2) UP / Down keys
In setting mode, press it, modify the corresponding parameters.

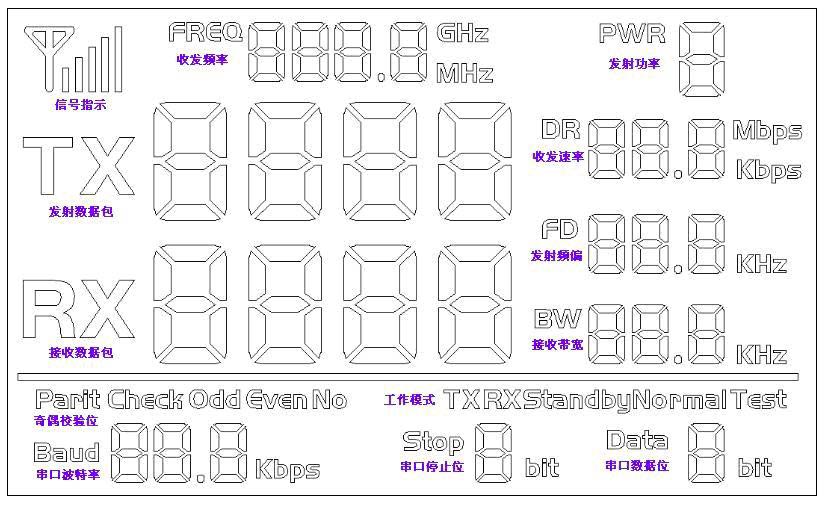

LCD display:
