RF4463Pro : Demo Board
 RF4463Pro : Demo Board

RF4463Pro : Demo Board

Users can use the Demo board to set the parameters of the RF module such as working mode /frequency /transmitter power / transmission data rate through the buttons, and measure the wireless communication distance.

Working Mode of RF Module RF4463Pro

1) Master Mode: Send 1 packet per second, and waiting for the acknowledge.

2) Slave Mode: Stay in Rx mode to wait for the data from the master, it will send back.

3) The acknowledged signal after received the data from the master.

4) Tx Test Mode: RF module continuously transmit signal.

5) Rx Test Mode: RF module is always in Rx mode.

6) Standby Mode: RF module is always in standby state.


Button Operation of RF Module RF4463Pro

1) [SET] Button

Press the [SET] button to enter setting mode if not in setting mode. In setting mode, press[SET]button to toggle between the set parameters: working mode /frequency/ output power / data rate / spreading factor/ Bandwidth. The related LCD ICON will flash to indicate.


2) [UP] Button

In setting mode, press the [UP] button to increase the value of flash icon.

Note: The DEMO board has FLASH memory inside, all the setting parameters will behave automatically and keep unchanged even power-off.

Interface SPI
Chip nRf24L01+,SX126X,SX127X,SX128X,si4463,si4438,si4432,si4431,CC1101,others
Frequency 150MHz,315MHz,433MHz,470MHz,490MHz,868MHz,915MHz,2.4GHz,others
Modulation ASK,(G)FSK,LoRa
Output Power 1mW,10mW,100mW,400mW,500mW,1W,1.6W,2W,3W,5W,30W

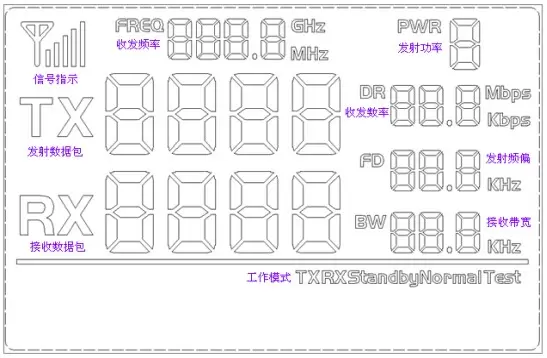

The LCD Full Segment is as below of RF Module RF4463Pro:

Users can set the frequency, power, transceiver speed and other parameters through the keys.

The LCD Full Segment of Demo Board For RF Module RF4463Pro
