RF2401F20 : Interactive Demo Board For nRF24L01+ 2.4 GHz Wireless Transceiver Module
RF2401F20 : Interactive Demo Board For nRF24L01+ 2.4 GHz Wireless Transceiver Module

RF2401F20 : Interactive Demo Board For nRF24L01+ 2.4 GHz Wireless Transceiver Module

Users can use the Demo board to set the parameters of the 2.4 GHz transceiver RF2401F20 such as working mode /frequency /transmitter power / transmission data rate through the buttons, and measure the wireless communication distance.

Working mode of 2.4 GHz Transceiver RF2401F20

1) Master Mode: Send 1 packet per second, and waiting for the acknowledge;

2) Slave Mode: Stay in Rx mode to wait for the data from the master, it will send back;

3) The acknowledged signal after received the data from the master.

4) Tx Test Mode: RF module continuously transmit signal;

5) Rx Test Mode: RF module is always in Rx mode;

6) Standby Mode: RF module is always in standby state;



Button Operation of 2.4 GHz Transceiver RF2401F20

1) [SET] Button

Press the [SET] button to enter setting mode if not in setting mode. In setting mode,

press[SET]button to toggle between the set parameters: working mode /frequency/ output power / data rate / spreading factor/ Bandwidth. The related LCD ICON will flash to indicate.



2) [UP] Button

In setting mode, press the [UP] button to increase the value of flash icon.

Note: The DEMO board has FLASH memory inside, all the setting parameters will behave automatically and keep unchanged even power-off.

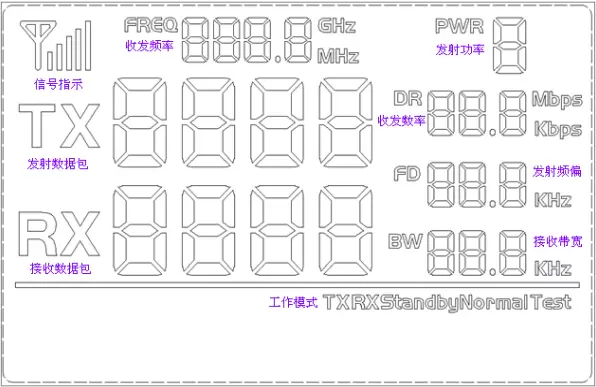

The LCD Full Segment is as below:

Users can set the frequency, power, transceiver speed and other parameters through the keys.

The LCD Full Segment of Demo Board For 2.4 GHz Transceiver RF2401F20
