  • The LoRa611DZ Uart LoRa modem is designed for 100mw output power and is available in TTL/RS232/RS485 levels. It is widely used in wireless remote transmission control.
  • LoRa611DZ strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.
  • Note: The LoRa Pro series can be configured to be compatible with our previous Uart LoRa modules.
  • Hardware Features:
  • 1. Optional interface: TTL, RS232, RS485.
  • 2. Built-in hardware anti-crash self-reset circuit to resist strong external interference signals.
  • 3. Overcurrent, overvoltage and reverse connection protection circuit.
  • Software Features:
  • 1. AES128 data encryption.
  • 2. LBT (Listen Before Talk).
  • 3. Node/route/node+route optional in MESH mode.
Parameters Min. Typ.  Max. Unit Condition
Working Condition
Voltage range 3.3 5.0 6.5 V
Operating Temperature -40 25 +85
Current Consumption
Rx current   <15   mA TTL level
Tx current   < 130   mA
Sleep current   < 200   uA
RF Parameters
Frequency range   414.92 433.92 453.92 MHz @433MHz
470.92 490.92 509.92 MHz @470MHz
849.92 868.92 888.92 MHz @868MHz
895.92 914.92 934.92 MHz @915MHz
Data rate 91 656 17353 bps @LoRa
Output power 4 20 +20 dBm Software level 7 adjustable
Sensitivity   -139   dBm @91bps
Interface TTL,RS232,RS485
Network MESH
Frequency 433MHz,470MHz,868MHz,915MHz
Modulation LoRa
Output Power 100mW

Features of LoRa Modem LoRa611DZ

  • Transmission distance in the open area up to 5000 meters @ 91bps
  • Frequency band: 433/470/868/915 MHz for option
  • AES128 Data encryption
  • MESH & Node working mode
  • 40 channels
  • LoRa modulation
  • Interface: TTL/RS232/RS485
  • Sensitivity: -139 dBm
  • Max output power: 100mW(+20dBm)
  • Working voltage: 3.3 ~ 6.5 V
  • Working temperature: -40 ~ +85 °C

Applications of LoRa Modem LoRa611DZ

  • Remote control
  • Remote meter reading
  • Industrial data collection
  • Home automation telemetry
  • Wireless data communication
  • Access control system

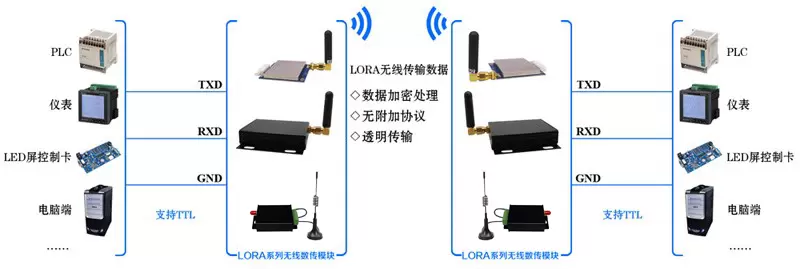

Typical application circuit of LoRa Modem LoRa611DZ

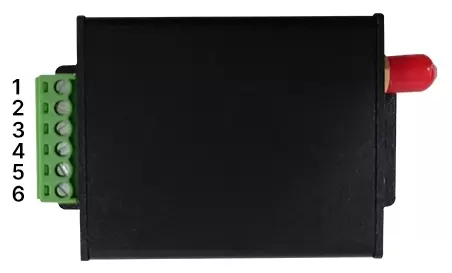

Pins of LoRa Modem LoRa611DZ

Pin No. Definition Description
1 VCC Connected to the positive power supply (typical 12V)
2 GND Connected to ground
3 TXD/A Serial communication data transmission
4 RXD/B Serial communication data reception
5 SET Configuration parameter enable (low level enable parameter configuration, default high level output)
  6 CS Module enable (low-level sleep, default high-level output)

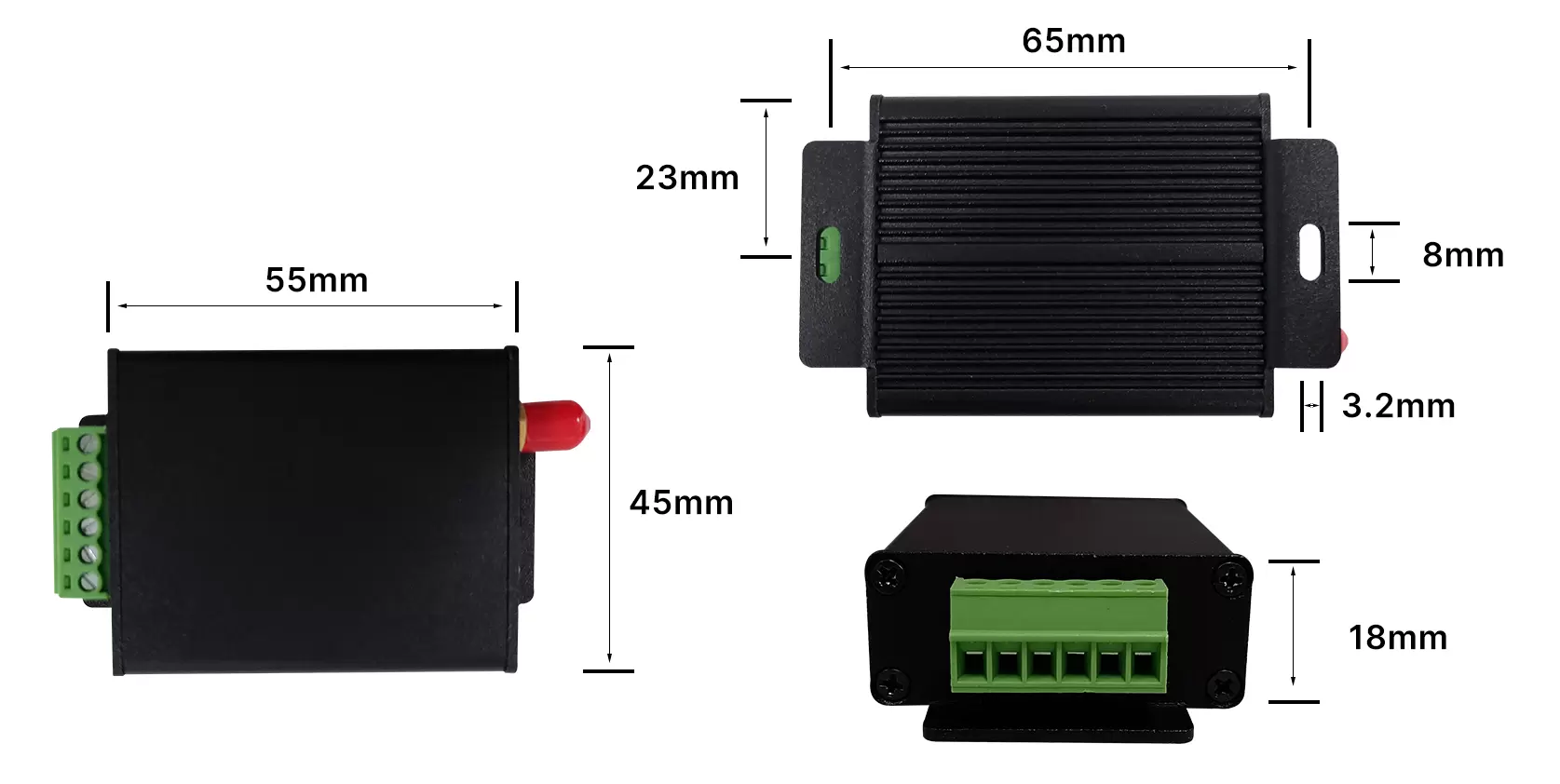

Mechanical dimensions of LoRa Modem LoRa611DZ
