  • The LoRa Pro module is a new series of upgraded networking wireless communication modules from Wireless. It is based on Semtech's SX127X chip and uses advanced LoRa spread spectrum modulation frequency hopping technology to achieve high sensitivity. The penetrating power and communication distance are far superior to the current FSK and GFSK products, and have stronger anti-interference. In order to meet the application needs of different customers, we design the module software of this series as an all-in-one way. Users can switch between different working modes through the PC software configuration module. In MESH mode, the routing module has automatic routing. Function, the user can form a network transmission without blind zone without distance limitation by means of multi-module combination. At the same time, users can also encrypt AES128 wireless data through PC software or serial port instructions, making data transmission more secure.
  • The LoRa modem LoRa6102Pro is designed for 1W output power and is available in TTL/RS232/RS485 levels. It is widely used in wireless remote transmission control.
  • LoRa6102Pro strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.

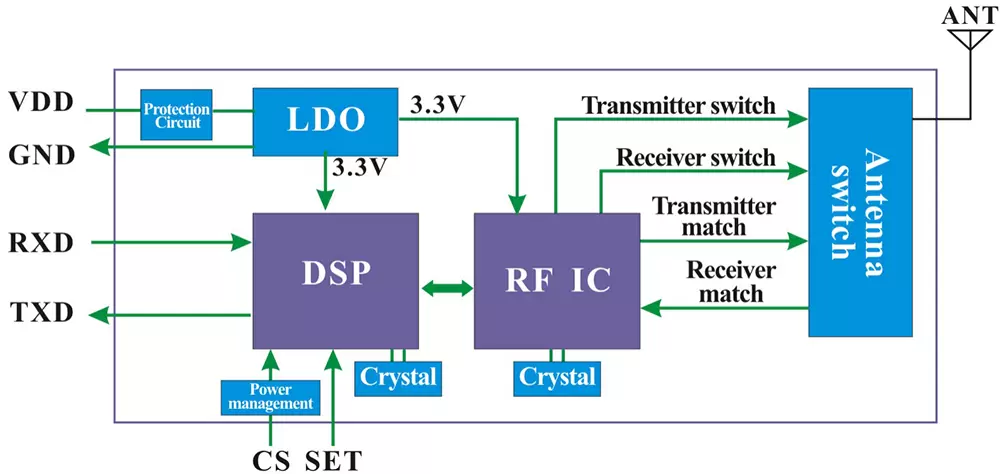

  • Hardware features:
  • 1. Small size, metal shell, strong anti-interference ability.
  • 2. Built-in hardware anti-crash self-reset circuit to resist strong external interference signals.
  • 3. Built-in overcurrent and overvoltage reverse connection protection circuit.
Parameters Min. Typ. Max. Unit Condition
Working Condition
Voltage range 4.5 5.0 5.5 V
Operating Temperature -40 25 +85
Current Consumption
Rx current   < 30   mA

@ 5V

@TTL level

Tx current   < 600   mA
Sleep current   < 250   uA
RF Parameters
Frequency range 414.92 433.92 453.92 MHz @433MHz
470.92 490.92 509.92 MHz @490MHz
849.92 868.92 888.92 MHz @868MHz
895.92 914.92 934.92 MHz @915MHz
Data rate 91 656 17353 bps @LoRa
Output power + 24 > 29.5 + 31 dBm @433MHz / 490MHz
+ 21 > 27 + 28.5 dBm @868MHz / 915MHz
Sensitivity   -139   dBm @91bps



Interface TTL,RS232,RS485
Network MESH
Frequency 433MHz,470MHz,868MHz,915MHz
Modulation LoRa
Output Power 1W

Features of LoRa Modem LoRa6102Pro

  • Transmission distance in the open area up to 10km @ 91bps
  • Frequency band: 433/470/868/915 MHz for option
  • AES128 Data encryption
  • MESH & Node working mode
  • 40 channels
  • Hop level in MESH mode
  • CRC encryption optional
  • LoRa modulation
  • Interface: TTL/RS232/RS485
  • Sensitivity: -139 dBm
  • Max output power: 1W(+30dBm)
  • Working voltage: 3.3 ~ 6.5 V
  • Working temperature: -40 ~ +85 °C

Applications of LoRa Modem LoRa6102Pro

  • Remote control
  • Remote meter reading
  • Industrial data collection
  • Home automation telemetry
  • Wireless data communication
  • Access control system



Typical application circuit of LoRa Modem LoRa6102Pro

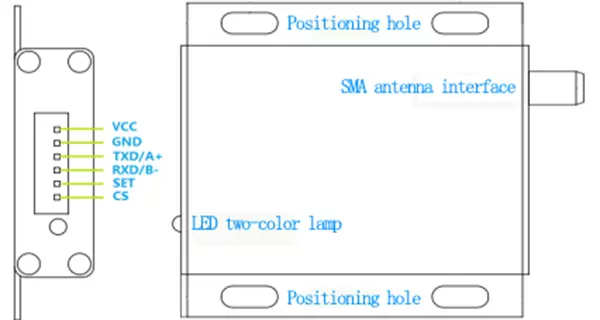

Pin of LoRa Modem LoRa6102Pro

Pin No. Definition Description
1 VCC Connected to the positive power supply (typical 5V)
2 GND Connected to ground
3 TXD/A connect to A@485
4 RXD/B connect to B@485
5 SET Configuration parameter enable (low level enable parameter configuration, default high level output)
6 CS Module enable pin (built-in pull-up) Note: Default factory version: sleep current <200uA, CS pulled high or suspended for normal communication, sleep at low level; Low power consumption version: sleep current <15uA, normal communication when CS is pulled low, pull high or float to sleep.

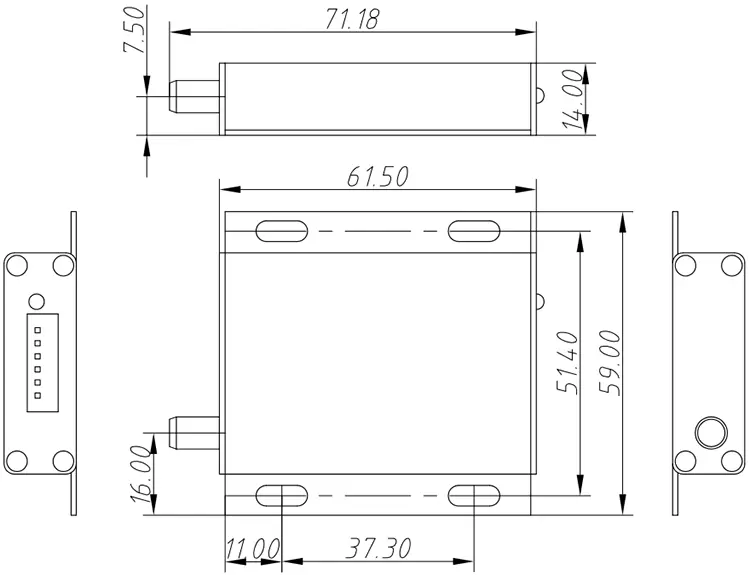

Mechanical dimensions of LoRa Modem LoRa6102Pro
