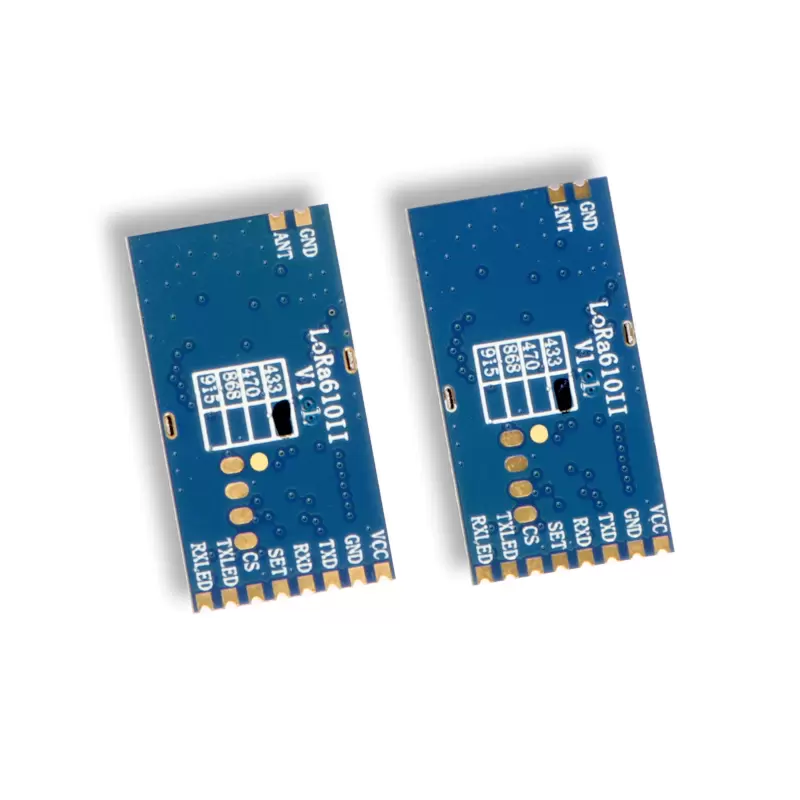

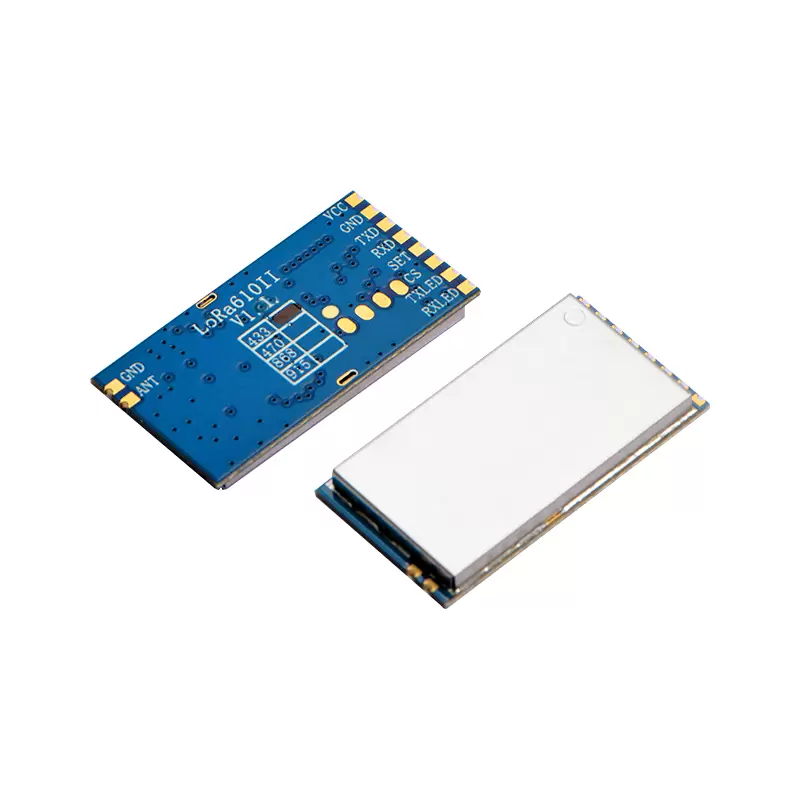

  • LoRa610II is a Uart LoRa module launched by NiceRF. Its low current are the main characteristics. The module adopts LLCC68 chip scheme and is designed based on Semtech official standard. Built-in hardware anti-crash self-reset circuit to resist strong external interference signals.
  • The LoRa610II module is designed for 160mW output power and embedded small size design, which is widely used in wireless remote transmission control industries.
  • LoRa610II module supports AES128 data encryption method, LBT (Listen Before Talk) function is optional, and node/routing/node+routing is optional in MESH mode.
  • LoRa610II modules are strictly produced and tested by lead-free process, which comply with RoHS and REACH standards.
Contact us
DOWNLOAD



  Min. Typ.  Max. Unit Condition
Working Condition
Voltage range 1.8 3.3 3.7 V
Operating Temperature -40 25 +85 ℃
Current Consumption
Rx current   <8   mA TTL level
Tx current   < 110   mA
Sleep current   < 5   uA
RF Parameters
Frequency range   414.92 433.92 453.92 MHz @433MHz
470.92 490.92 509.92 MHz @490MHz
849.92 868.92 888.92 MHz @868MHz
895.92 914.92 934.92 MHz @915MHz
Data rate 1312   62500 bps @LoRa
Output power 1   +22 dBm Software level 7 adjustable
Sensitivity   -129   dBm @1.3Kbps
Interface TTL
Network MESH
Frequency 433MHz,470MHz,868MHz,915MHz
Modulation LoRa
Output Power 160mW

Features of LLCC68 LoRa Module LoRa610II

  • AES128 data encryption method
  • No blind zone without distance limitation-Single module open transmission distance of 5Km @ low rate
  • Frequency band: 433/470/868/915 MHz for option
  • Up to 40 communication channels in the same frequency band
  • Diversified serial port parameters
  • Operating voltage range: 1.8~ 3.7 V
  • LBT (Listen Before Talk) function optional
  • Node/route/node+route optional in MESH mode
  • Built-in hardware reset protection circuit
  • LoRamodulation
  • TTL interface
  • Sensitivity up to -129 dBm
  • Maximum output power: 160 mW (+22dBm)
  • Operating temperature range: -40 ~ +85 °C
  • Hop level in MESH mode
  • CRC encryption optional



Applications of LLCC68 LoRa Module LoRa610II

  • Remote control
  • Remote meter reading
  • Industrial data collection
  • Home automation telemetry
  • Wireless data communication
  • Access control system

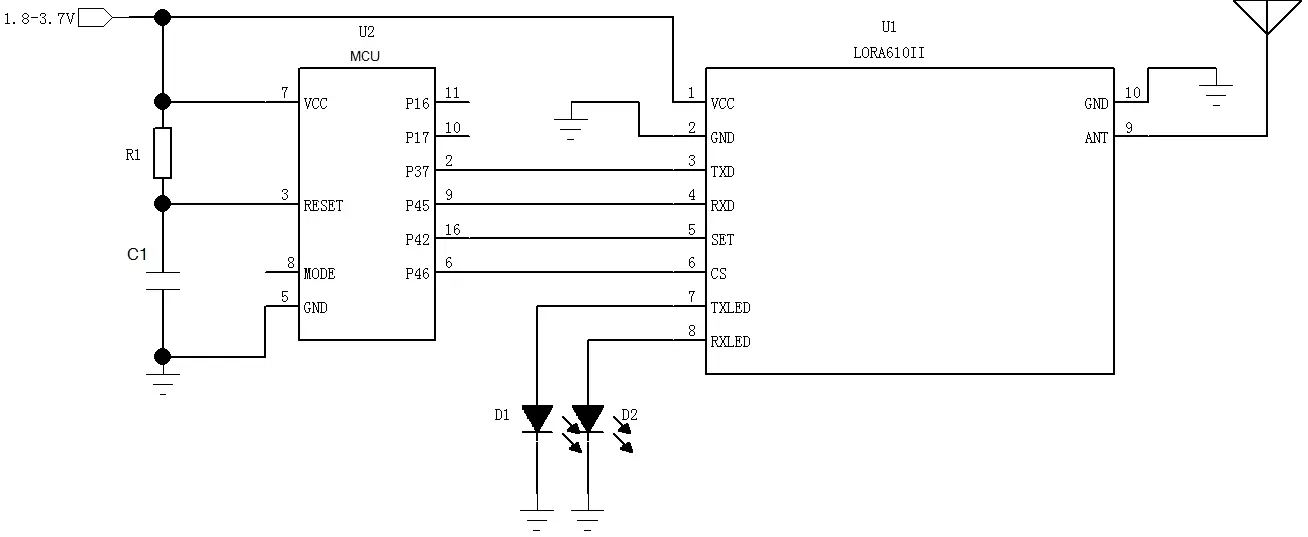

Application circuit of LoRa module LoRa610II

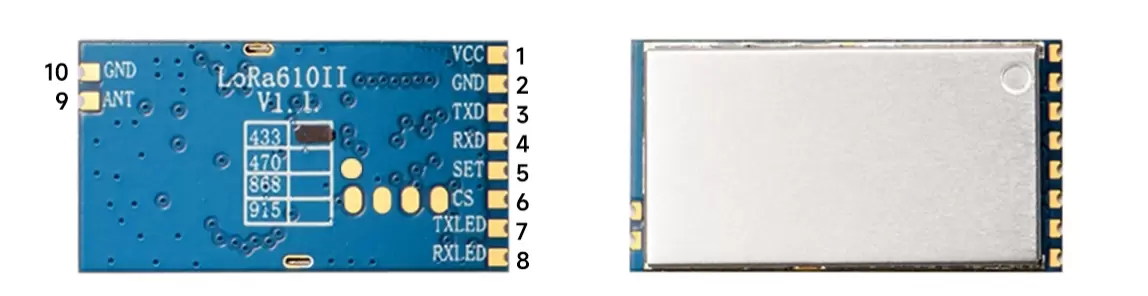

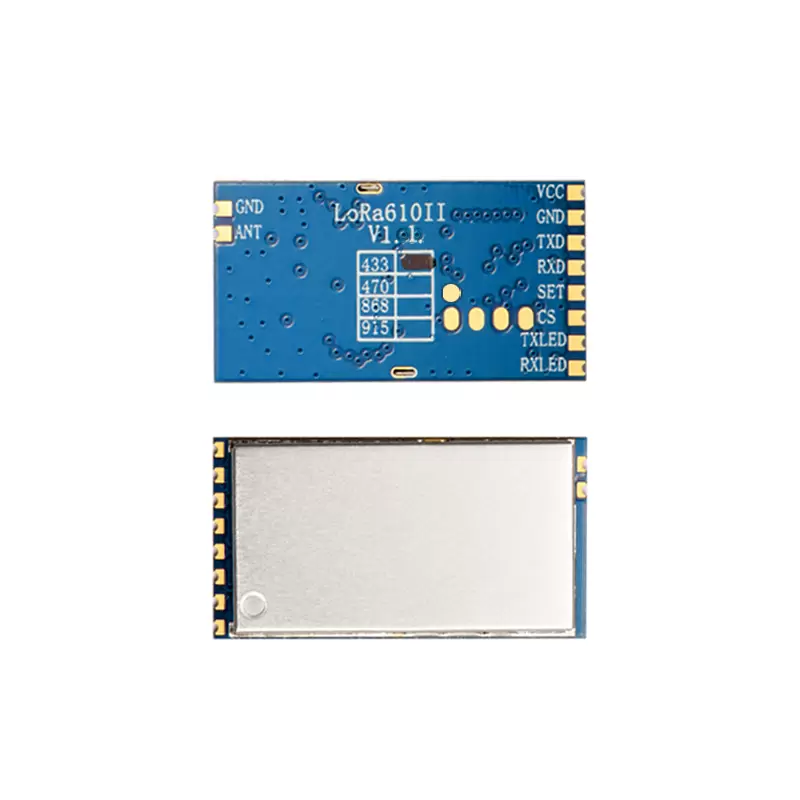

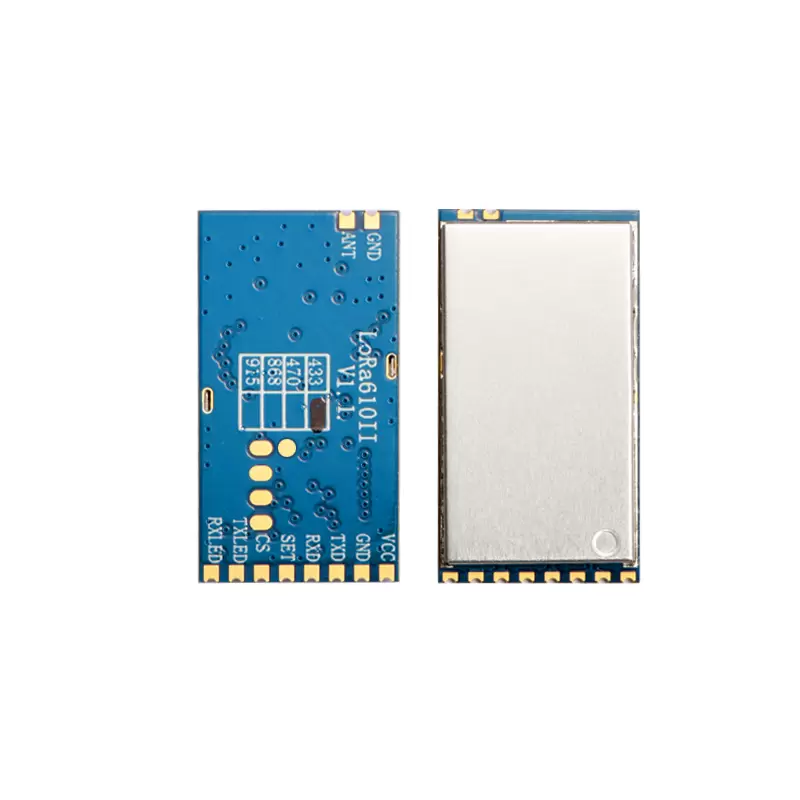

Pin definition of LoRa module LoRa610II

NO.PINDescription
1VCCConnect to the positive pole of the power supply (external 1.8-3.7V)
2GNDConnect to power ground
3TXDSerial communication data transmission
4RXDSerial communication data reception
5SETSetting mode enable when CS is pulled high (0: setting mode, 1: normal working mode)
6CS0: Working mode,1:Sleep mode. Normal communication when CS is pulled low; Pull high or float to sleep mode,Sleep current <5uA.
7TXLEDLED indicator, LED will blink once when one packet is sent out
8RXLEDLED indicator, LED will blink once when one packet is received
9ANTconnect to 50 ohm antenna
10GNDGround of antenna

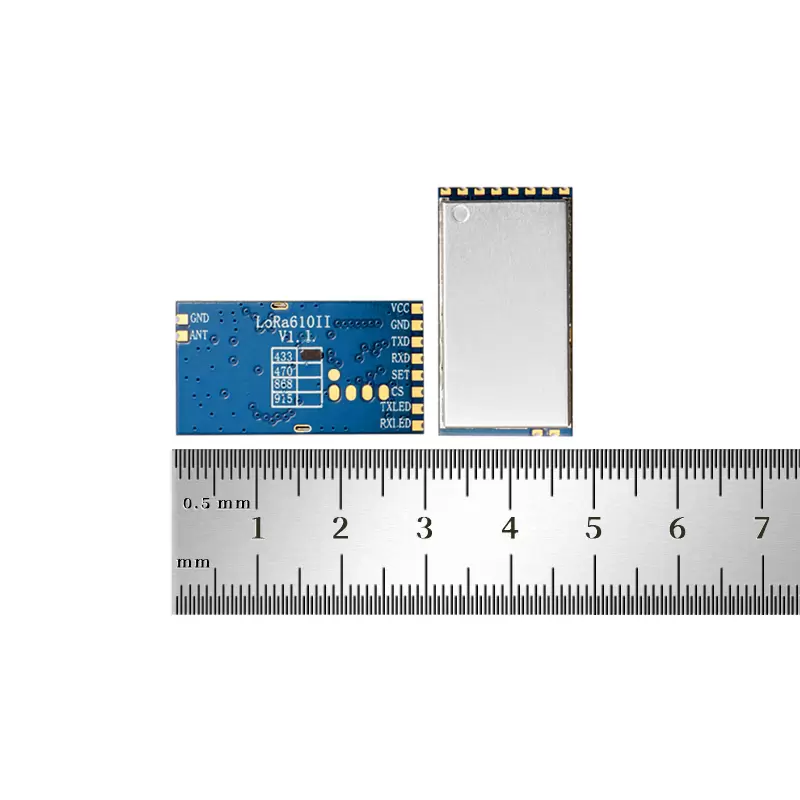

Mechanical dimensions of LoRa module LoRa610II
