LoRa Pro module is a new series of upgraded networking wireless communication modules from Wireless. It is based on Semtech's SX127X chip and uses advanced LoRa spread spectrum modulation frequency hopping technology to achieve high sensitivity. The penetrating power and communication distance are far superior to the current FSK and GFSK products, and have stronger anti-interference. In order to meet the application needs of different customers, we design the module software of this series as an all-in-one way. Users can switch between different working modes through the PC software configuration module. In MESH mode, the routing module has automatic routing. Function, the user can form a network transmission without blind zone without distance limitation by means of multi-module combination. At the same time, users can also encrypt AES128 wireless data through PC software or serial port instructions, making data transmission more secure.

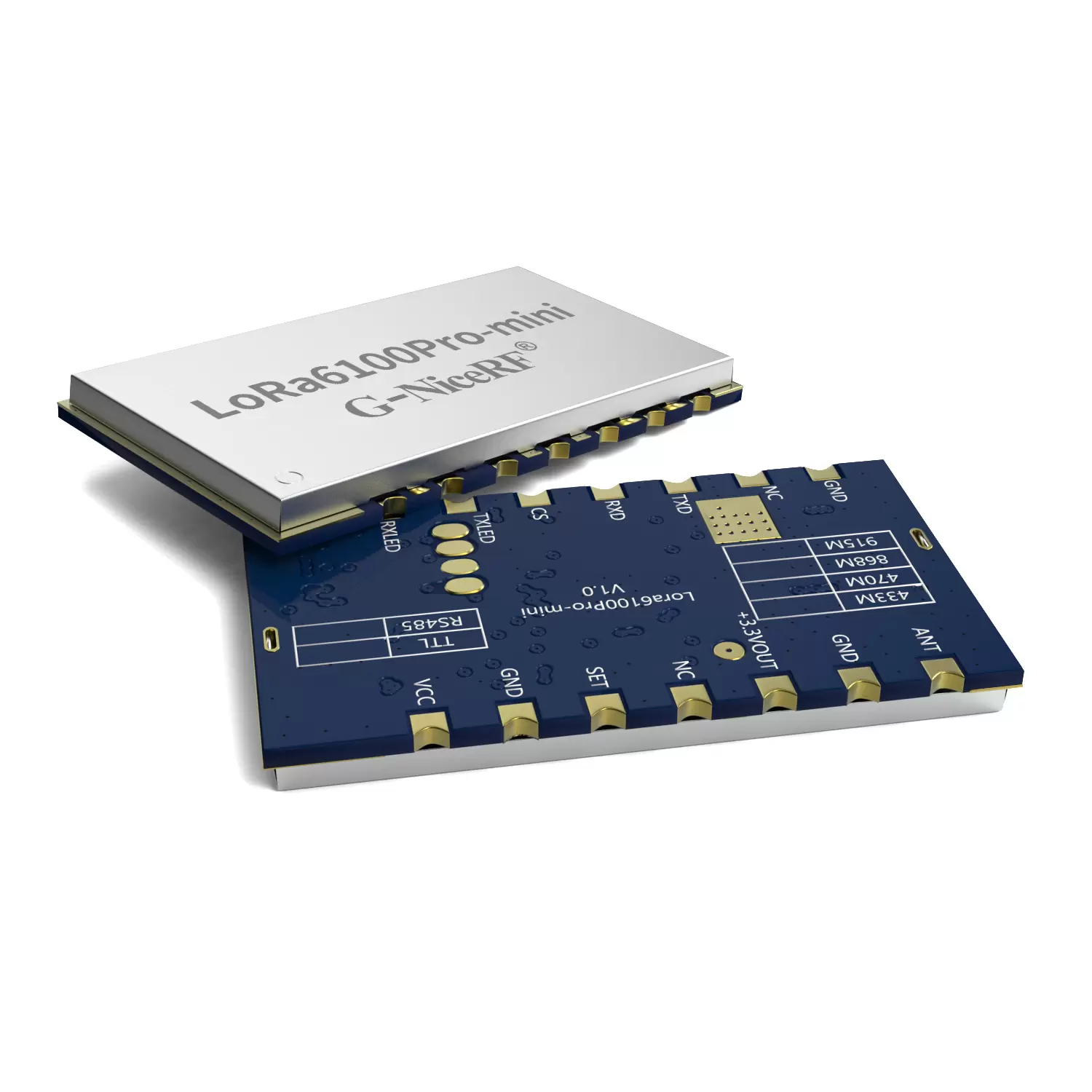

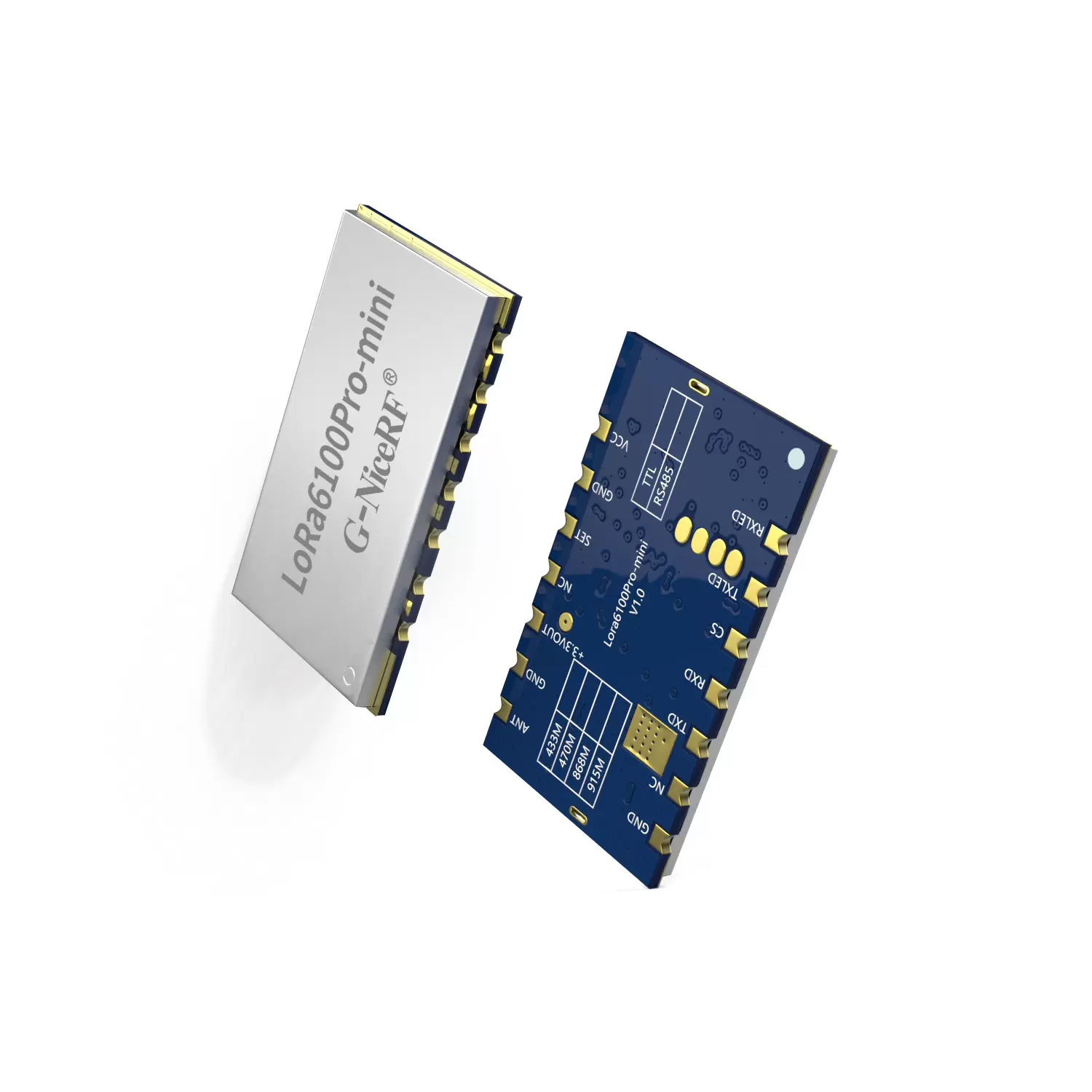

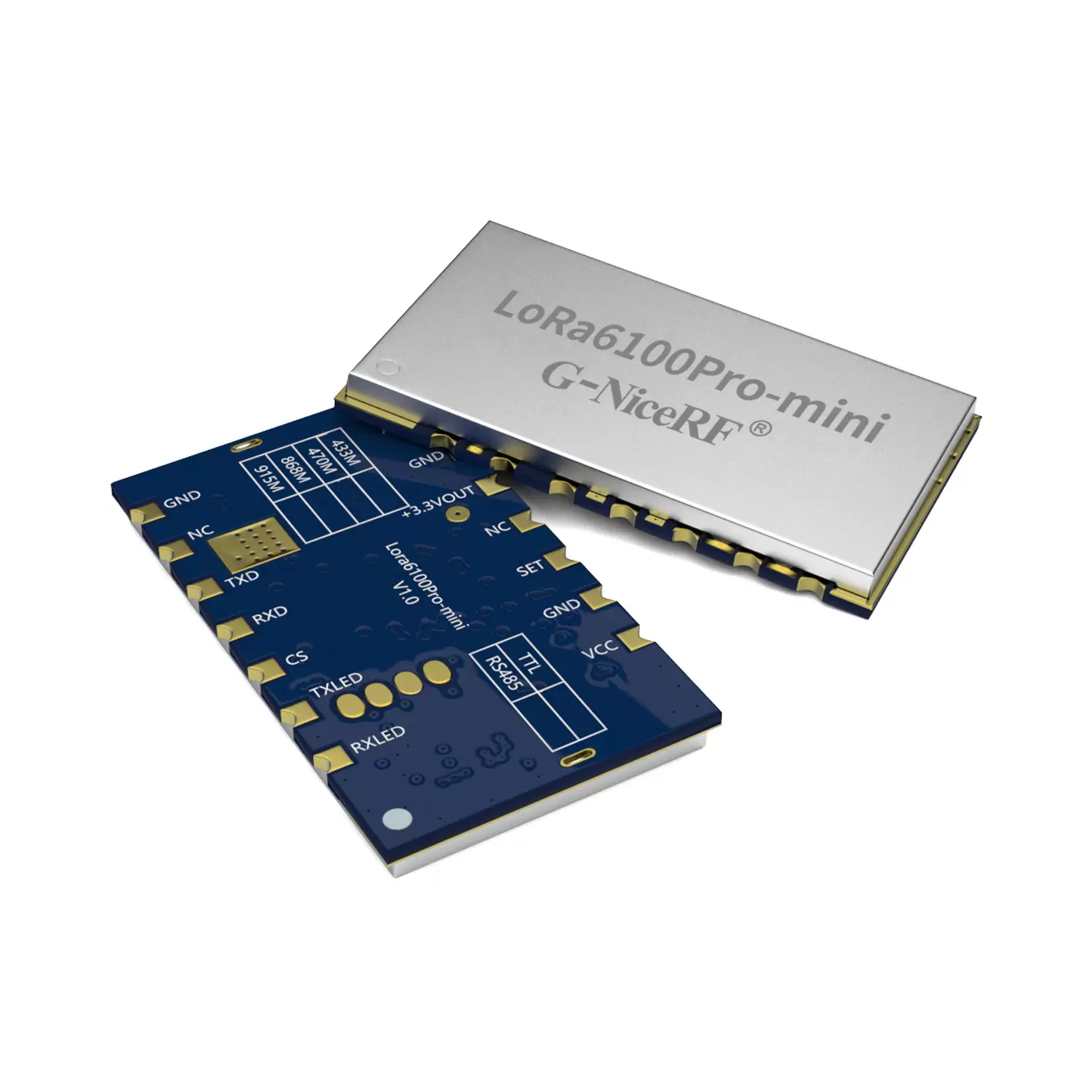

LoRa6100Pro-mini module adopts a compact stamp hole package, making it easy to embed into space-constrained devices. It is suitable for embedded applications with strict size requirements. The module features 1W output power and supports both TTL and RS485 level interfaces.
LoRa6100Pro-mini strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.

Parameters

Min.

Typ.

 Max.

Unit

Condition

Working Condition

Voltage range

3.3

5.0

6.5

V


Operating Temperature

-40

25

+85


Current Consumption

Rx current


<16


mA

@5V,@TTL level

Tx current


< 600


mA

@5V,@TTL level

Sleep current


< 250


uA

Customizable <5 uA version

RF Parameters

Frequency range



414.92

433.92

453.92

MHz

@433MHz

470.92

489.92

509.92

MHz

@470MHz

849.92

868.92

888.92

MHz

@868MHz

895.92

914.92

934.92

MHz

@915MHz

Data rate

91

656

17353

bps

@LoRa

Output power

+ 16

> 29.5

+ 31

dBm

@5V,@433MHz / 470MHz

Sensitivity


-139


dBm

@91bps


Features of LoRa module LoRa6100Pro-mini

  • Frequency band: 433/470/868/915 MHz for option

  • Transmission distance in the open area up to 8km @low rate

  • AES128 Data encryption method
  • Node/route/node+route optional in MESH mode
  • LBT (Listen Before Talk) function optional
  • Hop level in MESH mode
  • CRC encryption optional
  • Built-in hardware reset protection circuit
  • Diversified serial port parameters
  • Up to 40 channels every Band
  • LoRa modulation
  • TTL /RS485 interface
  • Sensitivity: -139 dBm
  • Max output power: 1W
  • Working voltage: 3.3 ~ 6.5 V
  • Working temperature: -40 ~ +85 °C

Applications of LoRa module LoRa6100Pro-mini

  • Remote control
  • Remote meter reading
  • Industrial data collection
  • Home automation telemetry
  • Wireless data communication
  • Access control system

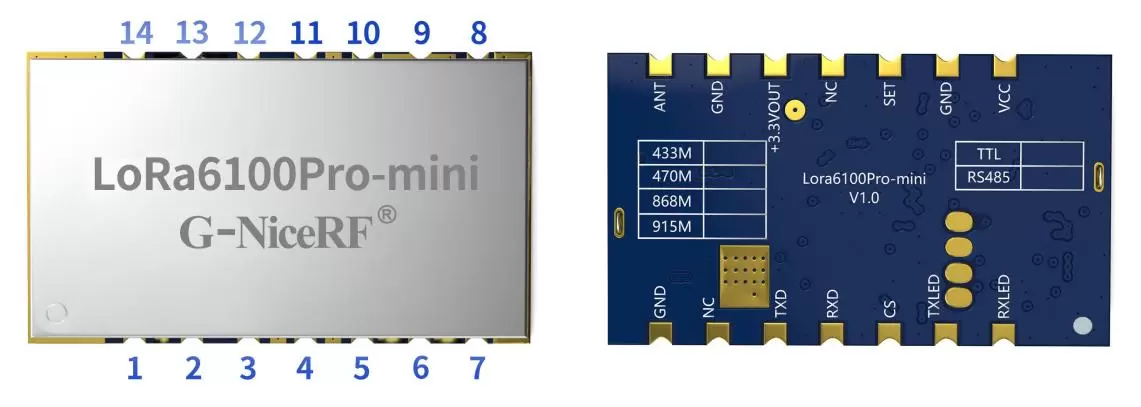

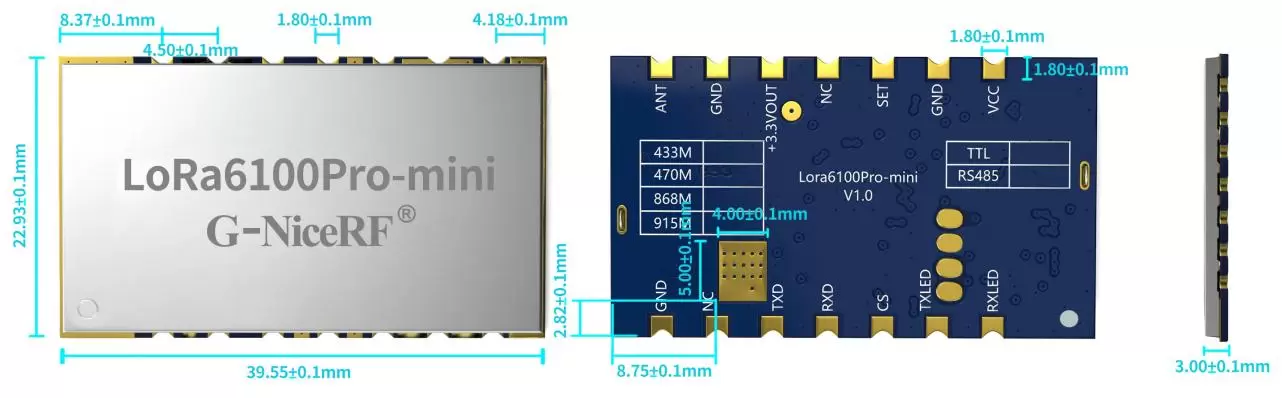

Pin NO

Pin name

IO level

Description

1

RXLED

0-3.3V

Receive signal indicator, lights up on low level, default is high level

2

TXLED

0-3.3V

Transmit signal indicator,lights up on low level, default is high level

3

CS

0-3.3V

Module enable pinBuilt-in pull-up

Note: Default factory version: Sleep current <250uA. When CS is high or floating, the module communicates normally; when CS is low, it enters sleep mode.

Low-power version: Sleep current <15uA. When CS is low, the module communicates normally; when CS is high or floating, it enters sleep mode. (Customization required)

4

RXD

0-3.3V

Module serial communication input

5

TXD

0-3.3V

Module serial communication output

6,11

NC


NC (No Connection)

7,9,13

GND


Connect to the power supply negative terminal

8

ANT


RF signal output, connect to a 50Ω antenna

10

+3.3V OUT

0-3.3V

3.3V voltage output pin, capable of driving loads up to 50mA

12

SET

0-3.3V

Configuration parameter enable (enabled by low level for parameter configuration, default is high level output)

14

VCC

3.3-6.0

Connect to the power supply positive terminal (typical value 5V)
