SK108H : 1W 4 Channel Wireless Relay Module With Hopping Functions

  • SK108H is a industrial 4 channels wireless relay module with hopping function, it provides maximum four channel signal input and maximum four channel control output. It features simple interface and reliable performance. The parameters can be modified by PC software / UART command / remote controller (SK108-S). DIP switch on the module can used to change operating frequency (maximum 16 group), operation mode etc. Using this module, user can replace wired device with the wireless connection, which significantly reduce the cost and save much time.
  • SK108H strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.

Note: Below parameters base on 12V power supply/ 25℃ testing environment.

Parameters Min. Typ.  Max. Unit Condition
Working Condition
Voltage range 9 12 30 V
Operating Temperature -40 25 +85
Current Consumption
Rx current   <20   mA
Tx current   <200   mA
Sleep current   <5   mA @12V Timing mode Non transmitting
RF Parameters
Output power   30   dBm
Sensitivity   -121   dBm



Interface I/O
Channel 4 channel
Communication Two-way
Open distance (km) 2.5~3

Features of Wireless Relay Module SK108H

  • Frequency hopping algorithm
  • Up to 3Km line-of-sight in open area
  • 16 predefined channels
  • Parameters configurable by PC software/ Remote controller/ UART Command
  • Real-time/Timing working mode for optional
  • GFSK modulation
  • Bi-directional wireless switch control
  • Anti-interference
  • Sensitivity up to -121 dBm
  • Maximum output power: 1 W
  • Indicate and alarm when battery low
  • Working voltage 9 ~ 30 V
  • Working temperature range: - 40 ~ + 85 ° C
  • Weight: 143g

Application of Wireless Relay Module SK108H

  • Remote control switch control
  • Security system
  • Home automation remote sensing
  • Wireless remote telemetry
  • Building automation and security
  • Access control system

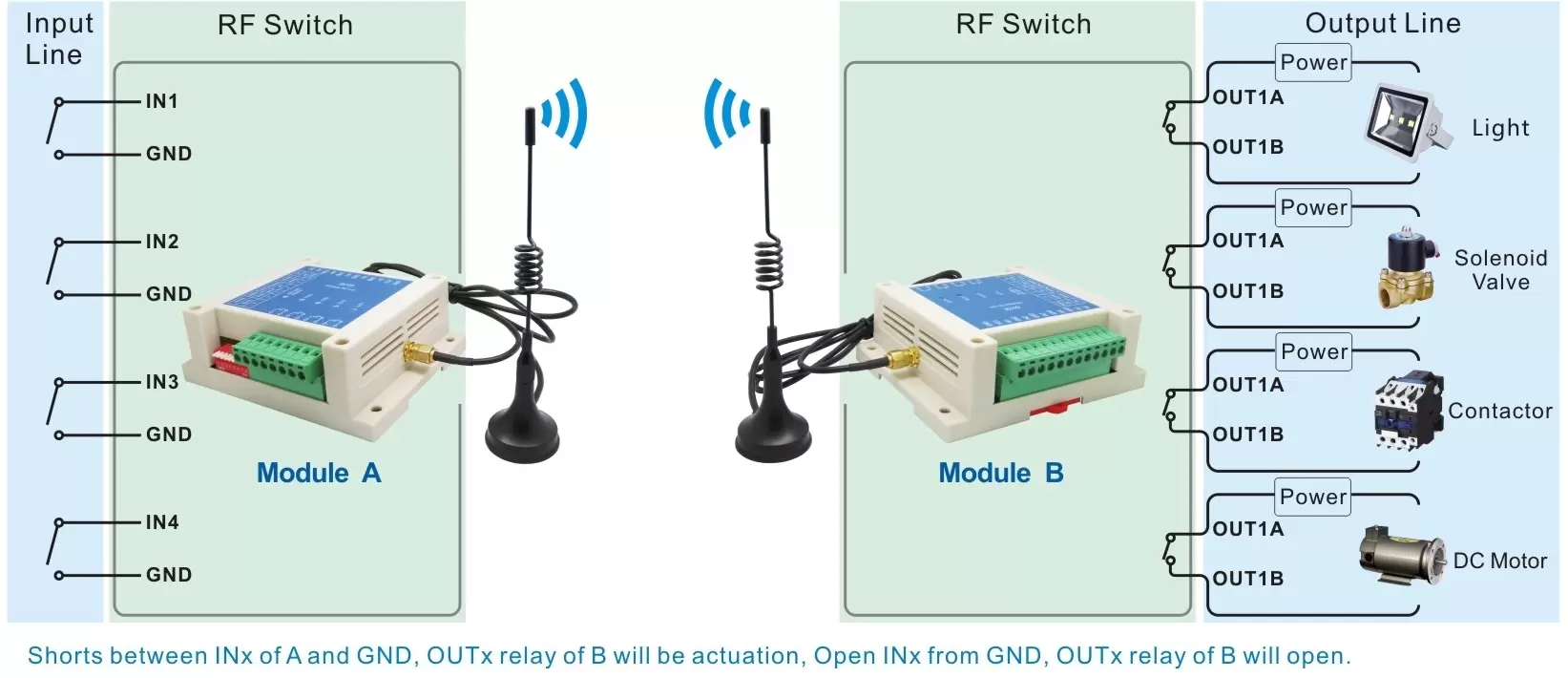

Application circuit of wireless relay module SK108H with hopping functions

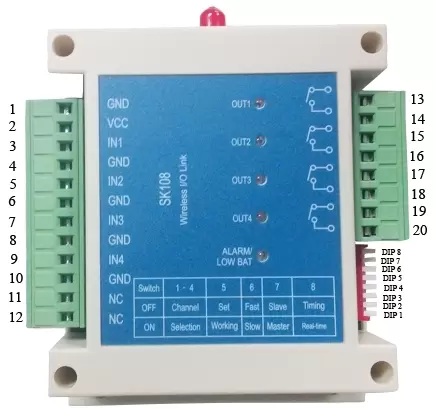

Pin definition of wireless relay module SK108H with hopping functions

Pin NO.PinDescription
1GNDPower Ground
2VCCConnect to positive power
3IN1Ch1 input, internal pull up
4GND
5IN2Ch2  input, internal pull up
6GND
7IN3Ch3 input, internal pull up
8GND
9IN4Ch4 input, internal pull up
10GND
11NCReserved, Non-Connected
12NCReserved, Non-Connected
13OUT1Ch1 relay control output,
closed: low level in Tx
Open: high level in Tx
14
15OUT2Ch2 relay control output,
closed: low level in Tx
Open: high level in Tx
16
17OUT3Ch3 relay control output,
closed: low level in Tx
Open: high level in Tx
18
19OUT4Ch4 relay control output,
closed: low level in Tx
Open: high level in Tx
20

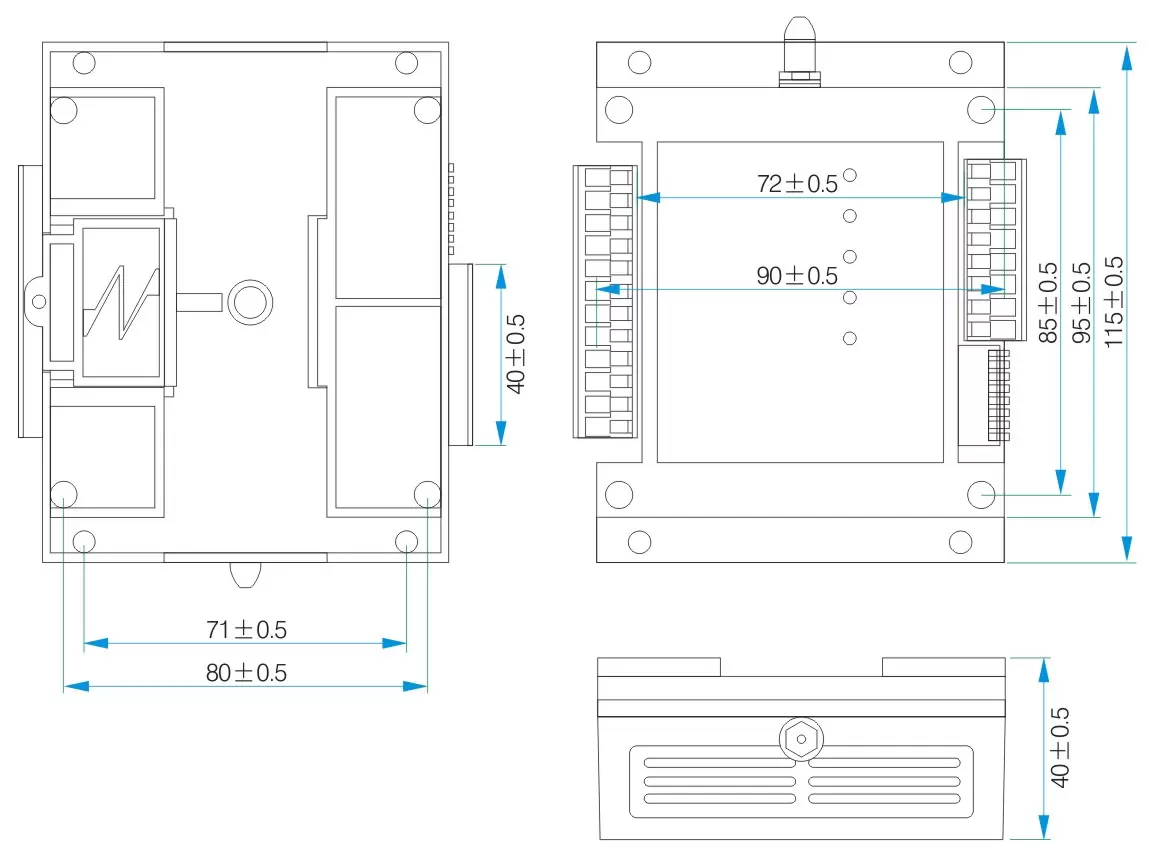

Mechanical dimensions of wireless relay module SK108H with hopping functions
