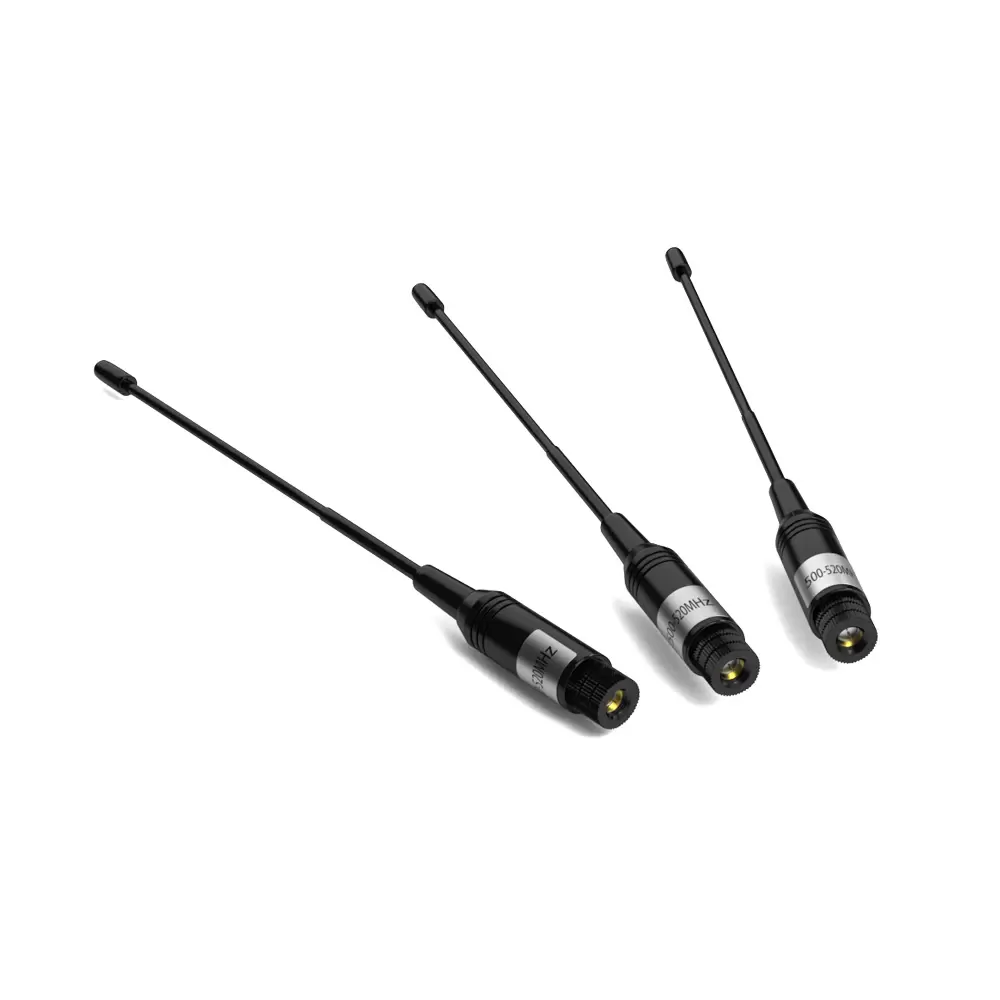

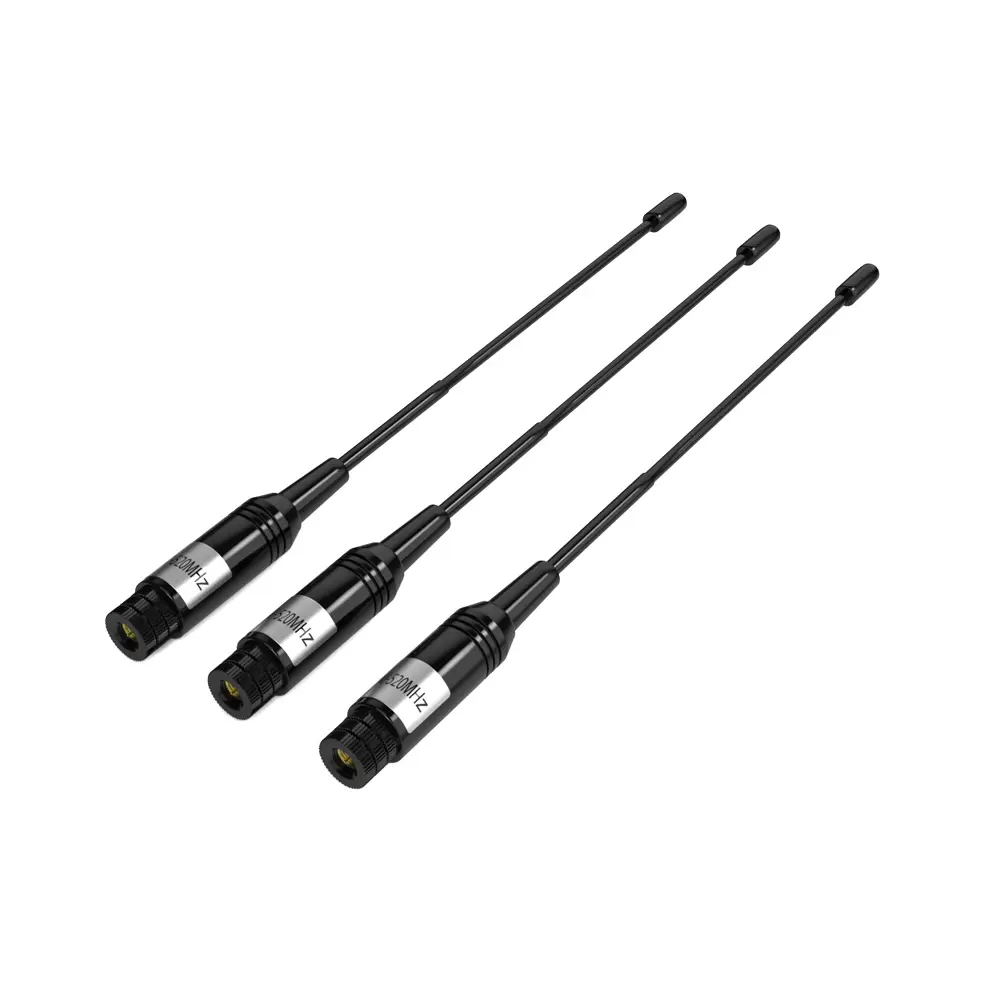

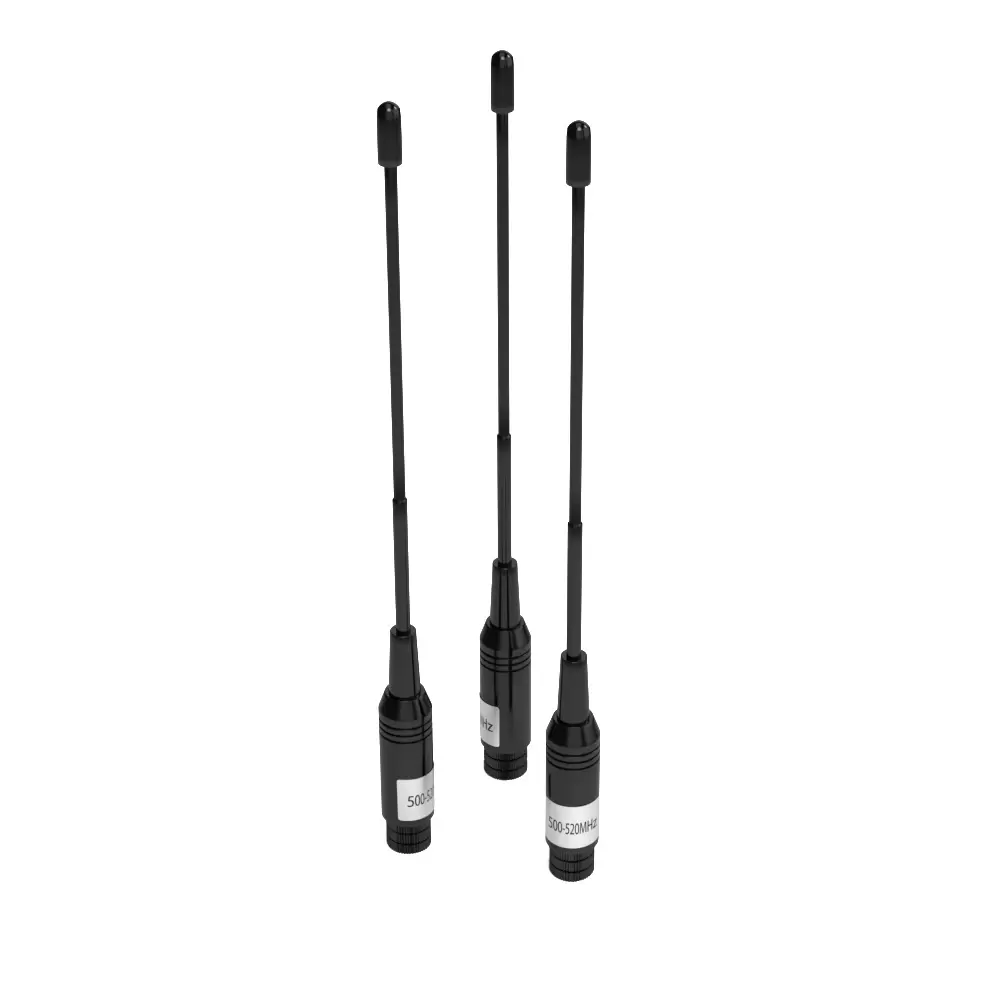

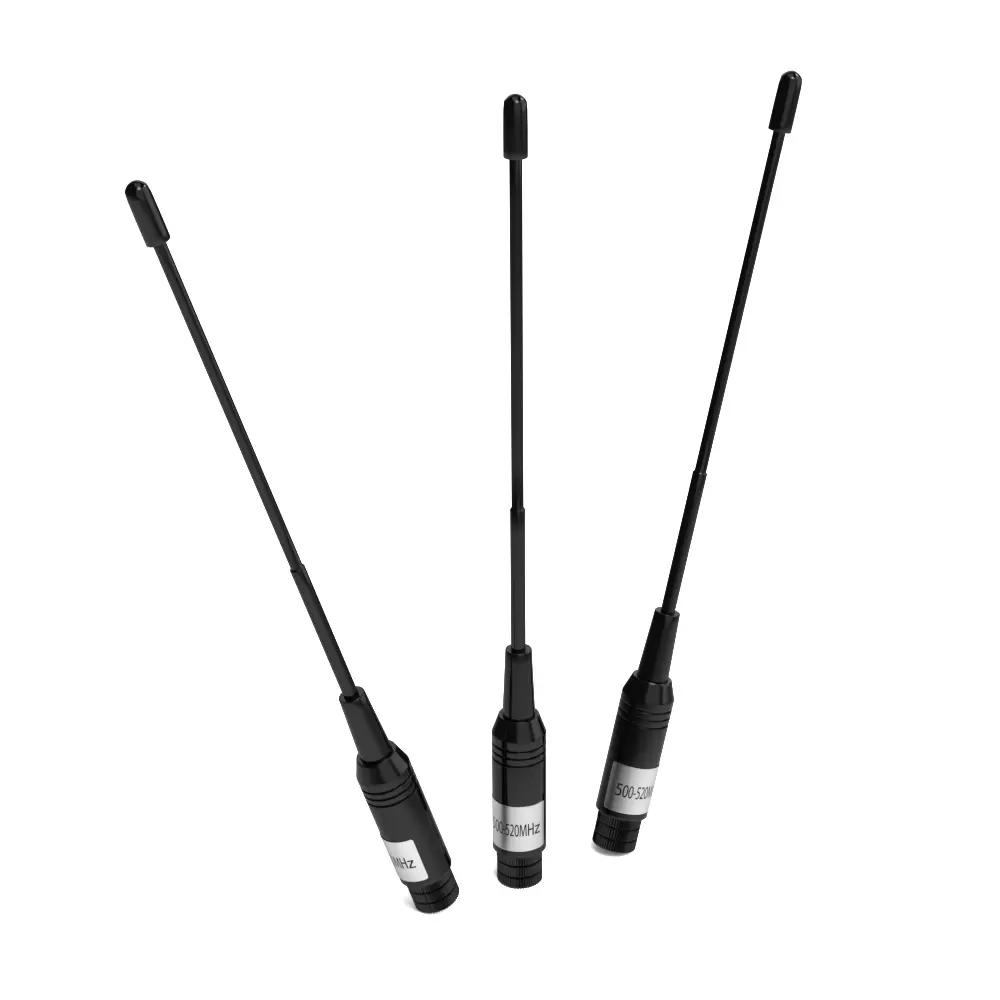

SW510-ZT200：500-520MHz Straight Whip Antenna
SW510-ZT200 is a straight rod antenna custom-designed for 500MHz wireless communication. The antenna offers excellent standing wave ratio performance, easy installation, stable performance, and strong resistance to vibration and aging.
Technical Parameter
Frequency Range:510±10 MHz
VSWR: ≤ 1.5
Gain: 2.15 dBi
Input impedance: 50 Ω
Power Capacity: 10 W
Polarization: Vertical
Radiation Direction: Omnidirectional

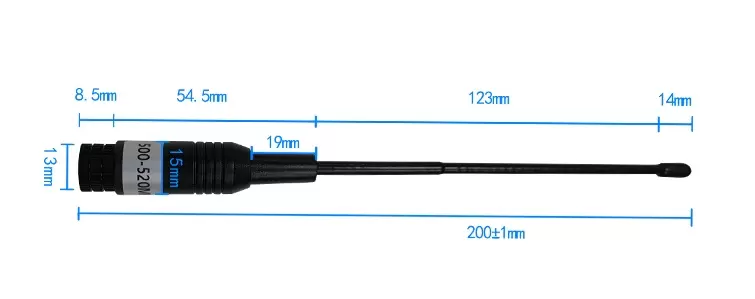

Height: 200±2 mm
Cable: None
Interface form: SMA-J
Antenna Color: Black
Weight：24 g
Frequency: 150 MHz, Standing Wave Ratio (SWR): 1.1253
Antennas have been tested under wireless simulated environment by Network Analyzer
