SW433-WP-XPXM : 433MHz High Gain Waterproof Sucker Antenna

SW433-WP-XPXM : 433MHz High Gain Waterproof Sucker Antenna

SW433-WP-XPXM : 433MHz High Gain Waterproof Sucker Antenna

SW433-WP-XPXM : 433MHz High Gain Waterproof Sucker Antenna

SW433-WP-XPXM : 433MHz High Gain Waterproof Sucker Antenna

SW433-WP-XPXM : 433MHz High Gain Waterproof Sucker Antenna

SW433-WP-XPXM : 433MHz High Gain Waterproof Sucker Antenna

SW433-WP-XPXM : 433MHz High Gain Waterproof Sucker Antenna

SW433-WP-XPXM : 433MHz High Gain Waterproof Sucker Antenna

SW433-WP-XPXM : 433MHz High Gain Waterproof Sucker Antenna

SW433-WP-XPXM : 433MHz High Gain Waterproof Sucker Antenna

SW433-WP-XPXM : 433MHz High Gain Waterproof Sucker Antenna

SW433-WP-XPXM : 433MHz High Gain Waterproof Sucker Antenna

SW433-WP-XPXM is a high gain small waterproof sucker antenna, it has good VSWR, ingenious structure, easy installation, with good anti-vibration and aging ability. Combined with its waterproof properties are widely used in outdoor environment is poorer in the places.

Contact us

DOWNLOAD

433MHz waterproof sucker antenna SW433-WP-XPXM V2.2.pdf

Technical Parameter

Frequency Range: 433±5 MHz
VSWR: ≤ 1.5
Gain: 2.15 dBi
Input impedance: 50 Ω
Max power: 10 W
Weight: 60 g

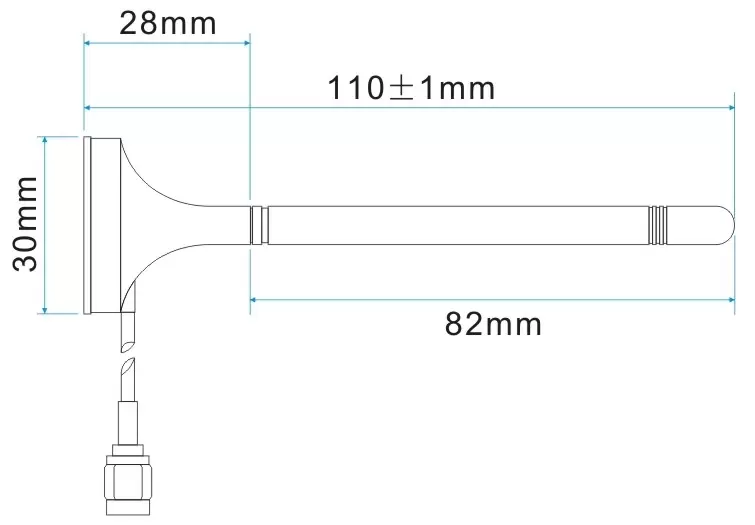

Height: 111 mm
Interface form: MCX-J
Cable length: 1m、3m optional
Antenna Color: black

Frequency	433MHz
Type	Magnetic
Gain	2.15dBi
Size (mm)	100~150

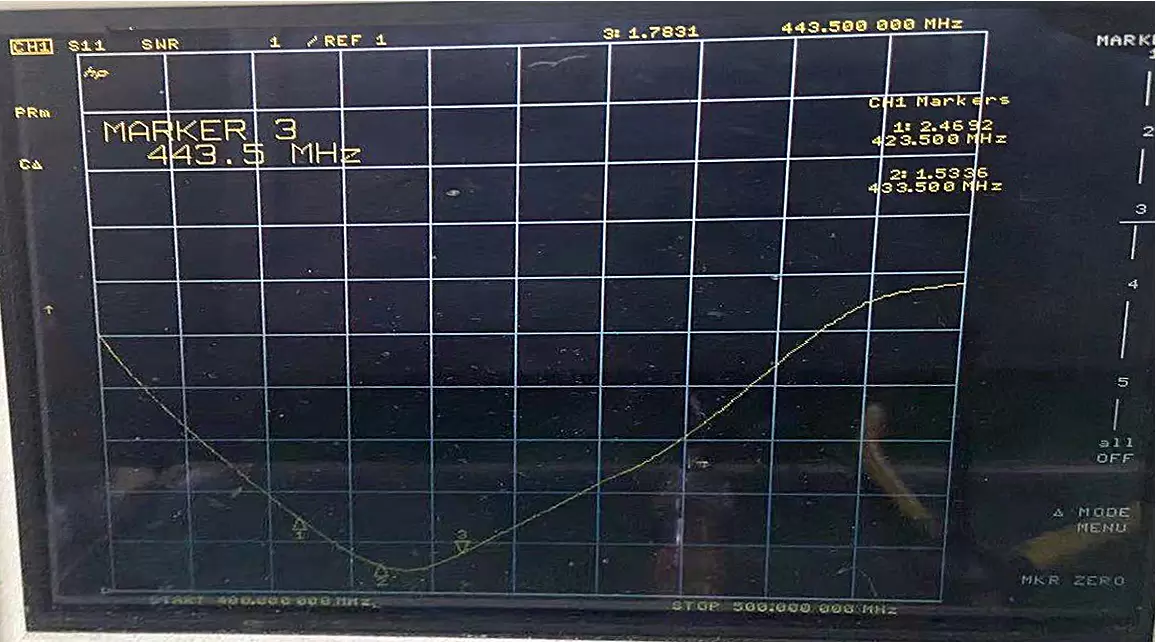

Antennas have been tested under wireless simulated environment by Network Analyzer.

VSWR Chart of Sucker Antenna SW433-WP-XPXM
