SW490-TH32 : 470/490MHz Copper Spring Antenna
Type: Spring
Frequency: 470/490 MHz
Gain: 0.5~2.15dBi
Size(mm): <20
Material&Technology: Copper
HOME > PRODUCTS > RF ANTENNAS > SW490-TH50 : 490MHZ UHF COPPER SPRING ANTENNA
SW490-TH50 : 490MHz UHF Copper Spring Antenna
SW490-TH50, a copper spring antenna, designed specially for 490MHz wireless communication, it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Spring Antenna SW490-TH50
- Frequency Range: 490±5 MHz
- VSWR: ≤ 2.0
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Max power: 5 W

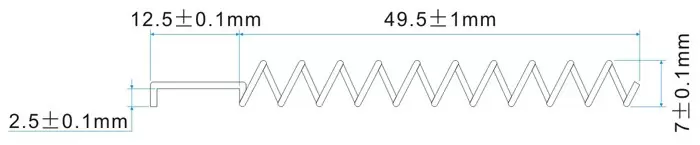

- Height: 49.5±1 mm
- Interface form: welding directly
- Antenna Color: copper
- Weight: 2 g
- Wire diameter: 0.8mm
| Frequency | 470/490MHz |
| Type | Helical |
| Gain | 2.15dBi |
| Size (mm) | < 50 |
| Material & Technology | Copper |

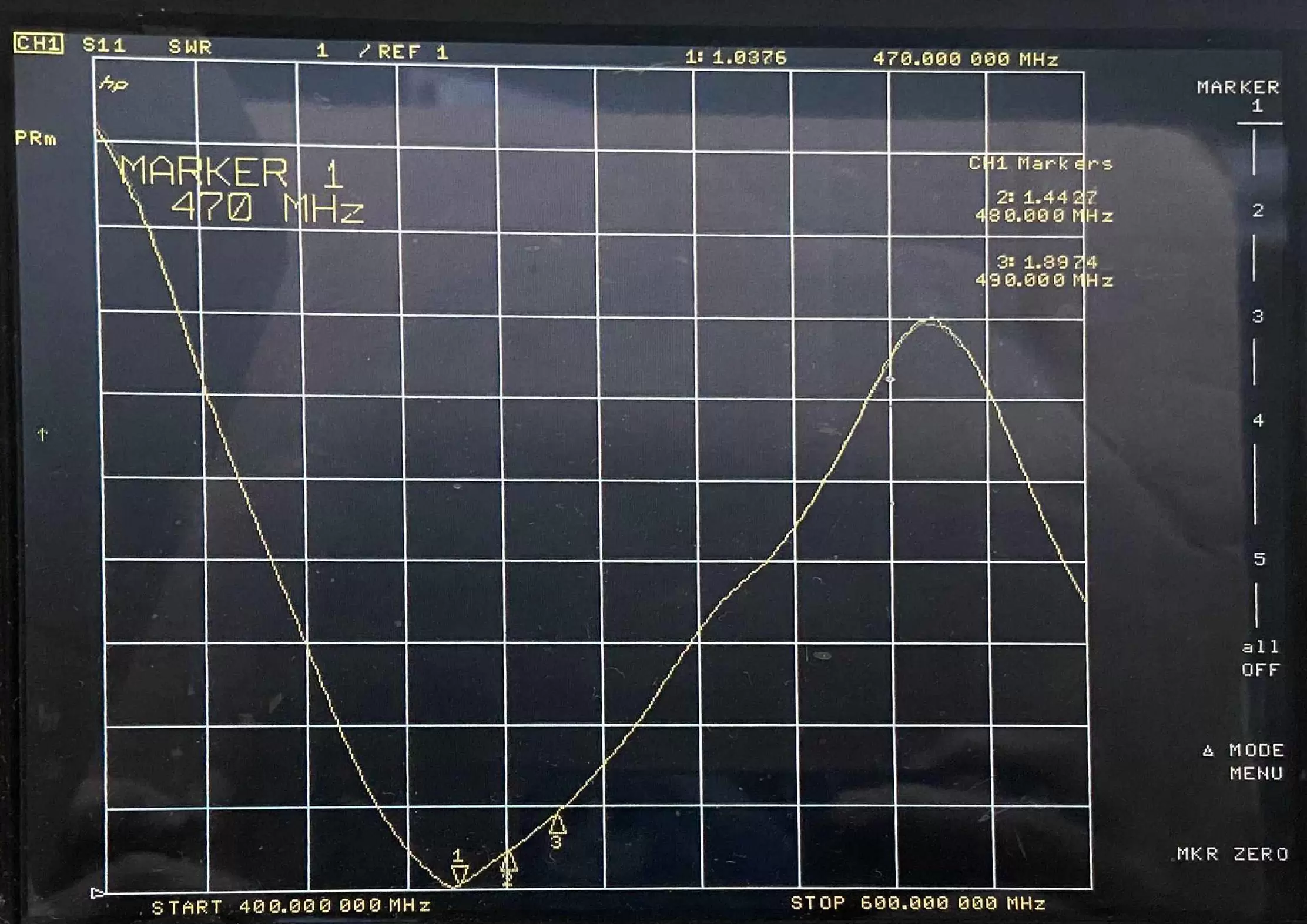

Antennas have been tested under wireless simulated environment by Network Analyzer.
