FPC868 800-880MHz Embedded Omnidirectional Antenna
FPC868 800-880MHz Embedded Omnidirectional Antenna

FPC868 800-880MHz Embedded Omnidirectional Antenna

FPC868 is designed for embedded wireless applications in the 800–880 MHz frequency range. With a compact FPC structure, it helps save internal space while providing an omnidirectional antenna solution for wireless data transmission devices.

The antenna supports 2.0 dBi gain, VSWR ≤2.0, and 50 Ω input impedance. SMA-J and IPEX-1 interface options are available to meet different connection and device layout requirements.

FPC868 uses a black embedded design and supports an operating temperature range of -40°C to +65°C. Each antenna is tested with a network analyzer in a simulated wireless data transmission environment before shipment to help ensure consistent RF performance.


Technical Parameter

  • Frequency Range:800-880 MHz

  • VSWR: ≤ 2.0

  • Gain: 2.0 dBi

  • Input impedance: 50 Ω

  • Interface form: SMA-J/IPEX-1

  • Operating Temperature: -40~+65°C

  • Antenna Color: Black


FPC antenna fpc868 size


antenna undergoes strict testing with a network analyzer in a wireless data transmission system simulation environment before leaving the factory.

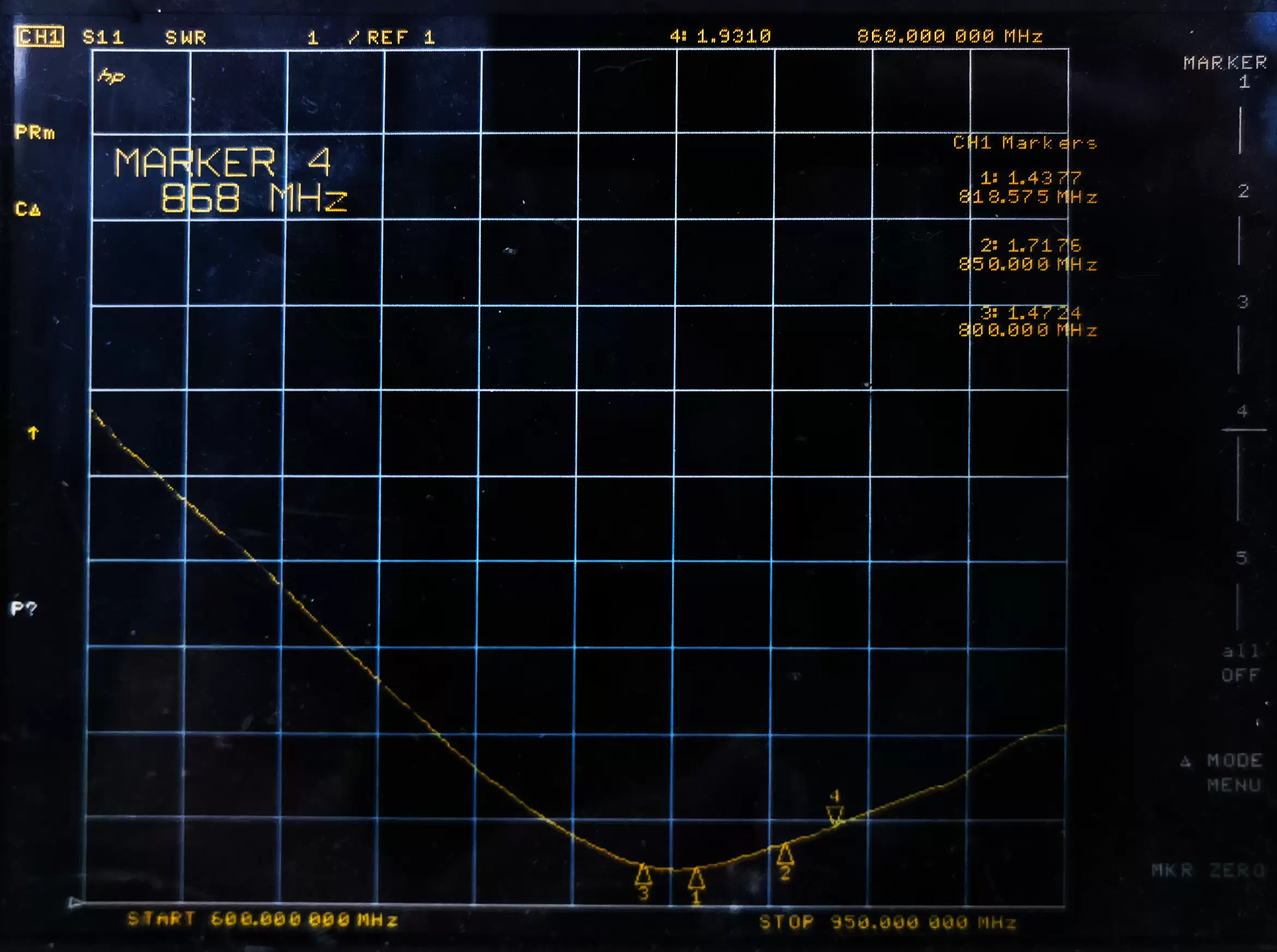

VSWR graph of the FPC antenna FPC868

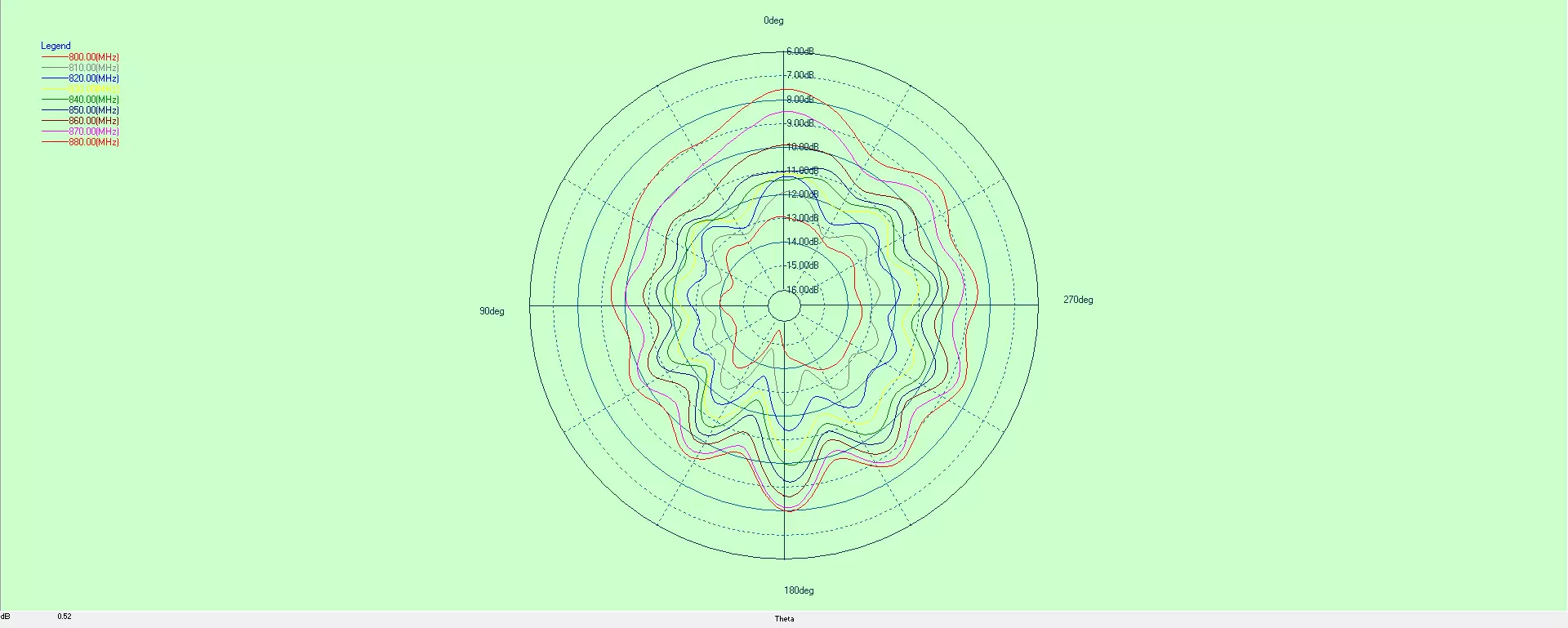

Radiation pattern of RF antenna fpc868

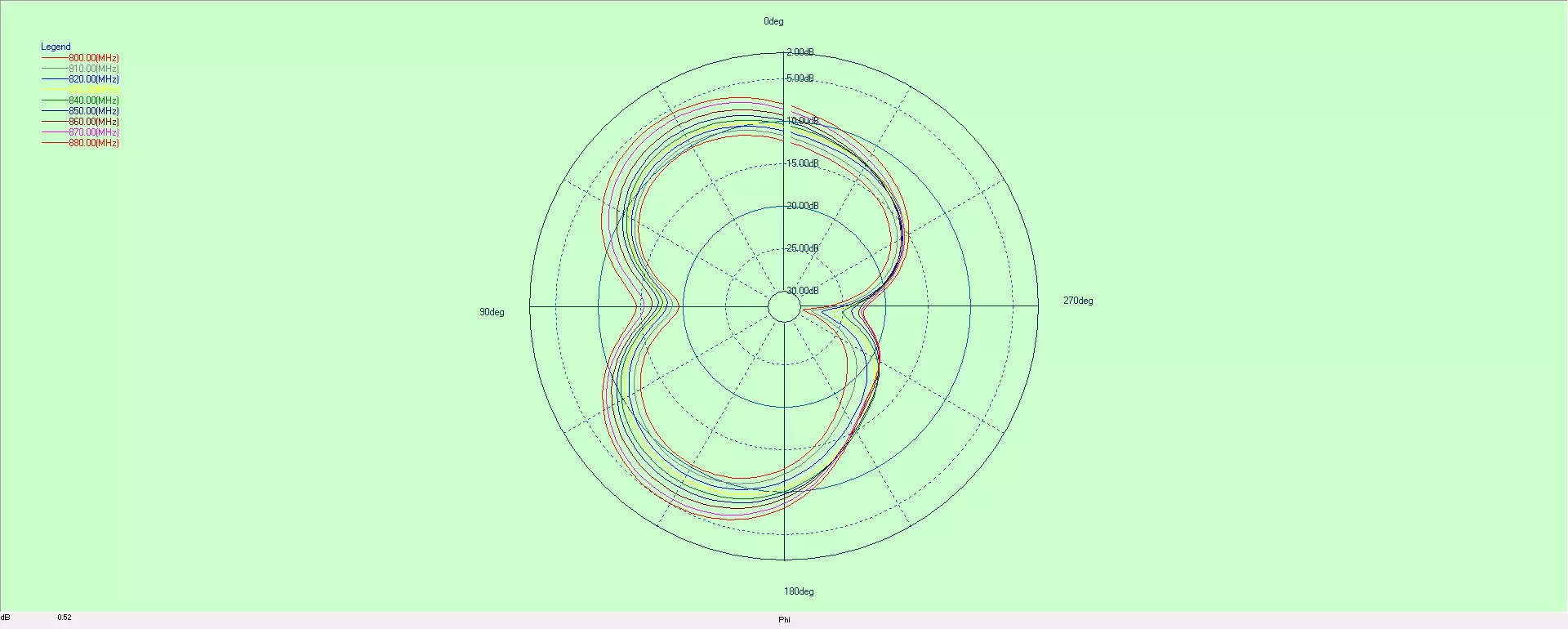

Radiation pattern of RF antenna fpc868

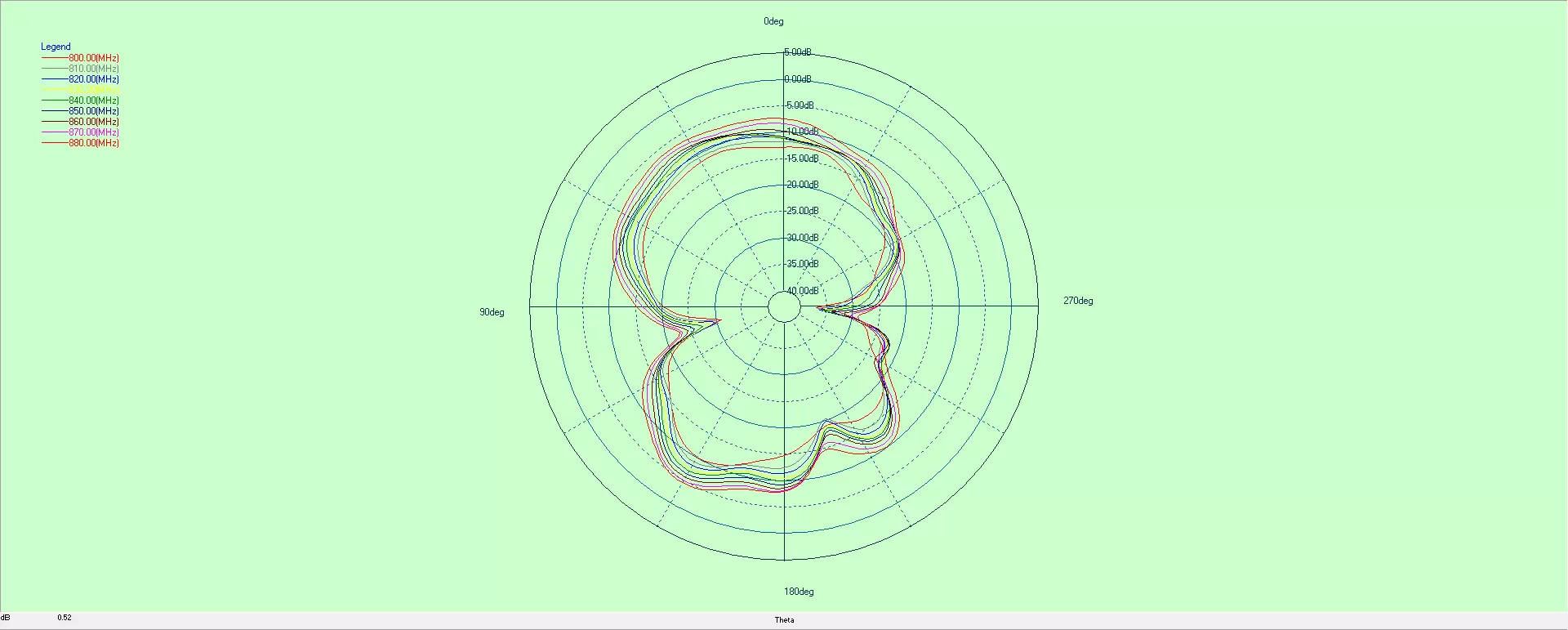

Radiation pattern of RF antenna fpc868
