SW915-TH12 : 915MHz Copper Spring Antenna
SW915-TH12, a copper spring antenna, is designed specially for 915MHz wireless communication. It has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Spring Antenna SW915-TH12
- Frequency Range: 915±5 MHz
- VSWR: ≤ 1.5
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Max power: 5 W

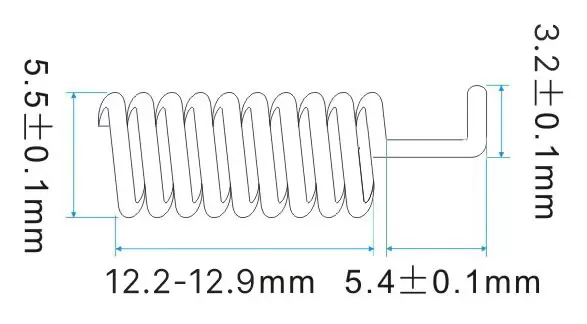

- Height: 12.5±1 mm
- Interface form: welding directly
- Antenna Color:copper
- Weight: 1 g
- Wire diameter: 0.8mm
| Frequency | 915MHz |
| Type | Helical |
| Gain | 2.15dBi |
| Size (mm) | < 15 |
| Material & Technology | Copper |

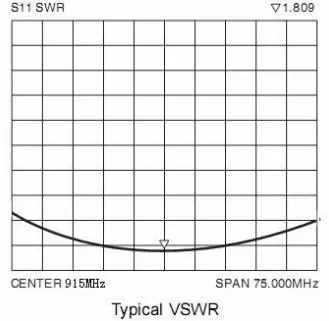

Antennas have been tested under wireless simulated environment by Network Analyzer.
