SW915-ZD115 : 915MHz Folding Rod Antenna
SW915-ZD115, a folding rod antenna, designed specially for 915MHz wireless communication. It has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Rod Antenna SW915-ZD115
- Frequency Range: 915±10 MHz
- VSWR: ≤ 1.5
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization

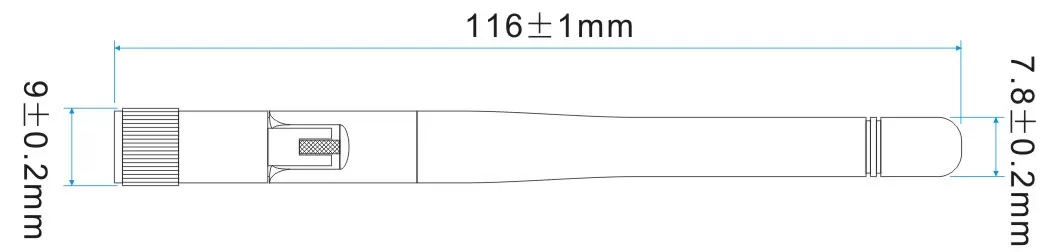

- Height: 116±1mm
- Interface form: SMA/J
- Lead wire: none
- Antenna Color: black
- Weight: 10 g
| Frequency | 915MHz |
| Type | Rod |
| Gain | 2.15dBi |
| Size (mm) | 100~150 |

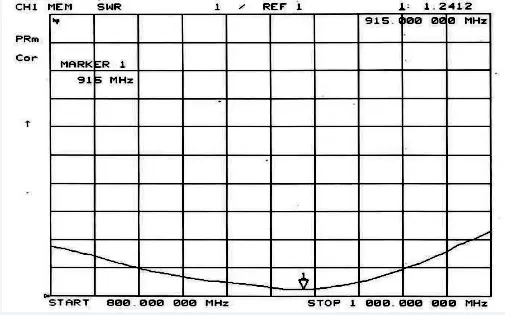

Antennas have been tested under wireless simulated environment by Network Analyzer.
