SW868-XP1M : 868MHz High Gain Small Sucker Antenna
SW868-XP1M, small sucker antenna, designed specially for 868MHz wireless communication, it has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency Range: 868±10 MHz
- VSWR: ≤ 1.5
- Gain: 3.0 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization

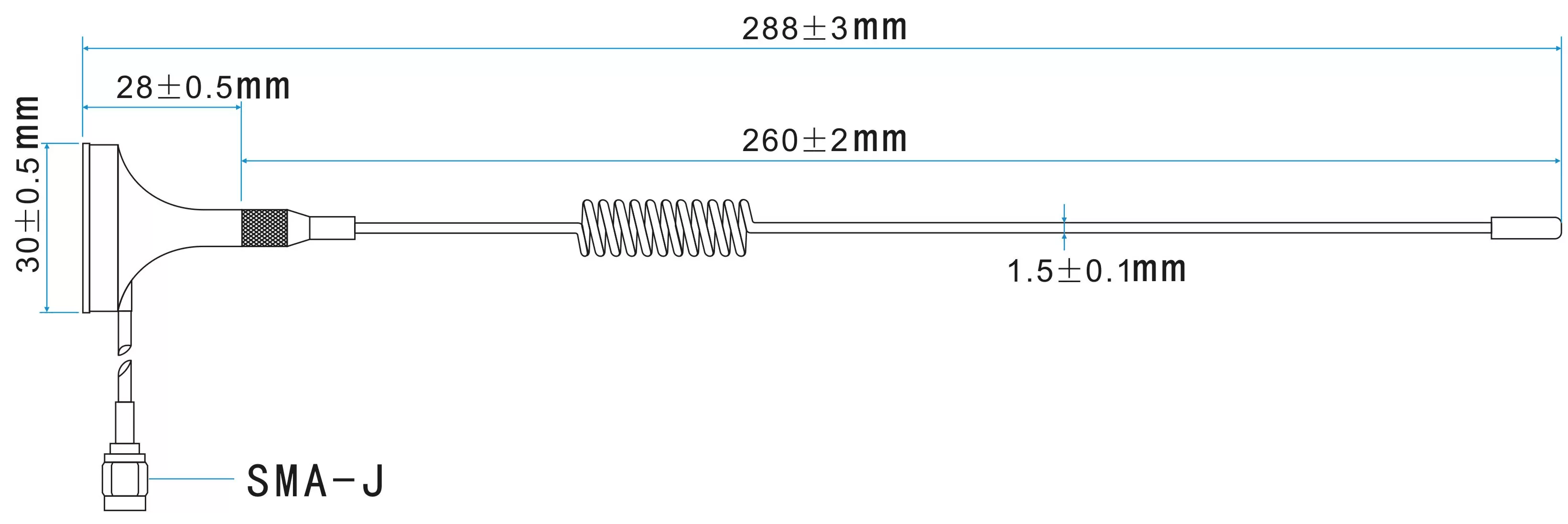

- Height: 288±3 mm
- Interface form: SMA-J(customizable)
- Cable length: 1m (customizable)
- Color: black
- Weight:32.2g
| Frequency | 868MHz |
| Type | Magnetic |
| Gain | 3dBi |
| Size (mm) | > 150 |

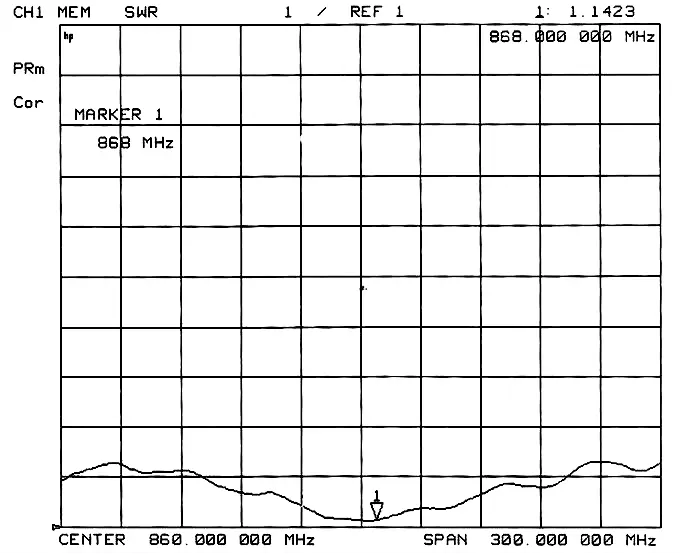

Antennas have been tested under wireless simulated environment by Network Analyzer.
