SW433-WT36 : 433MHz Elbow Rod Antenna
Type: Rod
Frequency: 433 MHz
Gain: 2.16~3dBi
Size(mm): <50
Material&Technology: Others
HOME > PRODUCTS > RF ANTENNAS > SW868-WT36 : 868MHZ ELBOW ROD ANTENNA
SW868-WT36 : 868MHz Elbow Rod Antenna
SW868-WT36, an elbow rod antenna, designed specially for 868MHz wireless communication, it has good VSWR, ingenious structure, easy installation, and stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency Range: 868±10 MHz
- VSWR: ≤ 1.5
- Gain: 2.5 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization

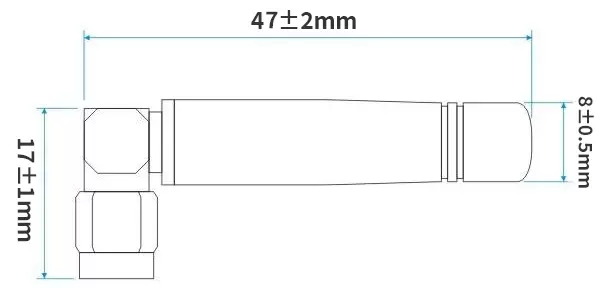

- Height: 47±2mm
- Interface form: SMA-J
- Lead wire: none
- Antenna Color: black
- Weight: 7±1g
| Frequency | 868MHz |
| Type | Rod |
| Gain | 2.5dBi |
| Size (mm) | < 50 |

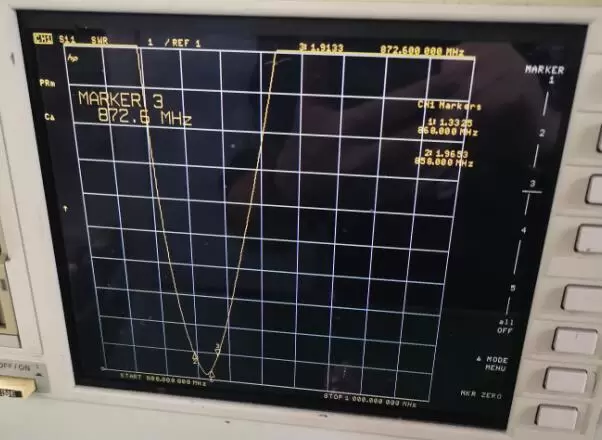

Antennas have been tested under wireless simulated environment by Network Analyzer.
