SW2400-WT100 : 2.4GHz High Gain Plated Elbow Rod Antenna
SW2400-WT100, a elbow rod antenna, designed specially for 2.4GHz wireless communication. It has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Rod Antenna SW2400-WT100
- Frequency Range: 2400±100 MHz
- VSWR: ≤ 1.5
- Gain: 3.0 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization

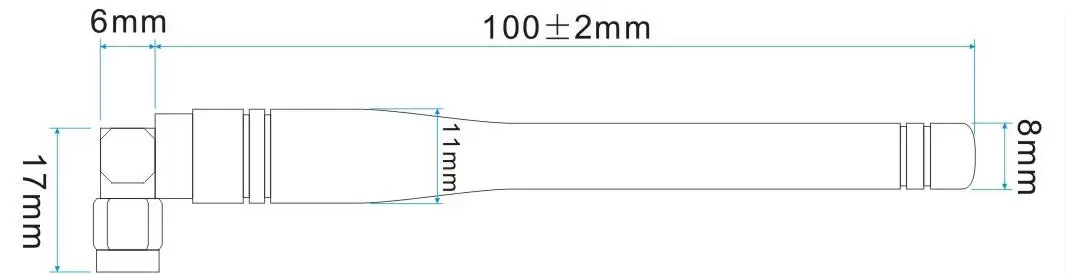

- Height:106 mm
- Interface: SMA-JW
- Lead wire: none
- Antenna Color: black
- Weight: 15 g
| Frequency | 2.4GHz |
| Type | Rod |
| Gain | 3dBi |
| Size (mm) | 100~150 |

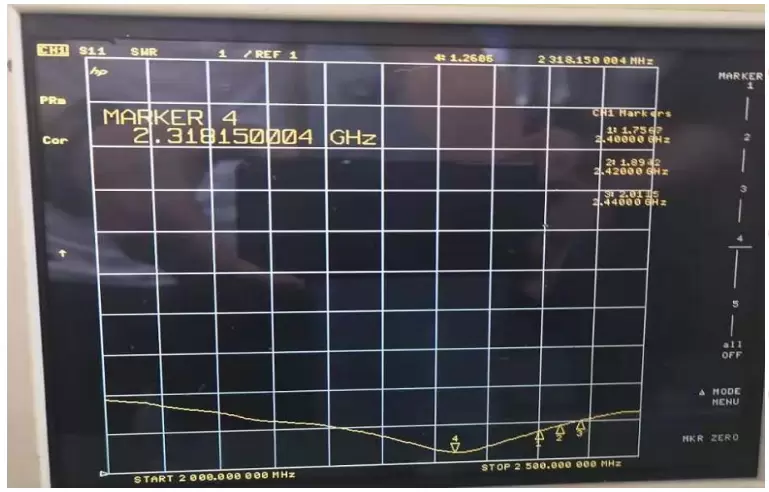

Antennas have been tested under wireless simulated environment by Network Analyzer.
