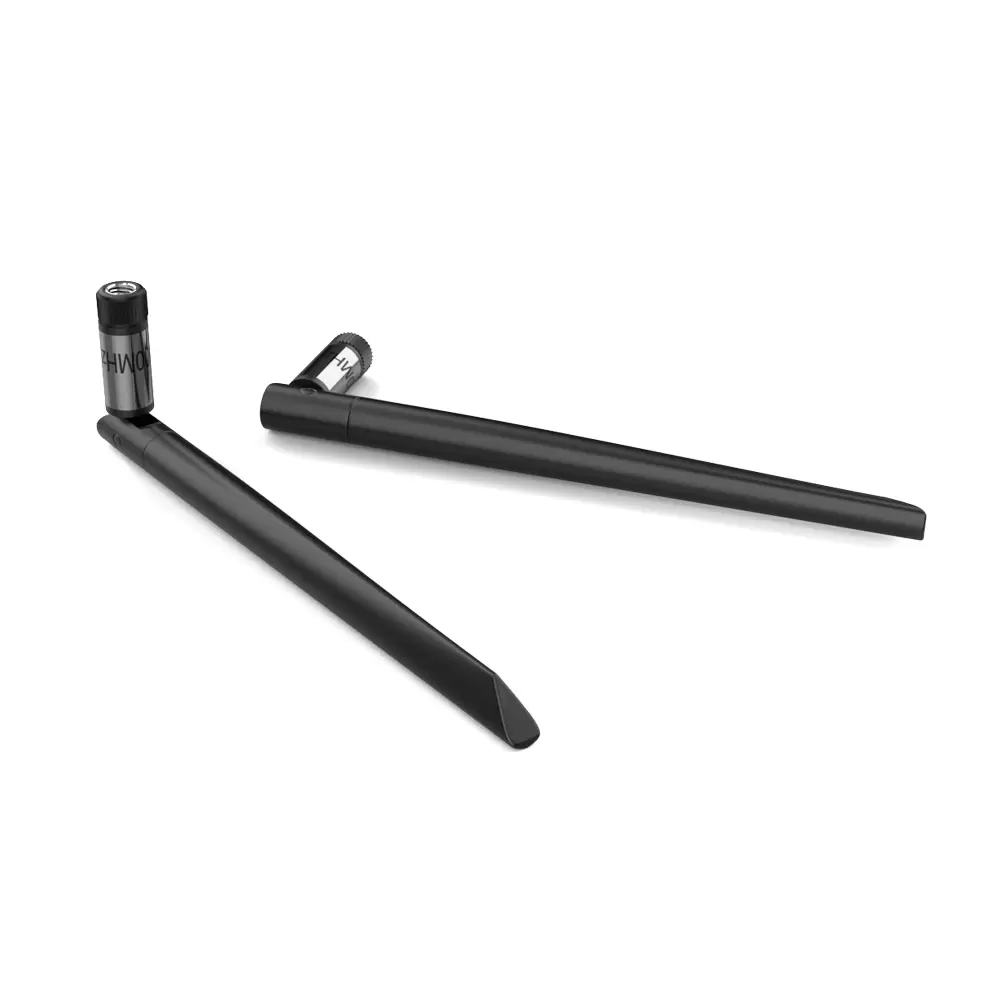

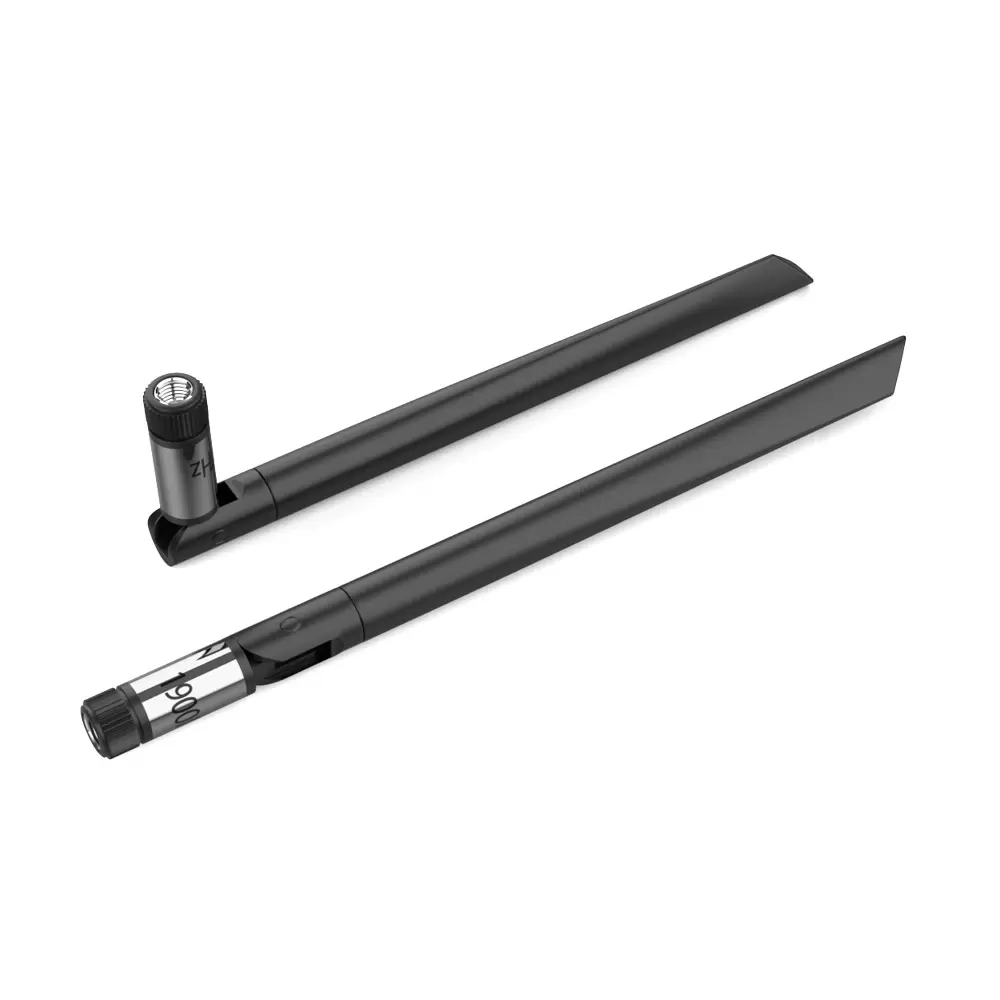

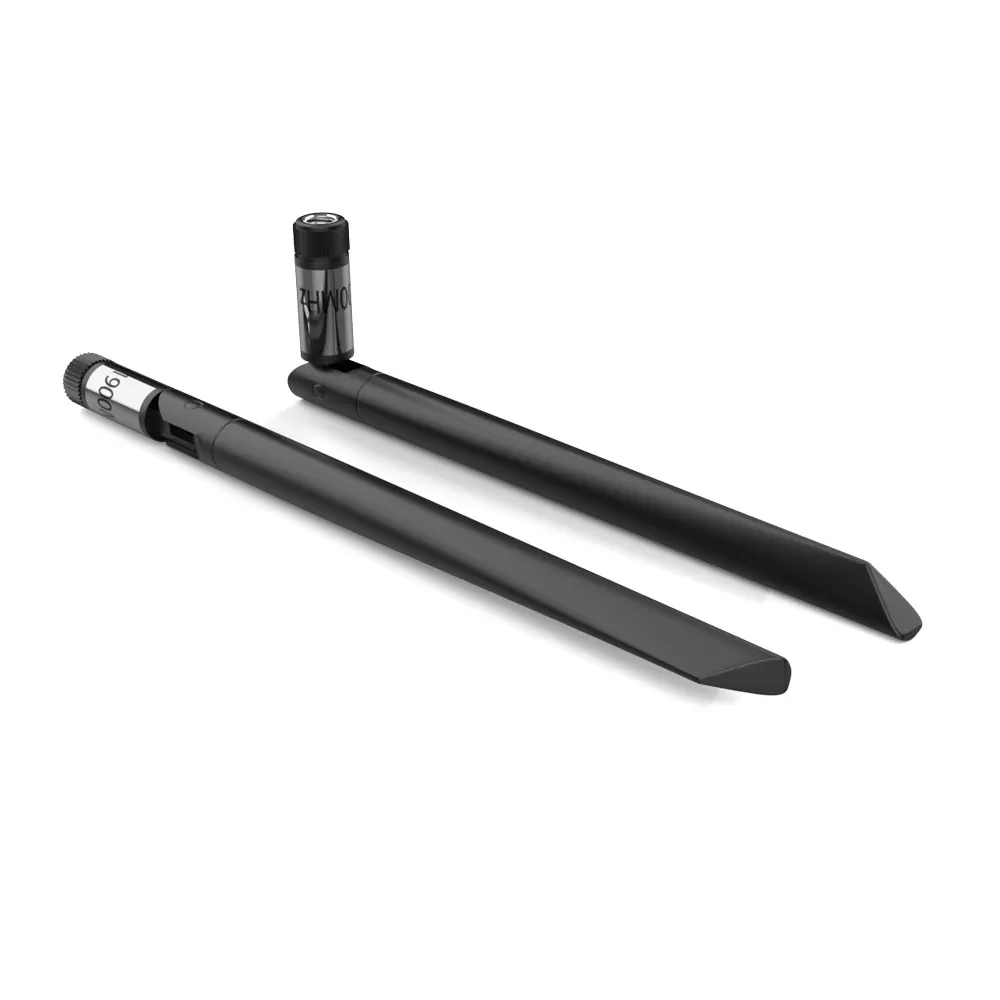

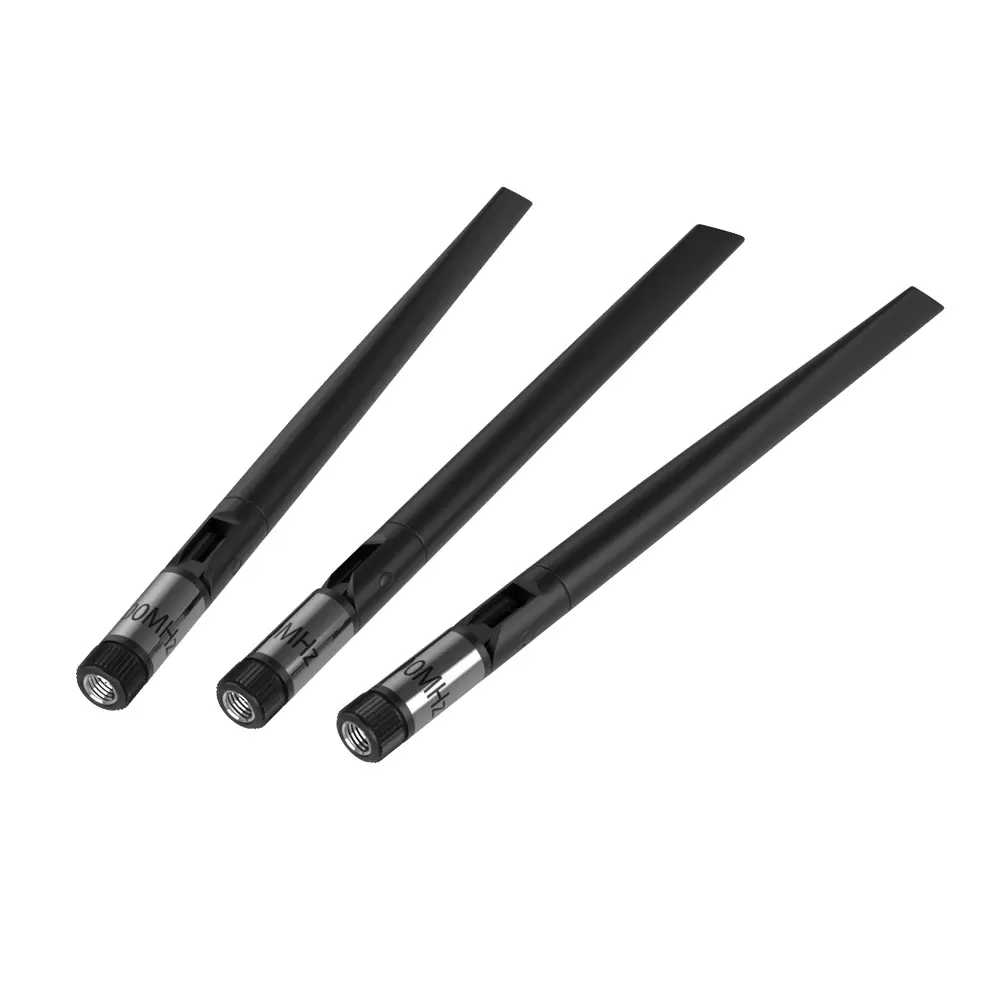

SW1900-ZD200:1.9GHz broadband high-gain folding rod antenna
SW1900-ZD200 is a folding rod antenna customized for 1900MHz wireless communication. It offers excellent SWR performance, is easy to install, and provides stable performance. The antenna also features good vibration resistance and excellent anti-aging capabilities.
Technical Parameter
Frequency Range:1900±500 MHz
VSWR: ≤ 1.5
Gain: 5.0dBi
Input impedance: 50 Ω
Power Capacity: 50 W
Polarization: Vertical
Radiation Direction: Omnidirectional
Height: 200±3 mm
Cable: None
Interface form: SMA-J
Antenna Color: Black
Weight：15 g
Frequency: 1900 MHz, Standing Wave Ratio (SWR): 1.1253
Antennas have been tested under wireless simulated environment by Network Analyzer
