LG1301-SE : LoRaWAN Gateway SX1301 RF Module
Modulation: LoRa
Chip: SX1301
Interface: UART
Output Power: 250mW
Frequency: 433MHz,470MHz,868MHz,915MHz

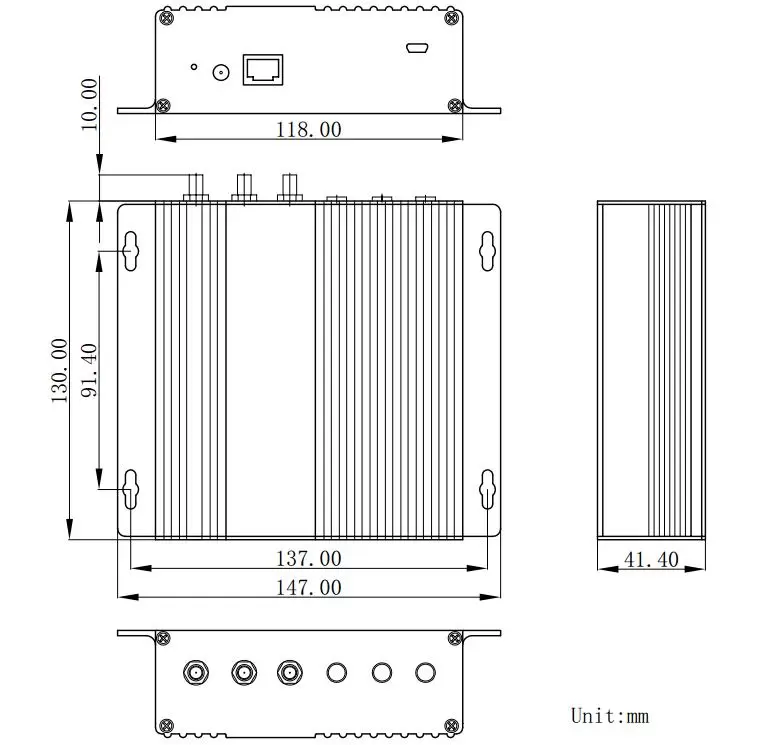

Size (mm):147*130
HOME > PRODUCTS > LORAWAN GATEWAY & NODE > LG1301-PF : LORAWAN GATEWAY TRANSMITTER AND RECEIV...
LG1301-PF : LoRaWAN Gateway Transmitter And Receiver RF Module
- LG1301-PF is the LoRaWAN gateway. It can work with any LoRaWAN node which comply Standard LoRaWAN protocol V1.0.

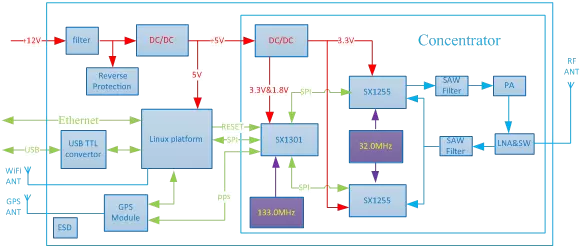

- The gateway use linux platform as host.It mainly consists of concentrator ,GPS module ,WIFI and Ethernet. The GPS module send NMEA frames containing time and geographical coordinates data to the host. The GPS module also output one pulse to the sx1301 per second.
- The gateway receives the RF data from nodes and sends to the server. It also receive data from the server and transmit to the nodes. The gateway connects to the server via Ethernet or WiFi.
| Parameter | Min | Typ. | Max | Unit | Condition | |
| Working Condition | ||||||
| Working voltage range | 5 | 12 | 30 | V | ||
| Temperature voltage | -40 | 85 | ℃ | |||
| Current Consumption | ||||||
| Receiving current | <280 | mA | @12v,9 channels all open | |||
| Transmitting current | <450 | mA | @12v,TX=24dBm | |||
| Parameter | ||||||
| Frequency range | 429 | 433 | 440 | MHz | @433MHz | |
| 470 | 480 | 490 | MHz | @470MHz | ||
| 860.75 | 868.3 | 874.5 | MHz | @868MHz | ||
| 902 | 915 | 928 | MHz | @915MHz | ||
| Output power | 0 | 24 | dBm | |||
| Receiving sensitivity | -133 | dBm | @SF=10,,BW=125kHz | |||
| Interface | Ethernet |
| Chip | SX1301 |
| Frequency | 433MHz,470MHz,868MHz,915MHz |
| Output Power | 250mW |
Features of LoRaWAN Gateway LG1301-PF
- LoRaWAN protocol supported
- Uart interface
- AES128 encryption
- 8 channel communication simultaneously
- Configurable parameters
- GPS support
- Long range
- EU433M / EU868M / KR920M / AS923M / CN780M/ CN470M / US915M / AS915M
Application of LoRaWAN Gateway LG1301-PF
- Smart city
- Smart Metering ( Water, Electric, Gas meter )
- Agricultural Monitoring
- Irrigation control
- Internet of Things (IoT)
- M2M
- Wireless Sensors
- Wireless Alarm and Security Systems
| No. | Definition | Description |
| 1 | SET | Press to enter/exit setting mode |
| 2 | Power input | 9~30V |
| 3 | RJ45 | Connect to the internet |
| 4 | Micro USB | Connect to PC for configuration |
| 5 | Power LED | Green LED, indication of powered on. |
| 6 | GPS LED | Green LED, indication of the GPS module is running. |
| 7 | Status LED | Light on in setting mode, and blinks once per second in normal mode |
| 8 | LoRaWAN ANT | Connected with Antenna for lora RF radio. |
| 9 | WiFi ANT | Connected with Antenna for WiFi. |
| 10 | GPS ANT | Connected with Antenna for GPS module. |
