  • The RF4432 RF transceiver module is designed with Silicon Lab's si4432 chip. The modules have extremely low receiving sensitivity (-121 dBm), plus industry-leading +20 dBm output power to ensure extended range and improve link performance.
  • RF4432 modules use lead-free technology for production and testing strictly, and comply with RoHS and Reach standards.
Parameter Min Typ. Max. Unit Condition
Operation Condition
Working voltage range 1.8 3.3 3.6 V
Temperature voltage -40   85
Current Consumption
RX current   18.5   mA
TX current   85   mA @20dBm
Sleep current   < 1   uA
RF Parameter
      Frequency range       403 433 463 MHz @433MHz
470 490 510 MHz @490MHz
838 868 898 MHz @868MHz
900 915 930 MHz @915MHz
Modulation rate 0.123   256 Kbps FSK
Output power range 1   20 dBm
Receiving sensitivity   -121   dBm @Data rate=1.2Kbps
Modulation (G)FSK
Chip si4432
Frequency 315MHz,433MHz,470MHz,868MHz,915MHz
Output Power 100mW
Interface SPI

Features of RF transceiver module RF4432

  • Frequency Range:315/433/490/868/915MHz(customizable 240-930MHz)
  • Sensitivity up to -121dBm
  • Maximum output power:20dBm
  • Data transfer rate:0.123-256Kbps
  • FSK, GFSK&OOK Modulation mode
  • 1.8-3.6 V Power supply
  • Ultra-low consumption shutdown mode
  • Digital received signal strength indicator(RSSI)
  • Timed wake-up function
  • Antenna automatic matching and two-way switch control
  • Configurable data packet structure
  • Preamble detection
  • 64 bytes send and receive data register(FiFo)
  • Low power detection
  • Temperature sensor and 8-bit analog-to-digital converters
  • Operating Temperature Range:-40 ~ +85°C
  • Integrated voltage regulator
  • Frequency hopping
  • Power-on reset function
  • Built-in crystal adjustment function
  • 30mA@+13dBm(Transmit)

Applications of RF transceiver module RF4432

  • remote control
  • Remote meter reading
  • Home security alarm
  • Personal data record
  • Toys control
  • Industrial control
  • Sensor network
  • Tire pressure monitoring
  • Health monitoring
  • Wireless PC peripherals
  • Tag reading and writing
  • Home automation remote sensing

Typical Application Circuit of RF transceiver module RF4432

Pins of RF transceiver module RF4432



Pin NO. Pin Name Description
1 GND Power ground
2 GPIO0 The control pin of the transmitter switch is connected inside the module
3 GPIO1 The control pin of the transmitter switch is connected inside the module
4 GPIO2 Connect directly to the GPIO2 pin of the chip
5 VCC Positive power supply 3.3V
6 SDO 0~VDD V digital output, provides serial readback function to internal control register.
7 SDI Serial data input. 0~VDD V digital input. This pin is a 4-wire serial data serial data stream bus.
8 SCLK Serial clock input. 0~VDD V digital input. This pin provides a 4-wire serial data clock function.
9 nSEL Serial interface select input pin. 0~VDD V digital input. This pin provides select/enable function for 4-wire serial data bus. This signal is also used to indicate burst read/write mode.
10 nIRQ Interrupt output
11 SDN Chip enable pin. 0~VDD V digital input. SDN=0 in all modes except shutdown mode. When SDN=1, the chip will be completely shut down and the contents of the register will be lost.
12 GND Power ground
13 GND Power ground
14 ANT Connect with 50 ohm coaxial antenna

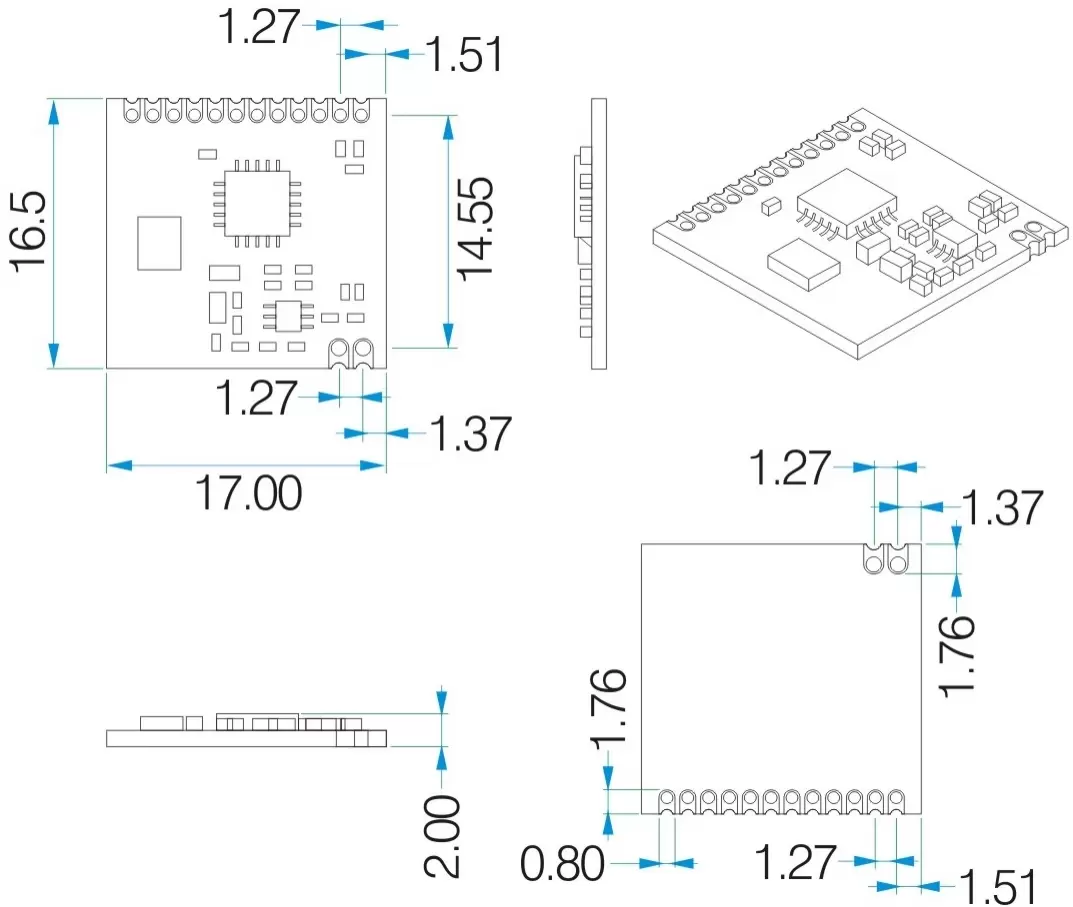

Mechanical Dimensions of RF transceiver module RF4432
