RF2401F27 : nRF24L01+ 2.4GHz 400mW Transmitter And Receiver Module With Original Nordic

RF2401F27 : nRF24L01+ 2.4GHz 400mW Transmitter And Receiver Module With Original Nordic

RF2401F27 is a 2.4 GHz transmitter and receiver module. RF2401F27 adopts Nordic’s original RF chip nRF24L01+ and high-efficiency RF amplifier. The feature of high data rate (maximum 2Mbps ), good sensitivity （-102 dBm） and high output power ( +26dBm ) but low harmonic and low unexpected radiation extend the range and improve the link performance. It complied with and passed ROHS certification.

DOWNLOAD

Parameter	Min.	Type.	Max.	Unit	Conditions
Operation Conditions
Operating voltage range	2.0	5	5.5	V
Operating temperature range	-40		85	℃
Current Consumption
RX Current		<19		mA
TX Current		400	450	mA	@Vcc=5V,26dBm,2400MHz
Sleep Current		<7		uA
RF Parameters
Frequency range	2400		2525	MHz
Data rate	250		2000	Kbps	GFSK
Output power	10		26	dBm	Power 0=10dBm,1=18dBm, 2=23dBm,3=26dBm
Maximum output power	25	26	26.5	dBm	@VCC=5V
RX sensitivity	-100	-102		dBm	@data=250kbps

Modulation	(G)FSK
Chip	nRF24L01+
Frequency	2.4GHz
Output Power	400mW
Interface	SPI

Features of 2.4 GHz transmitter and receiver RF2401F27

Frequency Range：2400-2525MHz
Maximum power output: 26dBm
Sensitivity up to: -102dBm@250Kpbs
Data rate:250K,1Mpbs,2Mpbs
GFSK Modulation, 126 Channel
FiFo: 32bytes
Ultra low power off mode
Support functions of frequency hopping
Timing wake-up function
Internal integrated voltage regulator
Operating voltage range: 3.3-5.0V
Operating temperature range: -40~+85°C

Applications of 2.4 GHz transmitter and receiver RF2401F27

Wireless remote control
Smart Home
Toy control
Tire Pressure Monitoring
health monitoring
Tag reader

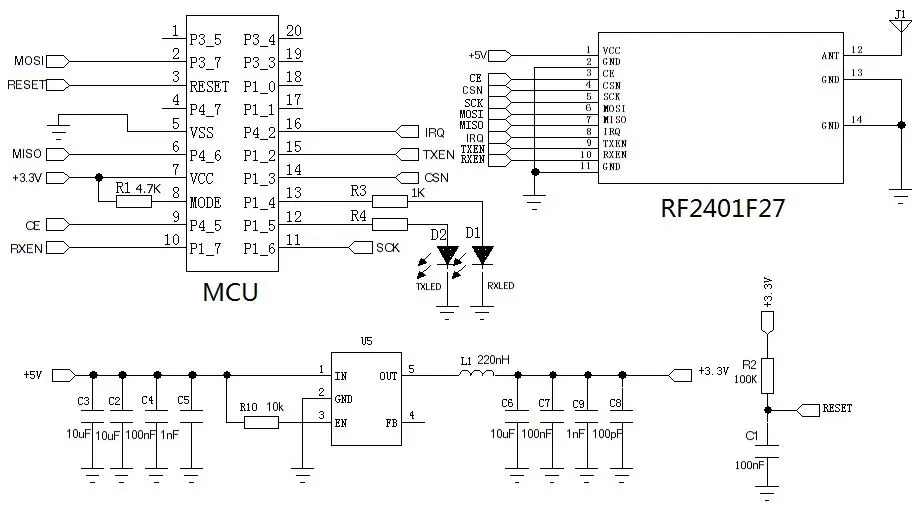

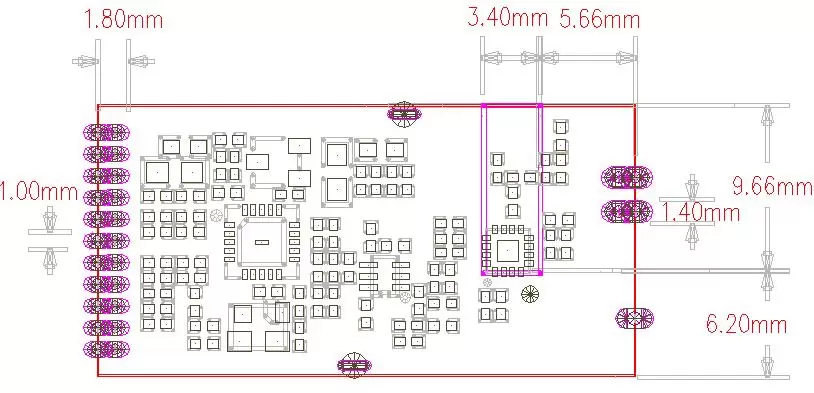

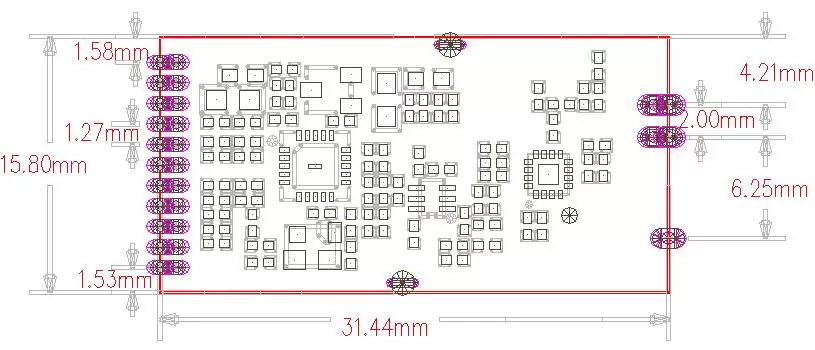

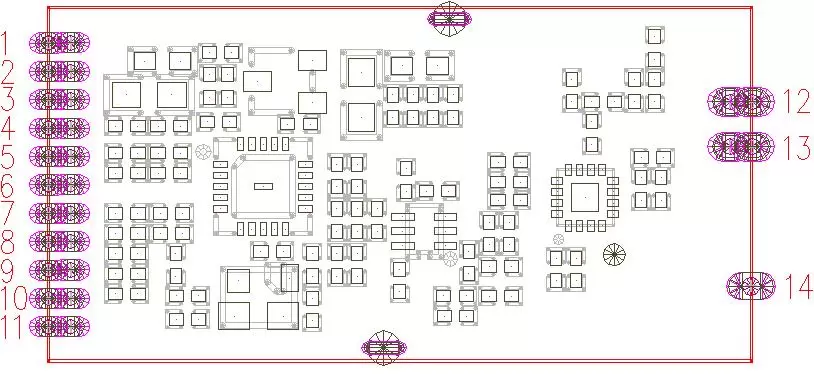

Pin No.	Pin Definitions	Description
1	VCC	Connect to VCC（2.0-5.5V）
2	GND	Connect to power ground
3	CE	Chip enable
4	CSN	CSN of SPI interface
5	SCK	SCK or SPI interface
6	MOSI	MOSI of SPI interface
7	MISO	MISO of SPI interface
8	IRQ	Interrupt output, active low
9	TXEN	Transmit enable PIN，TX=high level,RX=Low level
10	RXEN	Receive enable PIN，RX=high level,TX=Low level
12	ANT	Connect 50ohm coaxial antenna
13	GND	Connect antenna ground
11. 14	GND	Connect to ground
