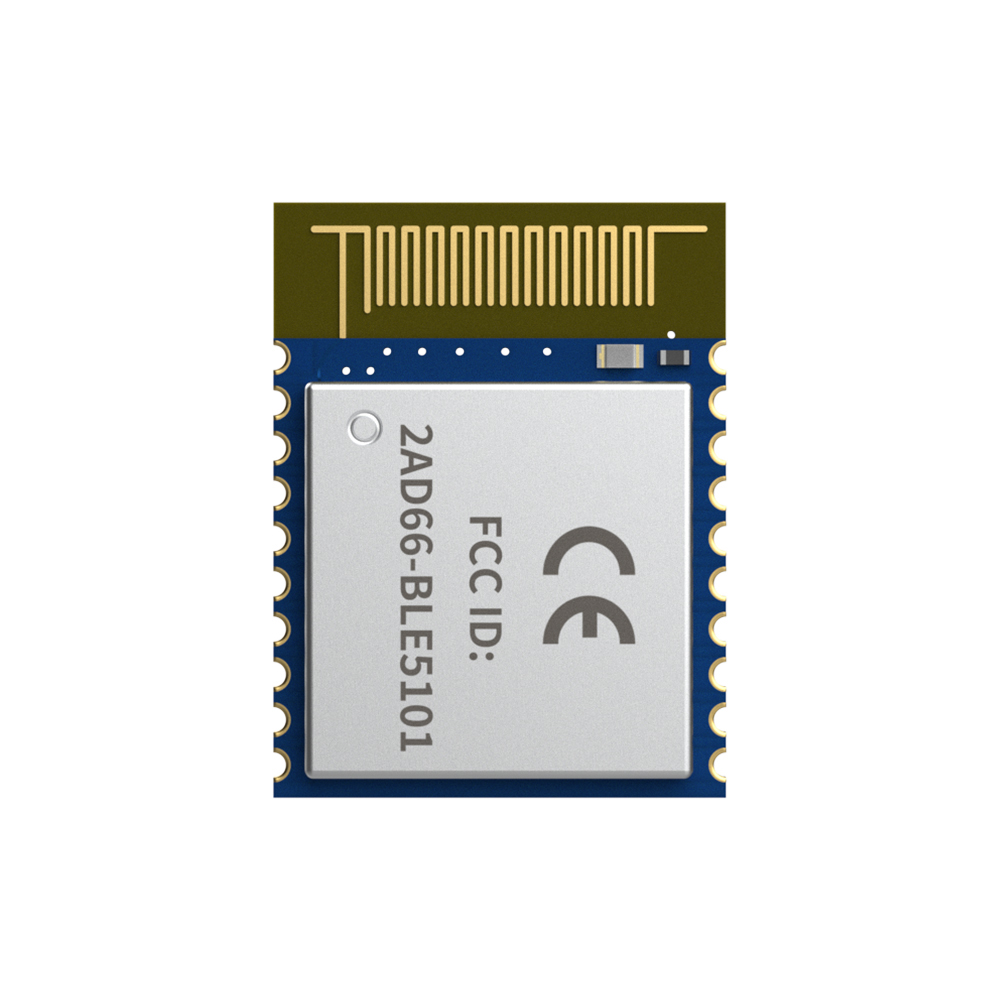

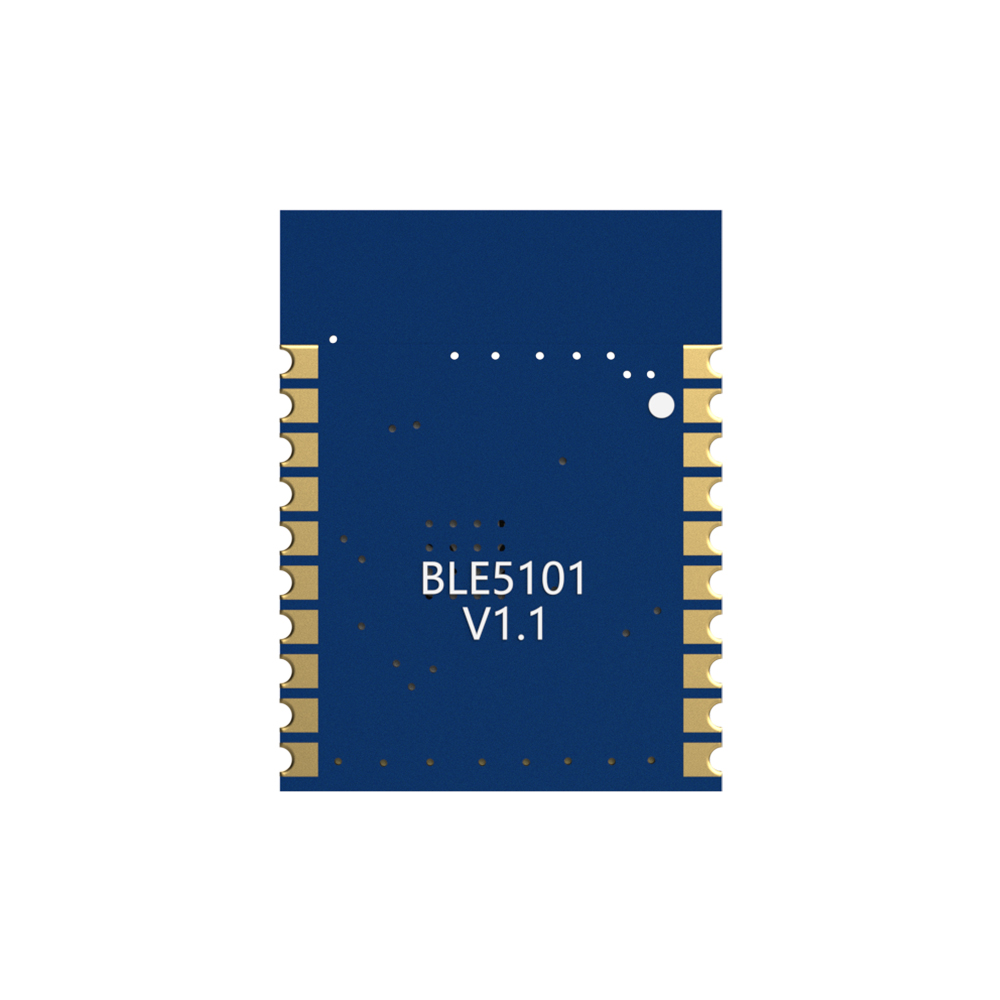

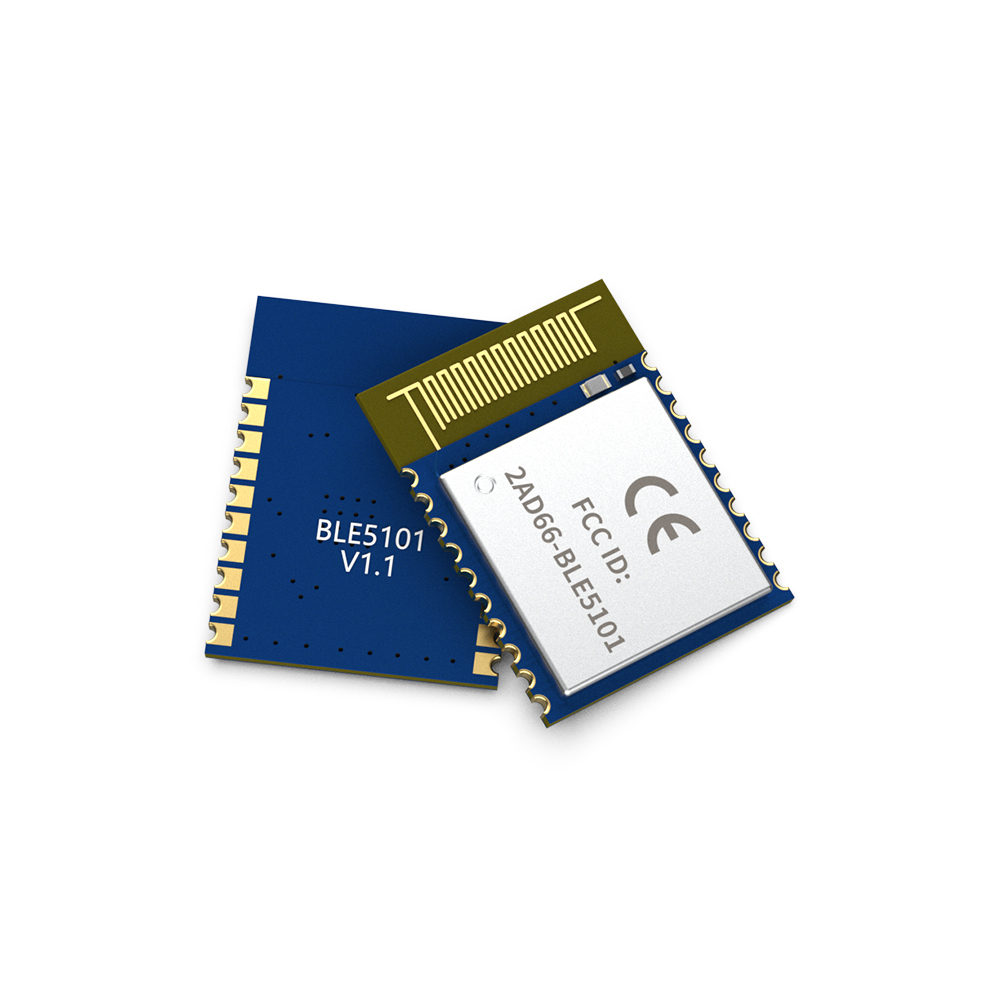

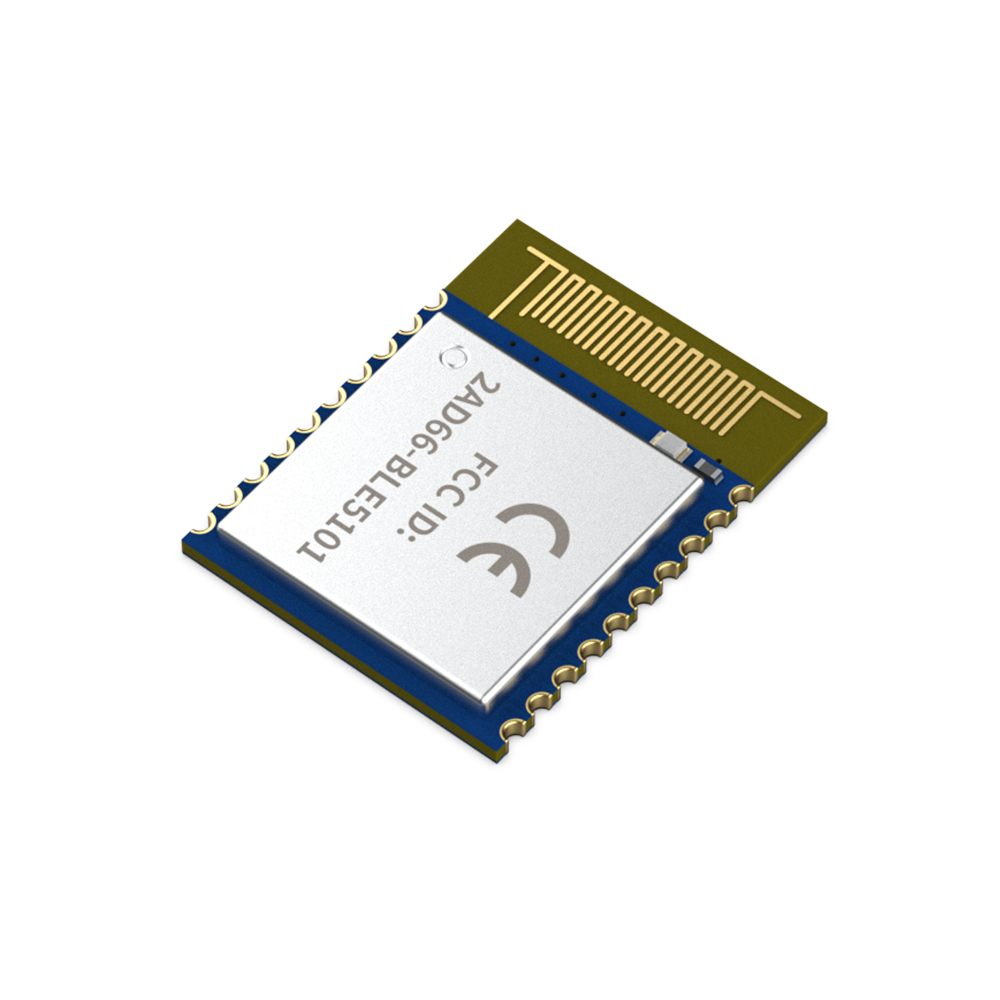

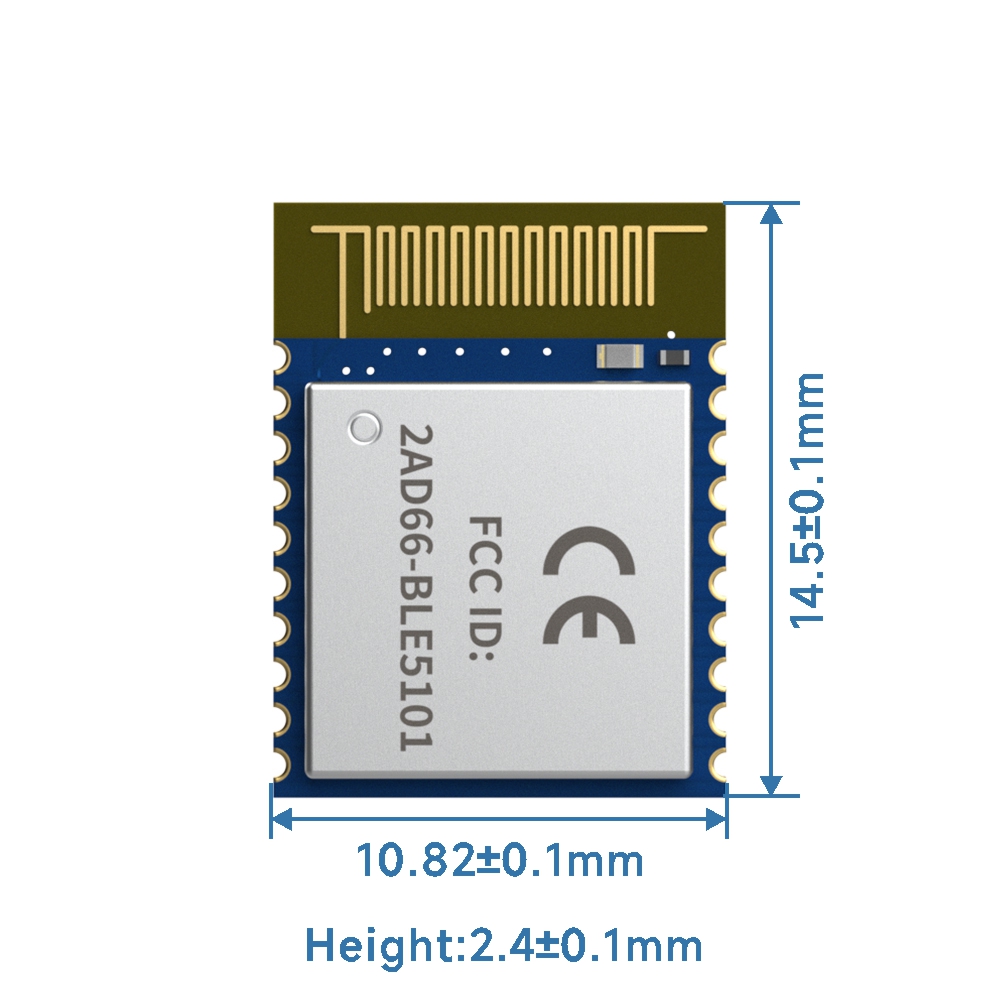

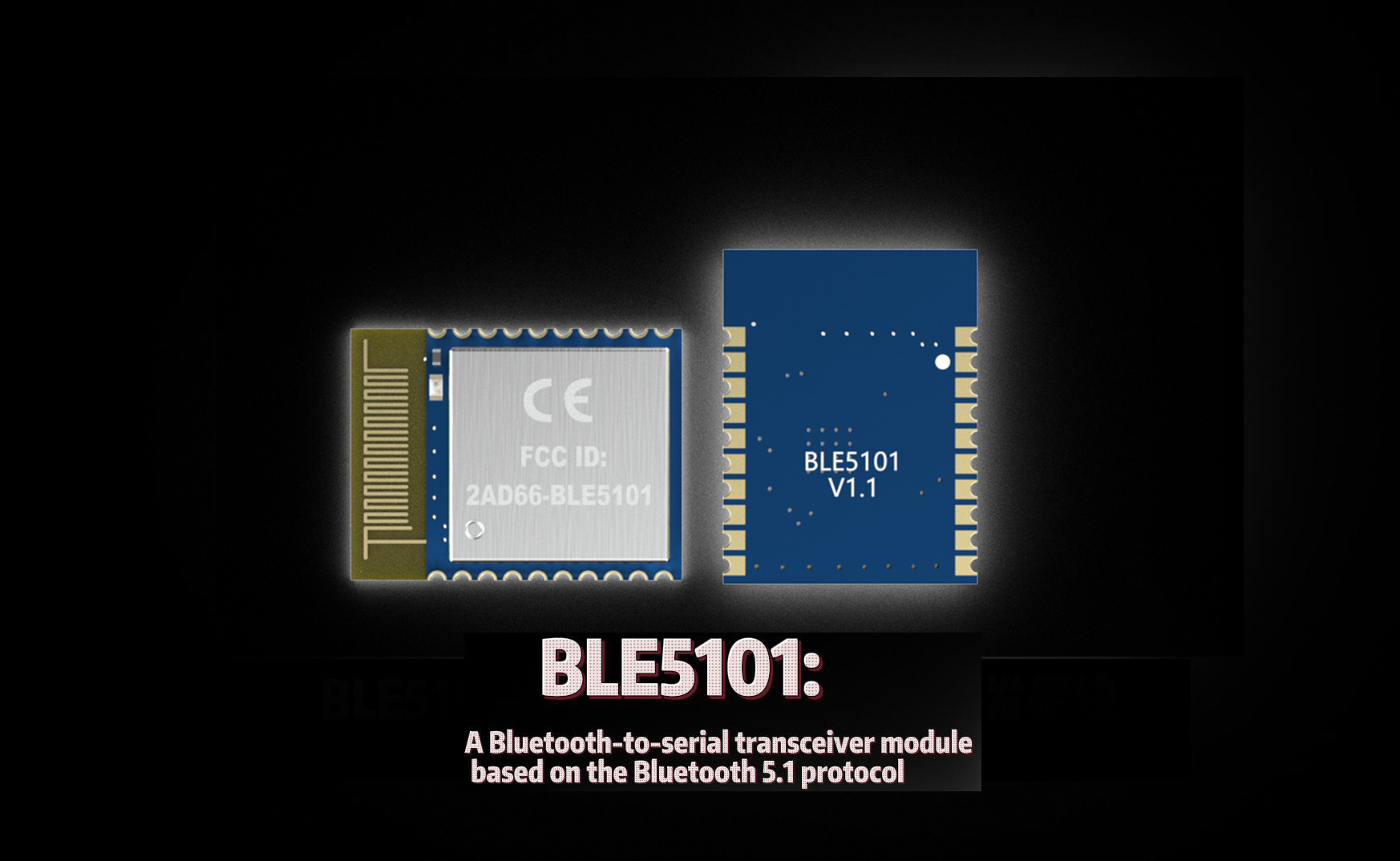

BLE5101 : CE-RED & FCC ID Certified BLE Module BLE 5.1

BLE5101 is a BLE module based on BLE 5.1 Protocol, coexistence of master and slave roles, small size, low power consumption, and the working signal frequency band is 2.4GHz.
The BLE5101 module is developed by Shenzhen NiceRF Wireless Technology Co., Ltd. The module supports the coexistence of master and slave roles, can connect to the master and slave at the same time, and can flexibly set the number of master and slave connections, and can support up to 20 connections. Maximum support for data transmission at 115200bps baud rate. The module uses AT commands to set parameters, and the operation is simple and easy to use. In addition, BLE5101 also has BLE Mesh function, which can be used with other modules to achieve mesh networking. Modules can be widely used in smart wear, smart home, automobiles, lighting, smart automation data collection, smart control, wireless sensing, electronic tags and other scenarios.
BLE5101 strictly uses lead-free technology for production and testing, and meets RoHS and Reach standards.
BLE module BLE5101 has obtained CE-RED and FCC ID certification.

Download

Parameter	Min.	Typ.	Max.	Unit	Condition
Operation Conditions
Working voltage range	1.71	3.3	4.3	V
Operating temperature range	-40		60	℃
Current Consumption
Receive current		7.1		mA
Emission current		7.4		mA
Sleep current		< 7.5		uA
Idle current		< 6.58		mA	Idle state: refers to no connection, no broadcasting/scanning of the module
RF Parameter
Frequency Range	2400		2483.5	MHz
Transmit power	-16		10	dBm
Receiving sensitivity		-95		dBm

Type	Bluetooth
Certification	CE-RED, FCC ID

Features of BLE module BLE5101

Support Bluetooth BLE 5.1 protocol
Support the coexistence of master and slave roles, and can connect multiple masters and slaves at the same time, up to 20 connections
Support 2 working modes of configuration and transparent transmission
Support over-the-air upgrade (OTA DFU)
Support multiple serial port parameter configuration
Support custom 16-bit UUID, including one Service UUID and two Characteristic UUID, which can be flexibly configured and compatible with similar BLE products
Support manual connection and automatic connection 2 connection methods
The maximum MTU is 247 bytes
Support custom 16-bit UUID, including one Service UUID and two Characteristic UUID
Maximum communication distance 150m (10dBm, 1Mbps)
Support custom modification of the local mac address
Support mac address binding, up to 8 devices (regardless of master and slave)
Support low power sleep

A circuit diagram is recommended(Use most of the hardware features):

Circuit diagrams of BLE Module BLE5101

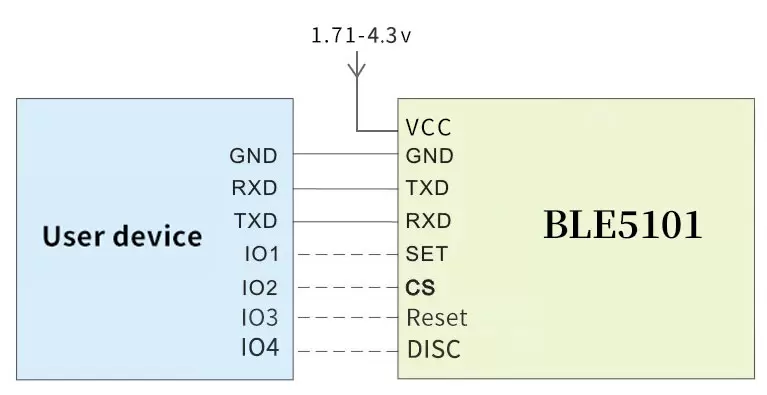

Minimum application circuit diagram (Only the serial port function is used):

Circuit diagrams of BLE Module BLE5101

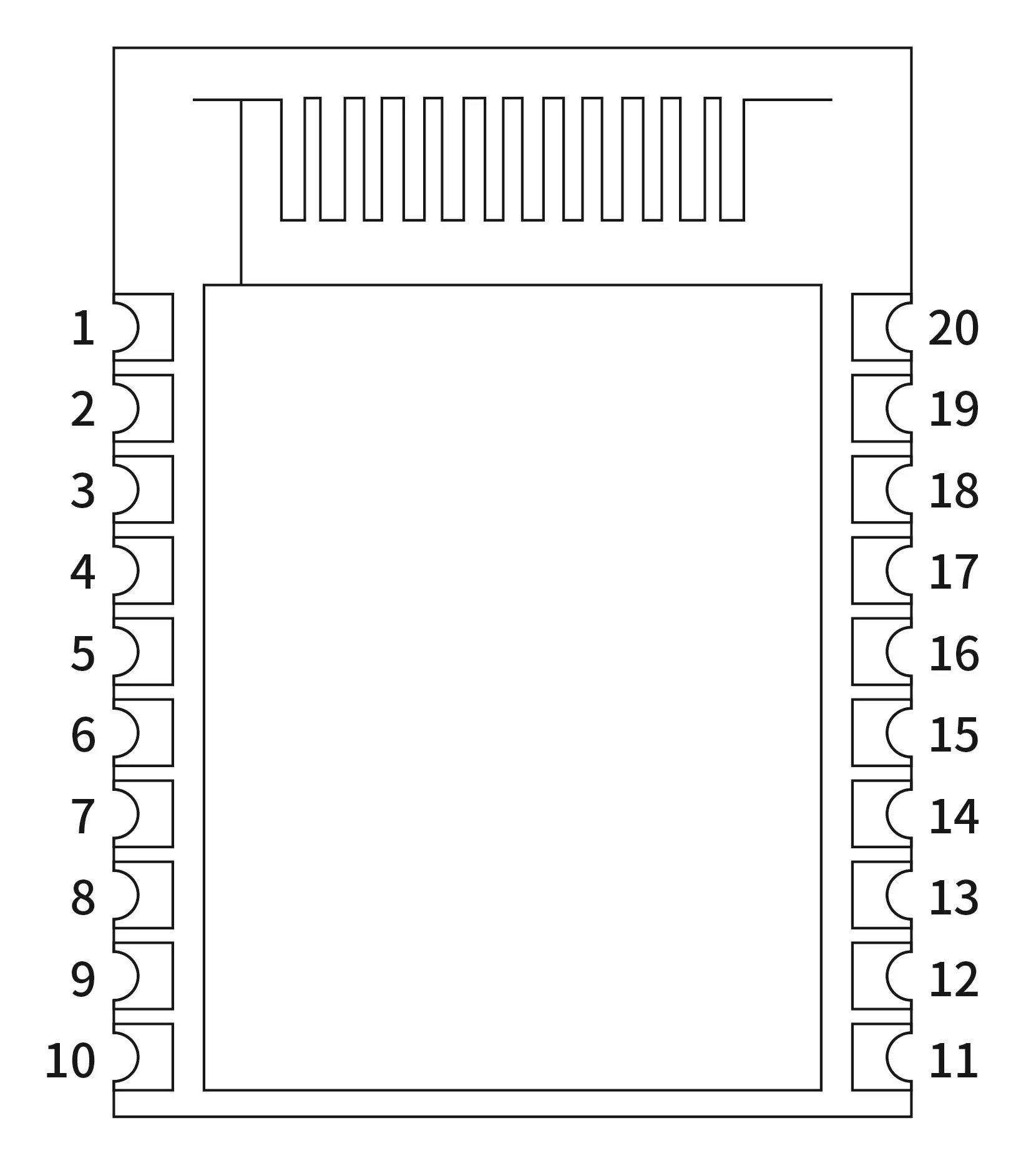

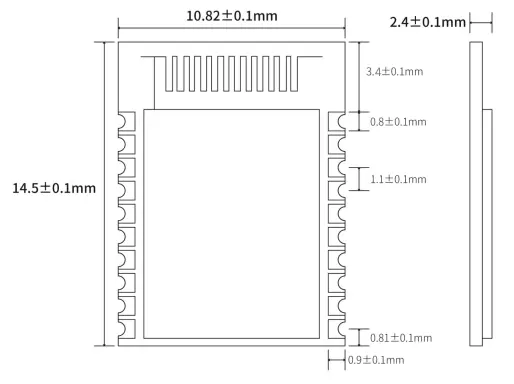

Pins of BLE module BLE5101

Pin NO.	Pin name	I/O	Pin function	Description
1, 9	GND		GND	Power ground
2	NC			Dangling feet
3	SWCLK		SWCLK/GPIO	Connect to internal IO, used to burn program, it can be used as normal IO when running
4	SWDIO		SWDIO/GPIO	Connect to internal IO, used to burn program, it can be used as normal IO when running
5	PA0	I	CS	Module sleep pin CS (low level work, high level sleep, default high level)
6	PA1	I	SET	Module configuration pin SET (high level during normal communication, enter configuration mode when SET pin is pulled low, default high level)
7	PD5	O	USART1_TX	Module serial data transmission pin TXD (level voltage is up to 3.3V)
8	PD4	I	USART1_RX	Module serial data receiving pin RXD (level voltage up to 3.3V)
10	VCC		VCC	Connect to the positive pole of the power supply (1.71-4.3V)
11	PD7	O	CS_DE	Sleep status indicator pin (low level when sleeping, high level when working)
12	RESET	I	RESET	Module reset pin, high level reset, there is a pull-down resistor inside.
13	PD6	O	MODE_DE	Working status indicator pin (high-level output is advertise state, low-level output is non-advertise state)
14	PC5	I/O	PC5	GPIO
15	PA3	I/O	PA3	Debug_TX
16	PA2	I/O	PA2	Debug_RX
17	PA7	I	DISC	Bluetooth connection enable pin, pull down to disconnect Bluetooth connection, default high level
18	PA6	I/O	PA6	GPIO
19	PA4	I/O	PA4	GPIO
20	PA5	O	SET_DE	High level = Transparent transmission mode Low level = AT configuration mode
