STP101M : Pulse Output for Wrist Application 3D Pedometer Module

STP101M : Pulse Output for Wrist Application 3D Pedometer Module

STP101M : Pulse Output for Wrist Application 3D Pedometer Module

STP101M : Pulse Output for Wrist Application 3D Pedometer Module

STP101M : Pulse Output for Wrist Application 3D Pedometer Module

STP101M : Pulse Output for Wrist Application 3D Pedometer Module

STP101M : Pulse Output for Wrist Application 3D Pedometer Module

STP101M : Pulse Output for Wrist Application 3D Pedometer Module

STP101M : Pulse Output for Wrist Application 3D Pedometer Module

STP101M : Pulse Output for Wrist Application 3D Pedometer Module

STP101M : Pulse Output for Wrist Application 3D Pedometer Module

STP101M : Pulse Output for Wrist Application 3D Pedometer Module

STP101M : Pulse Output for Wrist Application 3D Pedometer Module

STP101M is a 3D pedometer module with functional chipset which include a G-sensor and MCU. It has adopted the impulse-type interface, with the 3D MEMS sensor (G sensor) and high precision of 3D pedometer algorithm, it can give a precisely pedometer in any direction. This module has the characteristics of small volume, low power and etc. The simple digital interface ensures it can be easily embedded in various kinds of pedometer functional system.
★Note:The algorithm of our pedometer is adjustable according to customer’s requirement. We can provide the pedometer for shoes, table class pedometer and bracelet pedomet er wearing on wrist, pedometer wearing on waist and pedometer putting inside the pocket. Pls indicate clearly when purchasing.

Contact us

DOWNLOAD

Parameters	Condition		Performance		Unit
Parameters	Condition	Min.	Typ.	Max.	Unit
Working voltage		2.3	3	3.6	v
Working current	@3V		< 25		uA
Sleep current			< 4		uA
Step resolution			1		Step
Pedometer wrror	Uniform Working		± 3%		Step
Working temperature		-10		50	℃
Storage temperature		-10		50	℃

Special Function	Pedometer module

Features of 3D Pedometer Module STP101M

High precision 3D pedometer algorithm
Pulse output interface
Low sleep current
Ultra-small size

Applications of 3D Pedometer Module STP101M

3D pedometer
MP3 pedometer
Pedometer shoes
Outdoor handheld
Healthcare products

Pins of 3D Pedometer Module STP101M 图片.png

Pin NO.	Pin name	Description
1	GND	Connect ground
2	GND	Connect ground
3	VCC	Connect positive power（2.3-3.6V）
4	GND	Connect ground
5	STEP	Pulse-output pin

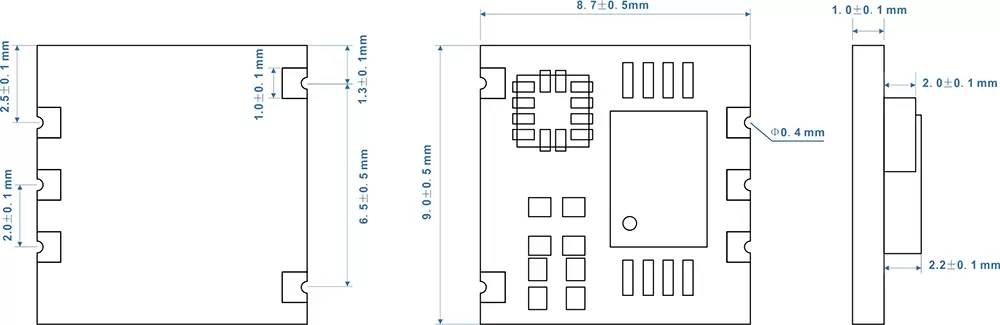

Mechanical Dimensions of 3D Pedometer Module STP101M 图片.png
